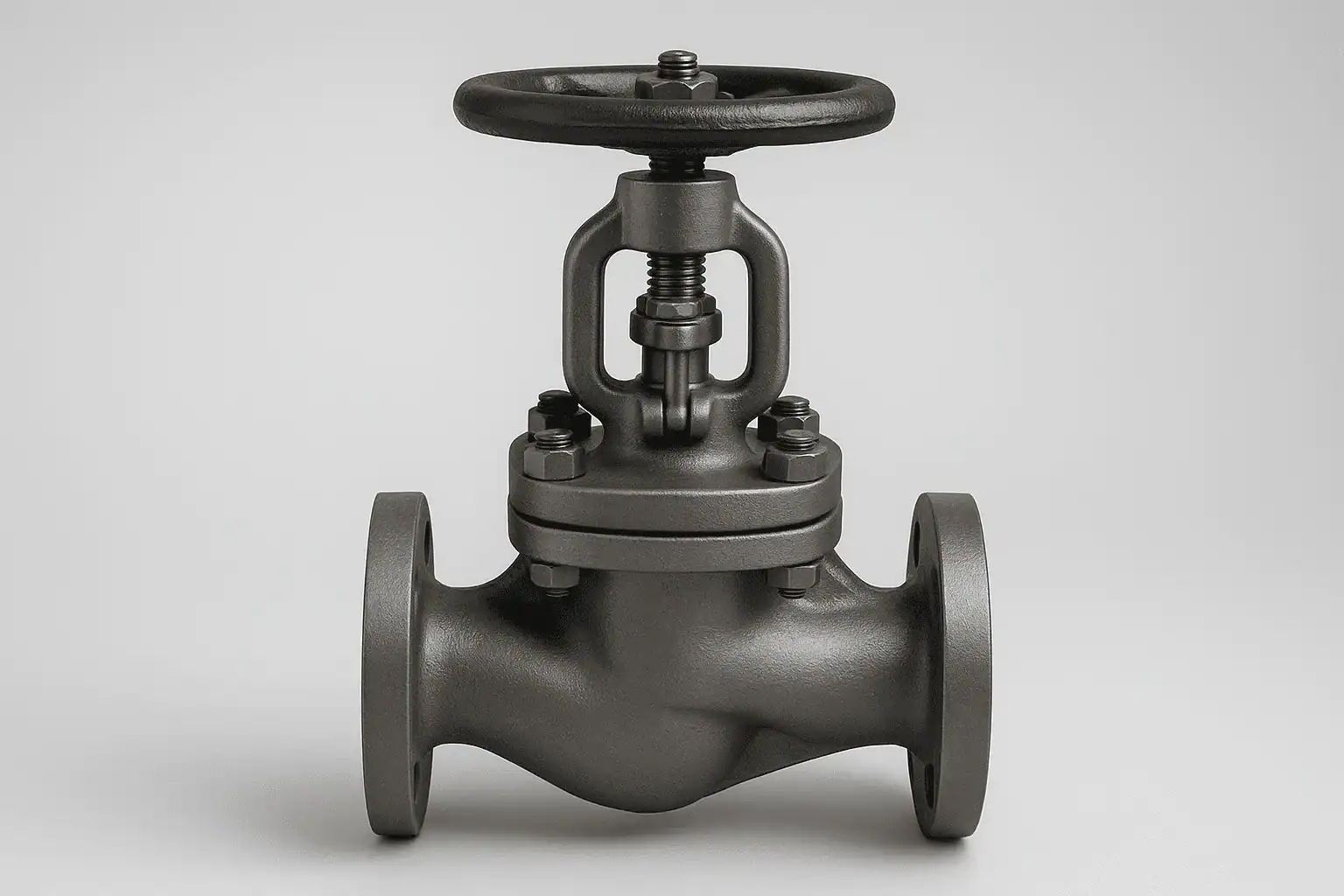

Industrial Forged Globe Valve Supplier
A forged globe valve is a compact high pressure valve designed for precise throttling and dependable shut-off in demanding industrial systems. Compared with cast globe valves, forged globe valves offer higher structural strength, enhanced pressure resistance, and more reliable performance in small bore piping applications.
As a professional forged globe valve manufacturer, Wenzhou Zoncic Machinery Technology Co., Ltd supplies a complete range of forged globe valves for high pressure, high temperature, and severe service conditions. Our products are widely used in oil and gas, petrochemical, refinery, steam systems, and power plant projects, and are available in materials such as A105, LF2, F11, F22, F304, F316, and other forged steel options.
- ✔ Compact forged steel construction for high pressure applications
- ✔ Suitable for severe service, steam, oil, gas, and chemical systems
- ✔ Available in threaded, socket weld, butt weld, and flanged ends
- ✔ Manufactured according to API, ASME, and project specifications
Key Features of Forged Globe Valves
Engineered for compact installation, high pressure performance, and reliable shut-off in critical industrial services.
High Pressure Performance
Forged globe valves are designed for Class 800, 1500, and 2500 service where high pressure resistance is essential.
Compact Structure
The forged body design is ideal for small bore piping systems and installations with limited space.
Reliable Shut-Off
Precision disc and seat design provides dependable sealing performance in critical oil, gas, and steam applications.
Severe Service Capability
Suitable for high temperature, high pressure, and demanding industrial process conditions.
Multiple End Connections
Available in threaded, socket weld, butt weld, and flanged designs to match different piping requirements.
Long Service Life
Forged steel construction and precision machining improve durability and reduce maintenance frequency.

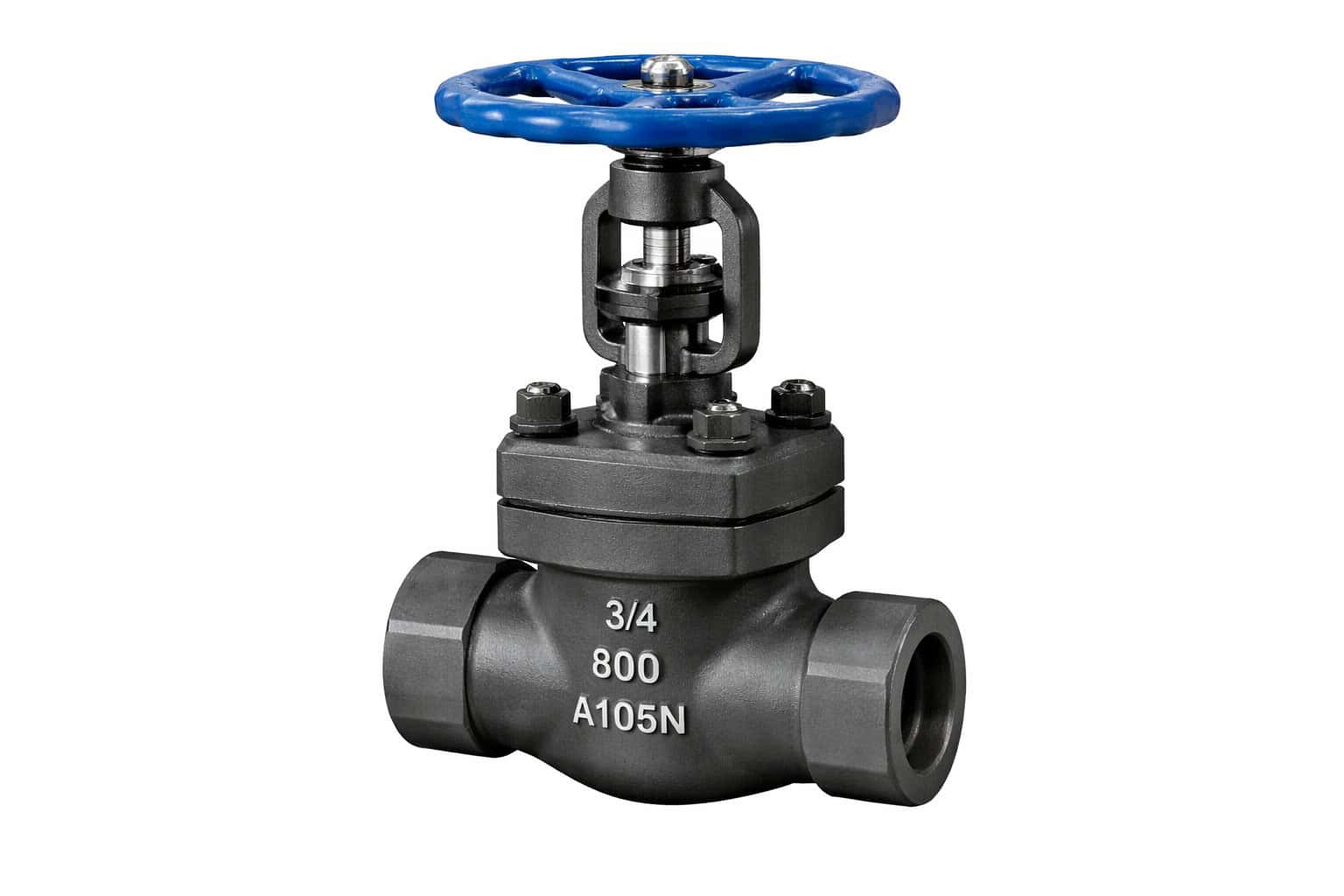

Forged Globe Valve Technical Specifications
Our forged globe valves are manufactured to meet international industrial standards and project requirements.
| Item | Description |
|---|---|
| Product Name | Forged Globe Valve |
| Size Range | 1/4″ – 2″ |
| Pressure Rating | Class 800 / 1500 / 2500 |
| Body Material | A105, LF2, F11, F22, F304, F316, F304L, F316L, Alloy Steel |
| Connection Type | NPT Threaded, Socket Weld, Butt Weld, Flanged |
| Operation | Handwheel, Gear Operated, Electric Actuated |
| Design Standard | API 602, ASME B16.34, BS 5352 |
| Face to Face | Manufacturer Standard / ASME B16.10 where applicable |
| End Connection Standard | ASME B1.20.1, ASME B16.11, ASME B16.25, ASME B16.5 |
| Inspection & Testing | API 598, MSS SP-61 |
| Applicable Media | Steam, Oil, Gas, Water, Chemical Media |
| Temperature Range | -46°C to 600°C |
Main Parts and Materials
Material selection can be customized according to service pressure, temperature, media type, and project specifications.
| Part Name | Material Option |
|---|---|
| Body | A105 / LF2 / F11 / F22 / F304 / F316 / Alloy Steel |
| Bonnet | Same as Body Material |
| Disc | 13Cr / SS304 / SS316 / STL Overlay |
| Stem | F6a / SS410 / SS304 / SS316 / 17-4PH |
| Seat | 13Cr / SS304 / SS316 / Stellite |
| Back Seat | 13Cr / SS304 / SS316 |
| Gasket | Graphite / Spiral Wound Gasket / Stainless Steel + Graphite |
| Packing | Flexible Graphite / PTFE |
| Handwheel | Carbon Steel / Ductile Iron / Cast Steel |
| Bolting | B7 / B8 / B8M / L7 |
Forged Globe Valve Applications
Forged globe valves are widely used in critical piping systems that require compact design, high strength, and reliable shut-off.
Oil & Gas
Used in small bore process lines, control points, and high pressure service in upstream and downstream systems.
Petrochemical
Suitable for hydrocarbon, steam, and chemical transfer systems where compact high pressure valves are required.
Refinery Units
Reliable for severe service lines with elevated temperature, pressure, and strict shut-off requirements.
Power Generation
Used in boiler, steam, condensate, and auxiliary systems requiring forged construction and compact design.
Chemical Processing
Suitable for demanding chemical lines where durable materials and stable throttling performance are important.
Steam Systems
Commonly applied in high pressure steam pipelines for shut-off and precise flow control.
Quality Assurance, Testing, Packing & Delivery
Every forged globe valve is manufactured and tested under strict quality control procedures to ensure stable performance.
Inspection & Testing
- Hydrostatic Shell Test
- Seat Leakage Test
- Air / Pneumatic Leakage Test
- PMI Testing for material verification
- Dimensional Inspection and Visual Check
- NDE options available upon request

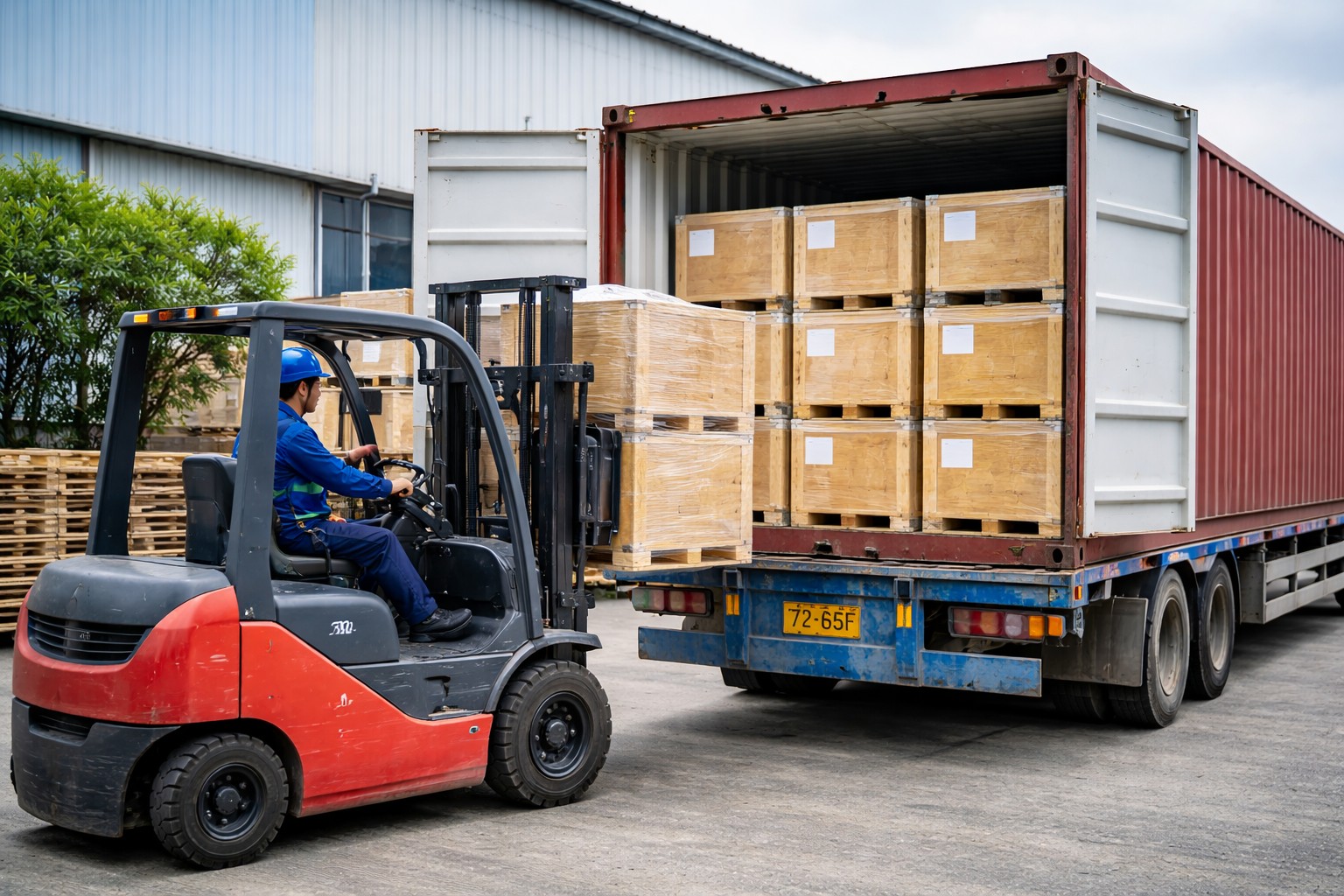

Packing & Delivery
- Export standard plywood or wooden case packing
- Anti-rust oil protection for forged body and machined surfaces
- Clear product marking and traceability labels
- Suitable for sea freight, air freight, and project shipment
- Fast delivery time for standard and customized orders
- OEM brand marking and packing support available
Why Choose Zoncic Forged Globe Valves
We supply reliable forged globe valve solutions with stable quality, professional service, and export-oriented project support.
Professional Manufacturer
Rich experience in industrial forged valve manufacturing for global export and project supply.
International Standards
Products supplied according to API, ASME, and project-specific requirements for industrial systems.
Strict Quality Control
Comprehensive inspection, testing, and traceability procedures are applied to each forged globe valve order.
OEM & Fast Delivery
Support for OEM branding, customized production, and quick delivery for standard and project orders.
Frequently Asked Questions About Forged Globe Valves
This FAQ section improves user experience and supports long-tail SEO ranking.
Forged Globe Valve Manufacturer for High Pressure Industrial Projects
If you are looking for a reliable forged globe valve manufacturer, Zoncic can provide high quality forged globe valves for a wide range of industrial applications. Our forged steel globe valves are widely used in oil and gas, petrochemical, refinery, power generation, and steam systems where compact design and high pressure resistance are essential.
We can supply A105 forged globe valves, stainless steel forged globe valves, and customized forged valves in special materials according to project requirements. Manufactured to international standards such as API 602, ASME B16.34, and BS 5352, our products are designed for reliable shut-off, accurate throttling, and long service life in demanding industrial conditions.
Request Your Forged Globe Valve Quote Today
Contact Wenzhou Zoncic Machinery Technology Co., Ltd for forged globe valve pricing, technical support, OEM manufacturing, and project solutions. We are ready to support your sourcing needs with reliable quality and professional service.
