Pneumatic Ball Valve Manufacturer for Industrial Automation Systems
ZONCIC is a professional pneumatic ball valve manufacturer in China, supplying high-performance pneumatic actuated ball valve solutions for oil and gas, chemical processing, water treatment, power generation and industrial automation systems. Our pneumatic ball valve products are designed for fast shut-off, stable actuation and reliable long-term service in demanding pipeline applications.
Request a Quote

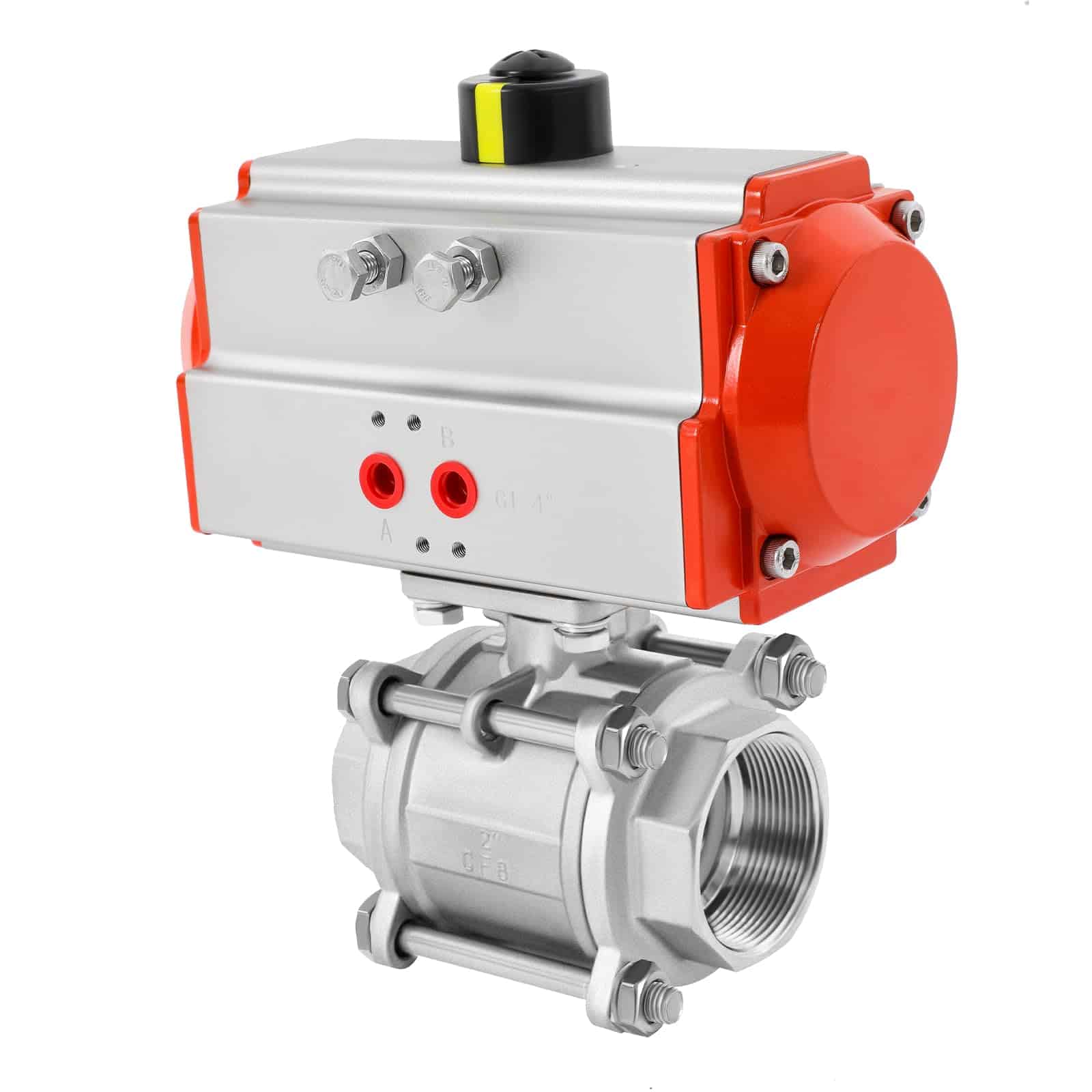

What Is a Pneumatic Ball Valve?
A pneumatic ball valve is an automated shut-off valve operated by compressed air through a pneumatic actuator. It combines the dependable sealing performance of a ball valve with the speed, efficiency and remote control advantages of pneumatic actuation, making it a practical choice for automated industrial pipeline systems.
As an experienced pneumatic ball valve manufacturer, ZONCIC supplies complete valve and actuator assemblies designed for stable torque output, reliable shut-off and easy integration with industrial control systems. Pneumatic ball valve packages are widely used where quick switching, remote operation and process automation are required.
For more automated flow control solutions, you can also visit our ball valve category or explore our full industrial valves range.
Key Features of Pneumatic Ball Valve
- Fast opening and closing for automatic shut-off service
- Reliable quarter-turn design with low operating torque
- Available with double acting and spring return actuators
- Suitable for remote control and industrial automation systems
- Optional accessories including limit switch box, solenoid valve and air filter regulator
- Available for on-off control and modulating control service
- Suitable for water, oil, gas, steam and chemical media
- Compact structure with stable and efficient pneumatic actuation
Technical Specifications
As a reliable pneumatic ball valve manufacturer, ZONCIC supplies pneumatic ball valve solutions in different valve body types, seat materials, actuator configurations and automation accessories. We support customized production according to pipeline standards, medium characteristics and industrial automation project requirements.
| Item | Specification |
|---|---|
| Valve Type | Pneumatic Ball Valve / Pneumatic Actuated Ball Valve |
| Size Range | 1/2″ to 12″ (DN15 to DN300) |
| Pressure Rating | Class 150 to Class 600 / PN16 to PN100 |
| Body Materials | WCB, LCB, CF8, CF8M, Duplex Stainless Steel, Alloy Steel |
| Ball Materials | SS304, SS316, SS316L, Duplex Stainless Steel |
| Seat Materials | PTFE, RPTFE, PPL, Metal Seat Optional |
| End Connections | Flanged, Threaded, Socket Weld, Butt Weld |
| Actuator Type | Double Acting, Spring Return |
| Air Supply Pressure | 0.4 MPa to 0.7 MPa |
| Control Mode | On-Off Control, Modulating Control |
| Accessories | Solenoid Valve, Limit Switch Box, Air Filter Regulator, Positioner, Manual Override |
| Manufacturing Standards | API, ASME, DIN, JIS, GOST |
| Design Standard | API 6D, ASME B16.34, ISO 17292 |
| Face to Face | ASME B16.10, API 6D, DIN |
| Flange Standard | ASME B16.5, DIN, JIS, GOST |
| Inspection and Testing | API 598, API 6D, ISO 5208 |
| Applicable Temperature | -29°C to 200°C (depending on valve material and seat selection) |
| Applicable Media | Water, Oil, Gas, Steam, Chemical Media, Process Fluids |
Main Parts and Materials
| No. | Part Name | Material |
|---|---|---|
| 1 | Valve Body | WCB / CF8 / CF8M / LCB |
| 2 | End Cap / Bonnet | WCB / CF8 / CF8M / LCB |
| 3 | Ball | SS304 / SS316 / SS316L |
| 4 | Stem | SS410 / SS304 / SS316 |
| 5 | Seat | PTFE / RPTFE / PPL |
| 6 | Body Gasket | Graphite / PTFE |
| 7 | Stem Packing | PTFE / Graphite |
| 8 | Bracket | Carbon Steel / Stainless Steel |
| 9 | Pneumatic Actuator | Aluminum Alloy / Stainless Steel Housing |
| 10 | Solenoid Valve | Aluminum / Stainless Steel |
| 11 | Limit Switch Box | Aluminum / Engineering Plastic |
| 12 | Bolts & Nuts | B7 / 2H / SS304 / SS316 |
Main Dimensions
| Size | DN | L (mm) | H (mm) | Actuator Height (mm) | Connection | Pressure Class |
|---|---|---|---|---|---|---|
| 1/2″ | 15 | 108 | 70 | 180 | Flanged / Threaded | 150 / 300 |
| 3/4″ | 20 | 117 | 75 | 190 | Flanged / Threaded | 150 / 300 |
| 1″ | 25 | 127 | 82 | 210 | Flanged / Threaded | 150 / 300 |
| 1-1/2″ | 40 | 165 | 95 | 240 | Flanged / Threaded | 150 / 300 |
| 2″ | 50 | 178 | 105 | 270 | Flanged / Threaded / Socket Weld | 150 / 300 / 600 |
| 3″ | 80 | 203 | 125 | 320 | Flanged / Butt Weld | 150 / 300 / 600 |
| 4″ | 100 | 229 | 145 | 380 | Flanged / Butt Weld | 150 / 300 / 600 |
| 6″ | 150 | 394 | 180 | 480 | Flanged / Butt Weld | 150 / 300 / 600 |
| 8″ | 200 | 457 | 220 | 580 | Flanged | 150 / 300 |
| 10″ | 250 | 533 | 260 | 700 | Flanged | 150 / 300 |
| 12″ | 300 | 610 | 300 | 850 | Flanged | 150 / 300 |
Note: Dimensions above are for reference only. Customized pneumatic ball valve dimensions can be provided according to project requirements, valve configuration and automation system needs.
Manufacturing Standards and Quality Control
ZONCIC is a professional pneumatic ball valve manufacturer committed to stable quality and export-ready supply. We manufacture pneumatic ball valve assemblies according to international industrial standards to meet the requirements of global pipeline automation and process control systems.
- API Standards: suitable for oil and gas, pipeline and process automation applications
- ASME Standards: suitable for industrial pressure piping and shut-off control systems
- DIN Standards: suitable for European engineering and industrial projects
- JIS Standards: suitable for Japanese and Asian industrial market requirements
- GOST Standards: suitable for Russian and CIS industrial projects
Each pneumatic actuated ball valve can be supplied with material certificates, pressure test reports and assembly inspection records according to customer and project requirements. For standard references, you can also visit the API official website and the ASME official website.
Applications of Pneumatic Ball Valve
Pneumatic ball valve products are widely used in industrial systems that require automatic opening and closing, remote operation and fast response. As a dependable automated shut-off solution, they are suitable for both on-off control and process automation applications across multiple industries.
- Oil and gas processing systems
- Chemical and petrochemical plants
- Water treatment and utility pipelines
- Power generation and energy systems
- Food processing and pharmaceutical production lines
- General industrial automation and process control piping
If you need other automated valve options, you can also return to our ball valve solutions page or go directly to our contact page for a fast quotation.
Why Choose ZONCIC as Your Pneumatic Ball Valve Manufacturer?
- Professional pneumatic ball valve manufacturer with industrial export experience
- Support for API, ASME, DIN, JIS and GOST standard production
- Complete valve and actuator assembly solutions
- Strict quality control from raw material inspection to functional testing
- Support for on-off and modulating pneumatic control systems
- Available accessories including solenoid valve, switch box and positioner
- Stable supply capability for contractors, distributors and industrial end users
Frequently Asked Questions
What is a pneumatic ball valve used for?
A pneumatic ball valve is used for automatic shut-off and flow control in industrial pipeline systems. It is ideal for applications that require remote operation, quick response and integration with automation systems.
Why choose a professional pneumatic ball valve manufacturer?
Choosing a professional pneumatic ball valve manufacturer helps ensure stable material quality, accurate assembly, reliable actuator performance and complete export documentation for your project.
What types of pneumatic actuators are available?
We can supply double acting pneumatic actuators and spring return pneumatic actuators according to the required control function, safety requirement and operating condition.
Can pneumatic ball valves be supplied with accessories?
Yes. We can provide pneumatic ball valves with solenoid valves, limit switch boxes, air filter regulators, valve positioners and manual override devices as required.
Do you offer customized pneumatic ball valve solutions?
Yes. We support customized sizes, materials, actuator configurations, control accessories and project-specific technical requirements for pneumatic actuated ball valve applications.
