Three Piece Ball Valve Manufacturer for Industrial Pipeline Service
ZONCIC is a professional three piece ball valve manufacturer supplying 3 piece ball valves for chemical processing, water treatment, oil and gas auxiliary lines, food processing, pharmaceutical equipment and industrial pipeline systems. As a reliable three piece ball valve manufacturer, we focus on stable sealing, easy maintenance, accurate machining and export-ready quality control.
Request a Quote View Ball Valve Series

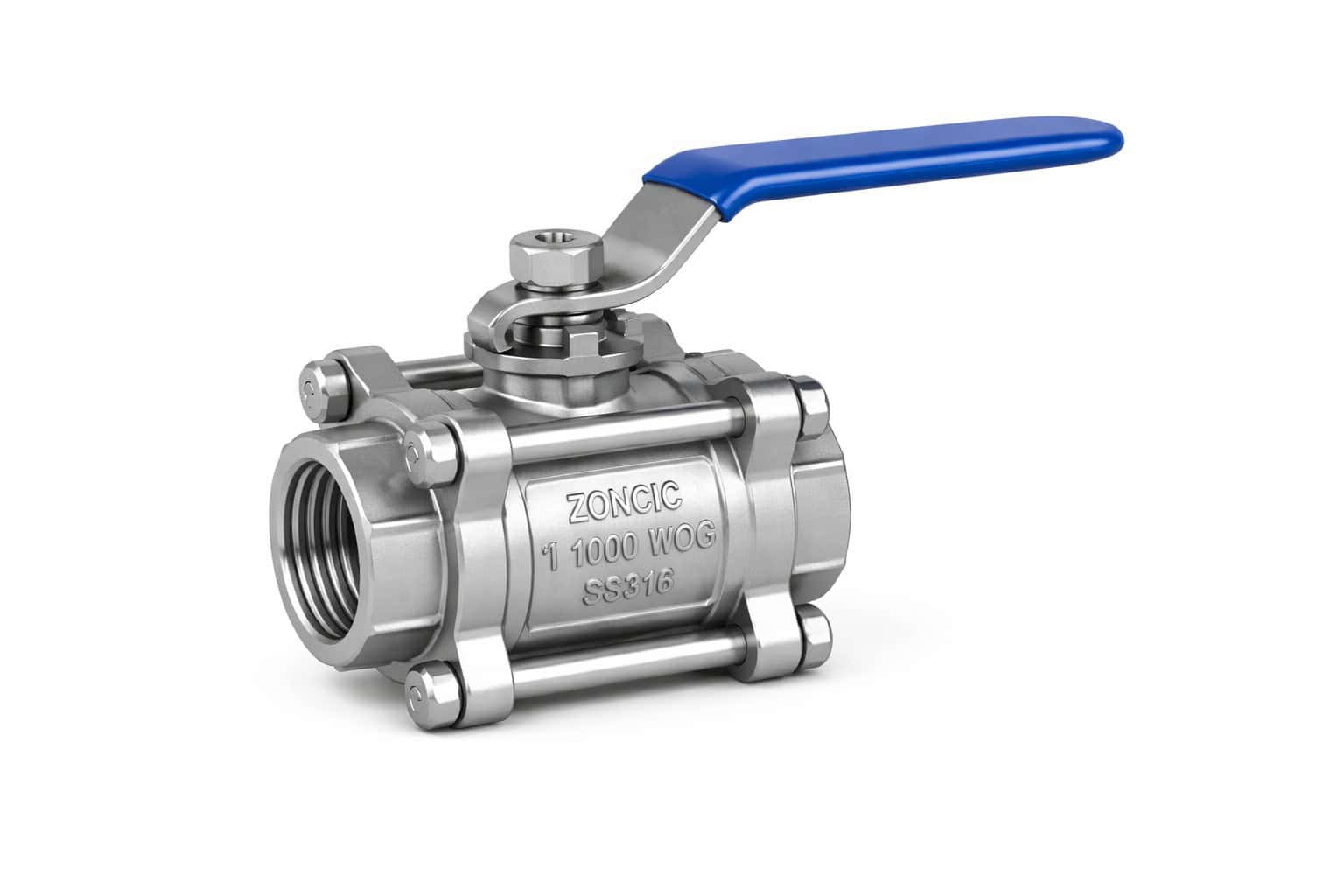

What Is a Three Piece Ball Valve?
A three piece ball valve uses two end caps and one center body. This structure allows the center body to be removed for cleaning, inspection or seat replacement without dismantling the full pipeline connection.
Compared with one piece or two piece ball valves, a 3 piece ball valve is more suitable for process lines that require regular maintenance, sanitary cleaning, internal inspection or quick replacement of soft sealing components.
ZONCIC works as a three piece ball valve manufacturer for distributors, EPC contractors, OEM equipment builders and industrial end users who need dependable shut-off valves with technical documentation and export packing.
Three Piece Ball Valve Manufacturer Advantages
Easy Maintenance
The center body can be removed more conveniently, helping reduce downtime for cleaning, inspection and internal component replacement.
Flexible Connections
Threaded, socket weld, butt weld and flanged ends are available according to installation layout, pressure rating and project standard.
Reliable Shut-Off
Precision-machined balls, stable seats and controlled assembly support dependable sealing in industrial pipeline service.
Three Piece Ball Valve Manufacturer Technical Specifications
As an export-oriented three piece ball valve manufacturer, ZONCIC supplies stainless steel, carbon steel and alloy steel three piece ball valves with different connection types, seat materials and operation methods.
| Item | Specification |
|---|---|
| Valve Type | Three Piece Ball Valve / 3 Piece Ball Valve |
| Size Range | 1/4″ to 4″ / DN8 to DN100 |
| Pressure Rating | 1000 WOG / PN16 to PN64 |
| Body Material | CF8, CF8M, WCB, CF3M, Duplex Stainless Steel, Alloy Steel |
| Ball Material | SS304, SS316, SS316L |
| Seat Material | PTFE, RPTFE, PPL |
| End Connections | Threaded, Socket Weld, Butt Weld, Flanged |
| Thread Standards | NPT, BSPT, BSPP |
| Operation | Lever, Gear, Pneumatic Actuator, Electric Actuator |
| Design Standard | ASME B16.34, API 608, BS 5351 |
| Inspection Standard | API 598, EN 12266 |
| Applicable Media | Water, Oil, Gas, Steam, Chemical Media, Mild Corrosive Fluids |
Main Parts and Materials
| No. | Part Name | Material Options |
|---|---|---|
| 1 | Left Body | CF8 / CF8M / WCB |
| 2 | Right Body | CF8 / CF8M / WCB |
| 3 | Center Body | CF8 / CF8M / WCB |
| 4 | Ball | SS304 / SS316 / SS316L |
| 5 | Stem | SS304 / SS316 |
| 6 | Seat | PTFE / RPTFE / PPL |
| 7 | Body Seal | PTFE / Graphite |
| 8 | Stem Packing | PTFE / Graphite |
| 9 | Handle | Stainless Steel / Carbon Steel |
| 10 | Bolts & Nuts | SS304 / SS316 / B8 |
Reference Dimensions
| Size | DN | L mm | H mm | W mm | Connection | Rating |
|---|---|---|---|---|---|---|
| 1/4″ | 8 | 72 | 52 | 95 | Threaded / Socket Weld | 1000 WOG |
| 3/8″ | 10 | 75 | 55 | 95 | Threaded / Socket Weld | 1000 WOG |
| 1/2″ | 15 | 80 | 60 | 105 | Threaded / Socket Weld / Butt Weld | 1000 WOG |
| 3/4″ | 20 | 90 | 65 | 120 | Threaded / Socket Weld / Butt Weld | 1000 WOG |
| 1″ | 25 | 100 | 72 | 135 | Threaded / Socket Weld / Butt Weld | 1000 WOG |
| 1-1/4″ | 32 | 110 | 78 | 150 | Threaded / Socket Weld / Butt Weld | 1000 WOG |
| 1-1/2″ | 40 | 126 | 88 | 170 | Threaded / Socket Weld / Butt Weld | 1000 WOG |
| 2″ | 50 | 140 | 95 | 190 | Threaded / Socket Weld / Butt Weld / Flanged | 1000 WOG |
| 3″ | 80 | 185 | 125 | 240 | Flanged / Butt Weld | PN16-PN40 |
| 4″ | 100 | 220 | 150 | 300 | Flanged / Butt Weld | PN16-PN40 |
Quality Control from a Three Piece Ball Valve Manufacturer
ZONCIC controls three piece ball valve production from raw material inspection to CNC machining, assembly, pressure testing and export packing. This makes ZONCIC a practical three piece ball valve manufacturer for buyers who need stable quality and clear documentation.
- Raw material and body inspection before machining
- Seat, stem and ball dimensional checking
- Thread, socket weld, butt weld or flange connection verification
- Hydrostatic shell pressure testing
- Seat leakage inspection according to API 598 or project standard
- Visual inspection, marking check and export packing control
For technical standards reference, buyers may review API and ASME.
Applications of Three Piece Ball Valves
- Chemical and petrochemical processing systems
- Oil and gas auxiliary pipeline systems
- Water treatment and utility service lines
- Food processing and pharmaceutical equipment
- General industrial process piping
- OEM equipment and skid-mounted systems
Related Ball Valve Solutions
Two Piece Ball Valve
Balanced structure for compact industrial shut-off service.
View Two Piece Ball Valve →Threaded Ball Valve
Screwed-end valve for small bore utility and industrial pipelines.
View Threaded Ball Valve →Flanged Ball Valve
Flanged connection option for larger industrial pipeline service.
View Flanged Ball Valve →Three Piece Ball Valve Manufacturer FAQ
What is the advantage of a three piece ball valve?
The main advantage is convenient maintenance. The center body can be removed for cleaning or internal part replacement without fully removing the complete valve assembly from the pipeline.
Why choose ZONCIC as a three piece ball valve manufacturer?
ZONCIC supplies three piece ball valves with controlled machining, sealing inspection, pressure testing, export packing and technical support for industrial pipeline projects.
Which connection types can ZONCIC supply?
ZONCIC can supply threaded, socket weld, butt weld and flanged three piece ball valves according to installation requirements.
Can three piece ball valves be automated?
Yes. Three piece ball valves can be equipped with pneumatic actuators or electric actuators for automated shut-off and control systems.
Request a Quote from a Three Piece Ball Valve Manufacturer
Send your valve size, material, pressure rating, connection type and application. ZONCIC will provide a suitable three piece ball valve solution for your industrial pipeline project.
