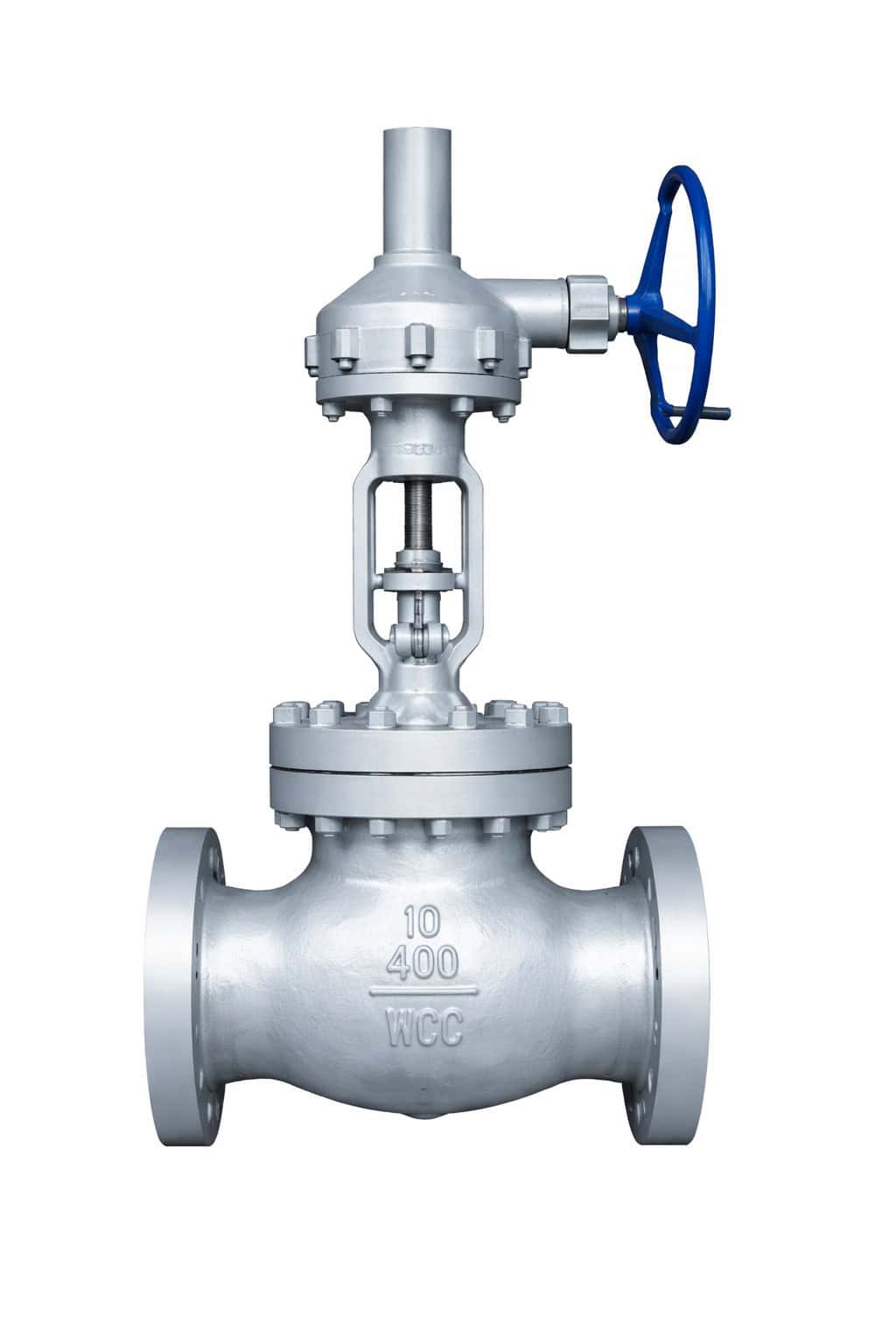

Industrial Straight Pattern Globe Valve Supplier
A straight pattern globe valve is the most common and standard form of globe valve, designed for reliable shut-off and accurate throttling in industrial pipeline systems. With its linear flow path through the body, this valve type is widely used in process lines where dependable sealing, stable regulation, and easy maintenance are required.
As a professional straight pattern globe valve manufacturer, Wenzhou Zoncic Machinery Technology Co., Ltd supplies a complete range of straight pattern globe valves for oil & gas, steam, petrochemical, chemical processing, water treatment, and utility applications. Our straight pattern globe valve products are available in WCB, stainless steel, alloy steel, and special materials, and can be manufactured according to API, ASME, DIN, JIS, and project-specific requirements.
- ✔ Standard straight pattern body design for general industrial service
- ✔ Reliable shut-off and stable throttling performance
- ✔ Suitable for oil, gas, steam, water, and chemical media
- ✔ Available in cast steel, stainless steel, and alloy steel materials
Key Features of Straight Pattern Globe Valves from Manufacturer
Designed for general purpose industrial service, dependable shut-off, precise throttling, and accurate flow regulation in a wide range of piping systems.
Standard Body Design
The straight pattern body is the most common globe valve design, suitable for general industrial flow control service.
Reliable Shut-Off
Disc and seat construction provides dependable sealing performance in oil, gas, steam, water, and chemical applications.
Precise Throttling
Ideal for applications where stable regulation and accurate control of process flow are required.
Wide Pressure Range
Available from Class 150 up to Class 2500 for medium and high pressure industrial systems.
Flexible Material Options
Available in WCB, stainless steel, alloy steel, and other materials for different process conditions.
Long Service Life
Precision machining and durable seat surfaces help reduce wear and improve maintenance cycles.
Straight Pattern Globe Valve Manufacturer Technical Specifications
Our straight pattern globe valve products are manufactured to meet international standards and industrial project requirements.
| Item | Description |
|---|---|
| Product Name | Straight Pattern Globe Valve |
| Size Range | 1/2″ – 24″ |
| Pressure Rating | Class 150 – 2500 |
| Body Material | WCB, LCB, WC6, WC9, CF8, CF8M, Stainless Steel, Alloy Steel |
| Connection Type | Flanged, Butt Weld, Socket Weld, Threaded |
| Operation | Handwheel, Gear Operated, Electric Actuated, Pneumatic Actuated |
| Design Standard | API 600, BS 1873, DIN, JIS, GOST |
| Face to Face | ASME B16.10 |
| Connection Standard | ASME B16.5, ASME B16.25, ASME B16.11, DIN, JIS |
| Pressure-Temperature Rating | ASME B16.34 |
| Inspection & Testing | API 598, ISO 5208, EN 12266 |
| Applicable Media | Oil, Gas, Steam, Water, Chemical Media |
| Temperature Range | -196°C to 600°C |

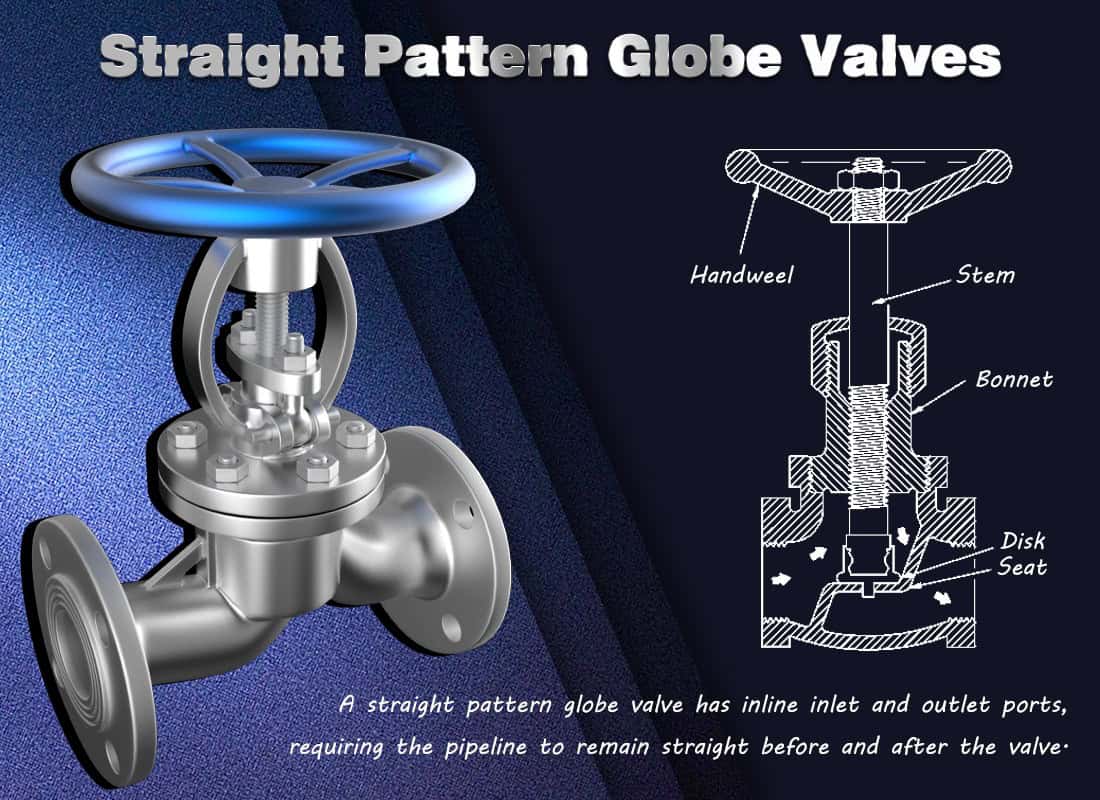

Main Parts and Materials
Material selection can be customized according to working pressure, temperature, media type, corrosion resistance, and project specifications.
| Part Name | Material Option |
|---|---|
| Body | WCB / LCB / WC6 / WC9 / CF8 / CF8M / Alloy Steel |
| Bonnet | Same as Body Material |
| Disc | 13Cr / SS304 / SS316 / STL Overlay |
| Stem | F6a / SS410 / SS304 / SS316 / 17-4PH |
| Seat Ring | 13Cr / SS304 / SS316 / Stellite |
| Back Seat | 13Cr / SS304 / SS316 |
| Gasket | Graphite / Spiral Wound Gasket / Stainless Steel + Graphite |
| Packing | Flexible Graphite / PTFE / Expanded Graphite |
| Handwheel | Ductile Iron / Carbon Steel / Cast Steel |
| Bolting | B7 / B8 / B8M / L7 |
Straight Pattern Globe Valve Applications
Straight pattern globe valves are widely used in general industrial process lines that require stable shut-off, reliable throttling, and accurate flow regulation.
Oil & Gas
Used in process lines for shut-off, throttling, and fluid regulation in upstream and downstream systems.
Petrochemical
Suitable for hydrocarbon, steam, and chemical systems requiring dependable shut-off and throttling performance.
Steam Systems
Commonly used in thermal pipeline systems where reliable control and shut-off are essential.
Chemical Processing
Reliable for chemical transfer lines where material resistance and stable valve operation are important.
Water Treatment
Applied in industrial water lines, utility systems, and general process control service.
Utility Systems
Suitable for general industrial applications requiring a standard globe valve body pattern.
Quality Assurance, Testing, Packing & Delivery
Every straight pattern globe valve is manufactured and tested under strict quality control procedures to ensure sealing performance, dimensional accuracy, and export reliability.
Inspection & Testing
- Hydrostatic Shell Test
- Seat Leakage Test
- Air / Pneumatic Leakage Test
- PMI Testing for material verification
- Dimensional Inspection and Visual Check
- NDE options available upon request
Packing & Delivery
- Export standard plywood or wooden case packing
- Anti-rust oil protection for machined surfaces
- Clear product marking and traceability labels
- Suitable for sea freight, land transport, and project shipment
- Fast delivery time for standard and customized orders
- OEM brand marking and packing support available
Why Choose Zoncic Straight Pattern Globe Valves
We supply reliable straight pattern globe valve solutions with stable quality, professional service, export-oriented project support, and fast inquiry response.
Professional Manufacturer
Rich experience in industrial valve manufacturing for global export and project supply.
International Standards
Products supplied according to API, ASME, DIN, JIS, and project-specific requirements.
Strict Quality Control
Comprehensive inspection, testing, and traceability procedures are applied to each valve order.
OEM & Fast Delivery
Support for OEM branding, customized production, and quick delivery for standard and project orders.
Frequently Asked Questions About Straight Pattern Globe Valves
This FAQ section improves usability and supports long-tail SEO ranking for industrial buyers.
Straight Pattern Globe Valve Manufacturer for General Industrial Applications
If you are looking for a reliable straight pattern globe valve manufacturer, Zoncic can provide high quality straight pattern globe valves for a wide range of industrial applications. Our straight pattern globe valves are widely used in oil and gas, petrochemical, steam systems, chemical processing, water treatment, and general industrial pipeline systems.
We can supply WCB straight pattern globe valves, stainless steel straight pattern globe valves, and customized straight pattern globe valves in special materials according to project requirements. Manufactured to international standards such as API, ASME, DIN, and JIS, our products are designed for dependable shut-off, stable throttling, general purpose service, and long service life in demanding industrial systems.
Get Quote from Straight Pattern Globe Valve Manufacturer
Contact Wenzhou Zoncic Machinery Technology Co., Ltd for straight pattern globe valve pricing, technical support, OEM manufacturing, and project solutions. We are ready to support your sourcing needs with reliable quality and professional service.
Back to Globe Valve Category or explore more Industrial Valve Products.
Straight Pattern vs Y Pattern Globe Valve
When selecting a globe valve for industrial pipeline service, the difference between a straight pattern globe valve and a Y pattern globe valve mainly depends on flow direction, pressure drop, installation space and throttling requirements. A straight pattern globe valve is commonly selected for reliable shut-off and control service, while a Y pattern globe valve is often preferred where lower flow resistance is required.
| Comparison Item | Straight Pattern Globe Valve | Y Pattern Globe Valve |
|---|---|---|
| Flow Path | Z-type flow path with stronger flow direction change | Inclined flow path with smoother media passage |
| Pressure Drop | Higher pressure drop compared with Y pattern design | Lower pressure drop and better flow efficiency |
| Throttling Control | Good for shut-off and flow regulation service | Good for higher flow efficiency and control applications |
| Typical Use | Steam, water, oil, gas and general industrial pipelines | High flow rate, steam and high pressure process lines |
| Installation | Common structure, easy selection and broad availability | Requires attention to flow direction and installation layout |
| Cost | Usually more economical for standard globe valve service | Usually higher due to special body structure |
How to Choose Between Straight Pattern and Y Pattern Globe Valve?
Choose a straight pattern globe valve when your project needs reliable shut-off, practical throttling control, standard installation and economical valve selection. Choose a Y pattern globe valve when lower pressure drop, higher flow efficiency and smoother media passage are more important for the pipeline system.
