Industrial Flanged Globe Valve Supplier
A flanged globe valve is one of the most commonly used valve types for industrial throttling and shut-off service. Compared with threaded or welded globe valves, flanged globe valves provide easier installation, convenient maintenance, and stable sealing performance in medium and large pipeline systems.
As a professional flanged globe valve manufacturer, Wenzhou Zoncic Machinery Technology Co., Ltd supplies a full range of globe valves with flanged end connections for oil & gas, petrochemical, chemical processing, steam, power generation, and utility applications. Our flanged globe valve products are available in Class 150 to Class 2500 and in materials such as WCB, CF8, CF8M, alloy steel, and special materials to meet demanding project requirements.
- ✔ Reliable shut-off and precise flow regulation
- ✔ Standard flanged connection for easy installation and maintenance
- ✔ Available in cast steel, stainless steel, and alloy steel materials
- ✔ Manufactured according to API, ASME, DIN, JIS, and project specifications
Key Features of Flanged Globe Valves from Manufacturer
Designed for stable performance, reliable sealing, precise throttling, and convenient connection in industrial pipeline systems.
Precise Flow Control
Flanged globe valves are ideal for throttling applications that require accurate regulation of process flow.
Convenient Installation
Flanged end connections allow easy installation, removal, and maintenance in industrial piping systems.
Reliable Shut-Off
The disc and seat design provides stable shut-off performance in steam, water, oil, gas, and chemical service.
Wide Pressure Range
Available from Class 150 up to Class 2500 for medium and high pressure industrial applications.
Multiple Material Options
WCB, stainless steel, alloy steel, and special materials are available for different media and environments.
Long Service Life
Precision machining and durable seating surfaces help reduce wear and minimize maintenance frequency.
Flanged Globe Valve Manufacturer Technical Specifications
Our flanged globe valve products are manufactured to meet international standards and end-user project requirements.
| Item | Description |
|---|---|
| Product Name | Flanged Globe Valve |
| Size Range | 1/2″ – 24″ |
| Pressure Class | Class 150 – 2500 |
| Body Material | WCB, LCB, WC6, WC9, CF8, CF8M, Stainless Steel, Alloy Steel |
| Connection | RF, RTJ, FF Flanged Ends |
| Operation | Handwheel, Gear Operated, Electric Actuated, Pneumatic Actuated |
| Design Standard | API 600, BS 1873, DIN, JIS, GOST |
| Face to Face | ASME B16.10 |
| Flange Standard | ASME B16.5, ASME B16.47, DIN, JIS |
| Pressure-Temperature Rating | ASME B16.34 |
| Inspection & Testing | API 598, ISO 5208, EN 12266 |
| Applicable Media | Water, Steam, Oil, Gas, Chemical Media |
| Temperature Range | -196°C to 600°C |
Main Parts and Materials
Material selection can be customized according to pressure, temperature, media type, corrosion resistance, and project specifications.
| Part Name | Material Option |
|---|---|
| Body | WCB / LCB / WC6 / WC9 / CF8 / CF8M / Alloy Steel |
| Bonnet | Same as Body Material |
| Disc | 13Cr / SS304 / SS316 / STL Overlay |
| Stem | F6a / SS410 / SS304 / SS316 / 17-4PH |
| Seat Ring | 13Cr / SS304 / SS316 / Stellite |
| Back Seat | 13Cr / SS304 / SS316 |
| Gasket | Graphite / Spiral Wound Gasket / Stainless Steel + Graphite |
| Packing | Flexible Graphite / PTFE / Expanded Graphite |
| Handwheel | Ductile Iron / Carbon Steel / Cast Steel |
| Bolting | B7 / B8 / B8M / L7 |
Flanged Globe Valve Applications
Flanged globe valves are widely used in industrial process lines that require precise flow control, stable throttling, and dependable shut-off.
Oil & Gas
Used for process line shut-off, pressure control, and fluid regulation in upstream and downstream systems.
Petrochemical
Suitable for hydrocarbon, steam, and chemical process systems with strict sealing requirements.
Power Generation
Applied in boiler, steam, condensate, and auxiliary systems requiring durable high pressure valves.
Chemical Processing
Reliable for corrosive and hazardous fluid control where accurate throttling is essential.
Water Treatment
Used in industrial water systems, utility lines, and process control applications.
Steam Systems
Preferred in thermal pipeline systems for stable flow regulation and shut-off operation.
Quality Assurance, Testing, Packing & Delivery
Every flanged globe valve is manufactured and tested under strict quality control procedures to ensure sealing performance, dimensional accuracy, and export reliability.

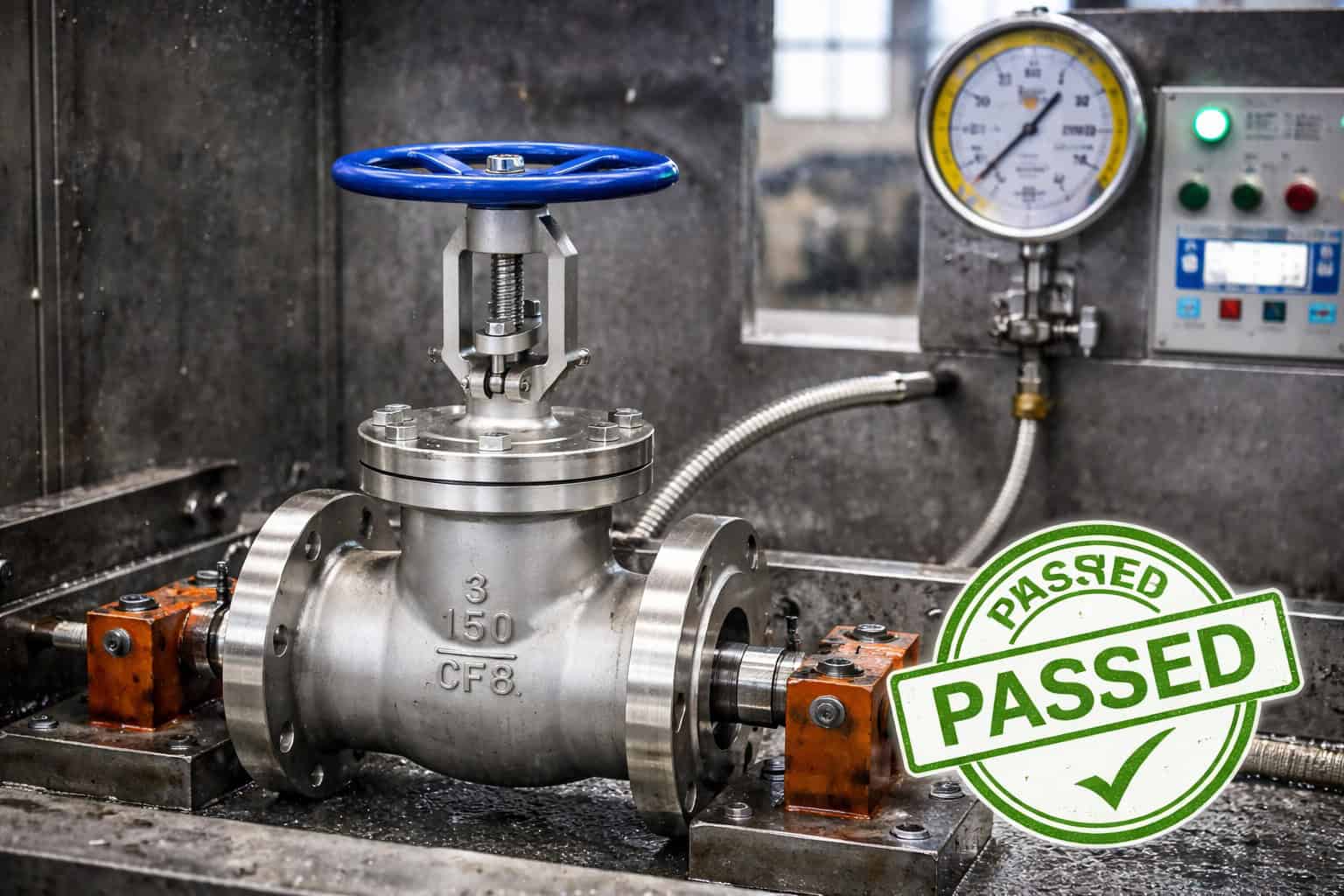

Inspection & Testing
- Hydrostatic Shell Test
- Seat Leakage Test
- Air / Pneumatic Leakage Test
- PMI Testing for material verification
- Dimensional Inspection and Visual Check
- NDE options: PT / MT / UT as required
Packing & Delivery
- Export standard plywood or wooden case packing
- Anti-rust oil protection for machining surfaces
- Clear product marking and traceability labels
- Suitable for sea freight, land transport, and project shipment
- Fast delivery time for standard and customized orders
- OEM brand marking and packing support available
Why Choose Zoncic Flanged Globe Valves
We supply reliable flanged globe valve solutions with stable quality, professional support, export-oriented service, and fast response for project inquiries.
Professional Manufacturer
Rich experience in industrial valve manufacturing for global export and project supply.
International Standards
Products supplied according to API, ASME, DIN, JIS, and project-specific requirements.
Strict Quality Control
Comprehensive inspection, testing, and traceability procedures for each flanged globe valve order.
OEM & Fast Delivery
Support for OEM branding, customized production, and quick delivery for standard and project orders.
Frequently Asked Questions About Flanged Globe Valves
This FAQ section helps improve user experience and supports long-tail keyword ranking for industrial buyers.
Flanged Globe Valve Manufacturer for Global Industrial Projects
If you are looking for a reliable flanged globe valve manufacturer, Zoncic can provide high quality globe valve solutions for a wide range of industrial applications. Our flanged globe valves are widely used in oil and gas, petrochemical, chemical processing, steam systems, power plants, and water treatment projects where precise throttling, reliable shut-off, and convenient flanged installation are required.
We can supply WCB flanged globe valves, stainless steel flanged globe valves, and customized flanged globe valves in special materials according to project requirements. Manufactured to international standards such as API, ASME, DIN, and JIS, our products are designed for dependable shut-off, stable throttling performance, pressure resistance, and long service life in demanding working conditions.
Get Quote from Flanged Globe Valve Manufacturer
Contact Wenzhou Zoncic Machinery Technology Co., Ltd for flanged globe valve pricing, technical support, OEM manufacturing, and project solutions. We are ready to support your sourcing needs with reliable quality and professional service.
