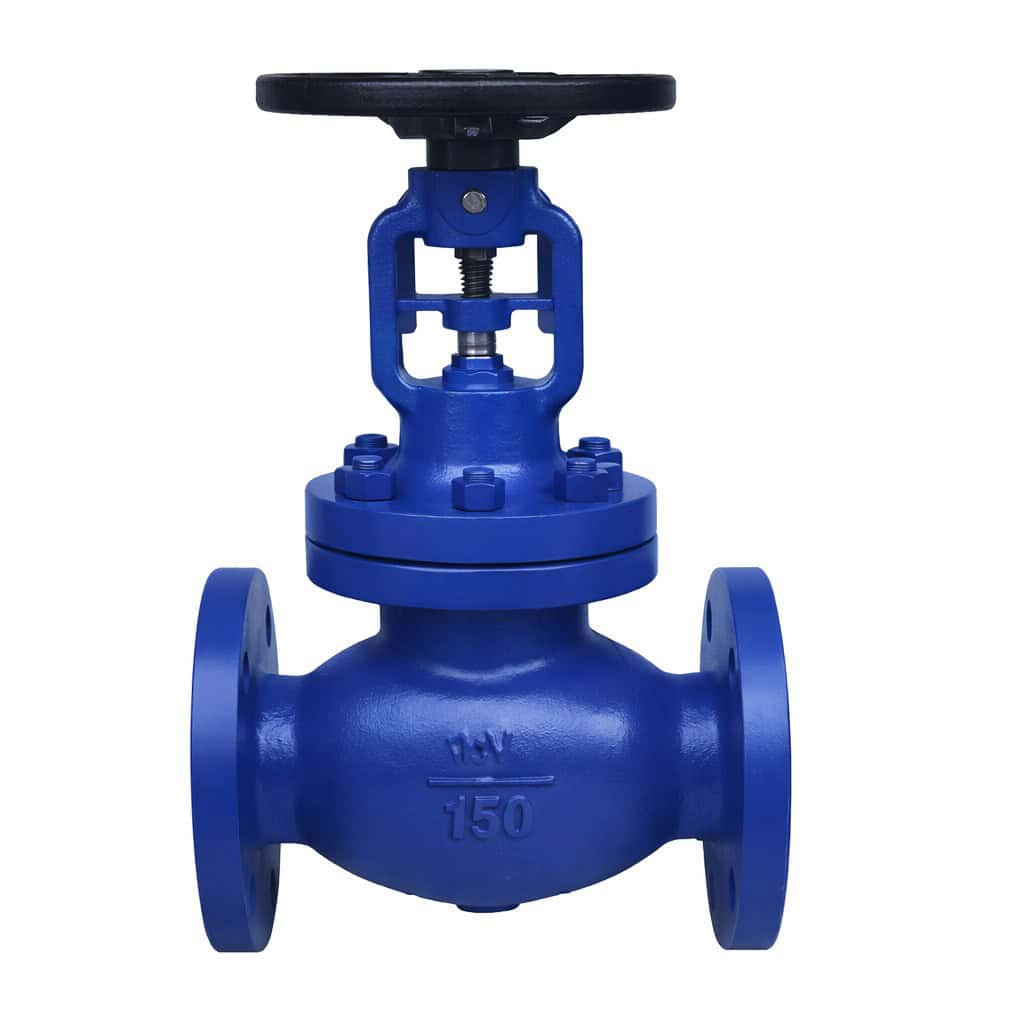

Industrial Bellows Sealed Globe Valve Supplier
A bellows sealed globe valve is a special type of globe valve equipped with a metal bellows sealing system to prevent leakage from the stem area. Compared with conventional packed globe valves, bellows sealed globe valves provide zero leakage or extremely low leakage performance, making them ideal for hazardous, toxic, flammable, expensive, or high purity media.
As a professional bellows sealed globe valve manufacturer, Wenzhou Zoncic Machinery Technology Co., Ltd supplies high quality bellows sealed valves for chemical processing, steam systems, thermal oil, pharmaceutical, gas service, and industrial pipeline applications. Our bellows sealed globe valve products are available in WCB, stainless steel, alloy steel, and special materials, and can be manufactured according to API, ASME, DIN, JIS, and project-specific standards.
- ✔ Zero leakage metal bellows sealing design
- ✔ Ideal for hazardous, toxic, and high purity media
- ✔ Reliable shut-off and stable throttling performance
- ✔ Long service life with reduced maintenance requirements
Key Features of Bellows Sealed Globe Valves from Manufacturer
Designed for leak-free performance, safer operation, stable shut-off, and long-term reliability in demanding industrial systems.
Zero Leakage Sealing
The metal bellows assembly isolates the stem from process media and greatly reduces external leakage risk.
Enhanced Safety
Ideal for hazardous, toxic, flammable, and environmentally sensitive media where leakage must be minimized.
Reliable Shut-Off
The globe valve disc and seat structure provides dependable sealing and stable shut-off performance.
Long Service Life
Precision bellows design and durable internal components extend service life and reduce maintenance frequency.
Wide Material Options
Available in WCB, stainless steel, alloy steel, and other special materials for different industrial processes.
Suitable for Severe Media
Commonly used in chemical, steam, thermal oil, pharmaceutical, gas, and high purity applications.
Bellows Sealed Globe Valve Manufacturer Technical Specifications
Our bellows sealed globe valve products are manufactured to meet international industrial standards and demanding project requirements.
| Item | Description |
|---|---|
| Product Name | Bellows Sealed Globe Valve |
| Size Range | 1/2″ – 24″ |
| Pressure Rating | Class 150 – 2500 |
| Body Material | WCB, LCB, WC6, WC9, CF8, CF8M, Stainless Steel, Alloy Steel |
| Connection Type | Flanged, Butt Weld, Socket Weld, Threaded |
| Operation | Handwheel, Gear Operated, Electric Actuated, Pneumatic Actuated |
| Design Standard | API, ASME, DIN, JIS, GOST, Project Standard |
| Face to Face | ASME B16.10 / Manufacturer Standard |
| Pressure-Temperature Rating | ASME B16.34 |
| Inspection & Testing | API 598, ISO 5208, EN 12266 |
| Applicable Media | Steam, Thermal Oil, Chemical Media, Gas, Water, High Purity Media |
| Temperature Range | -196°C to 600°C |
Main Parts and Materials
Material selection can be customized according to process conditions, media characteristics, leakage control requirements, and project specifications.
| Part Name | Material Option |
|---|---|
| Body | WCB / LCB / WC6 / WC9 / CF8 / CF8M / Alloy Steel |
| Bonnet | Same as Body Material |

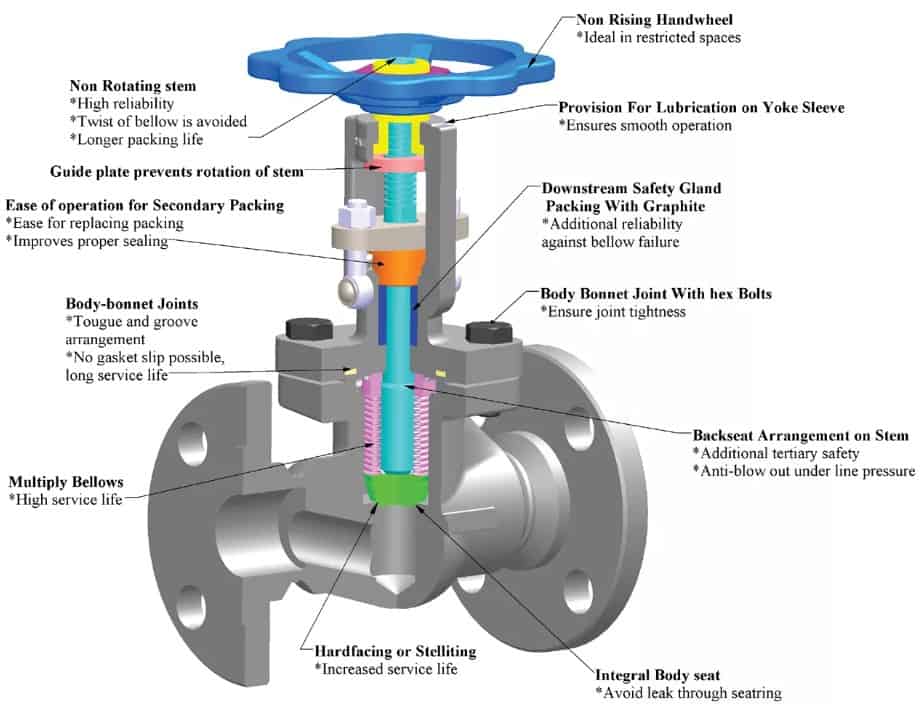

| Bellows Assembly | Stainless Steel Bellows / Multi-layer Metal Bellows |
| Disc | 13Cr / SS304 / SS316 / STL Overlay |
| Stem | F6a / SS410 / SS304 / SS316 / 17-4PH |
| Seat Ring | 13Cr / SS304 / SS316 / Stellite |
| Back Seat | 13Cr / SS304 / SS316 |
| Gasket | Graphite / Spiral Wound Gasket / Stainless Steel + Graphite |
| Packing | Flexible Graphite / PTFE / Expanded Graphite |
| Handwheel | Ductile Iron / Carbon Steel / Cast Steel |
Bellows Sealed Globe Valve Applications
Bellows sealed globe valves are widely used in systems requiring leak-free stem sealing, safe operation, and dependable shut-off.
Chemical Processing
Used for hazardous, corrosive, and toxic media where stem leakage prevention is critical.
Steam Systems
Suitable for high temperature steam service requiring reliable shut-off and safe operation.
Thermal Oil
Commonly applied in thermal oil systems where leakage prevention and temperature resistance are essential.
Pharmaceutical
Used in systems requiring cleaner operation, high sealing integrity, and reduced contamination risk.
Gas Systems
Suitable for industrial gas service where leakage control and environmental protection are important.
High Purity Media
Reliable for sensitive process lines requiring low leakage and stable flow control performance.
Quality Assurance, Testing, Packing & Delivery
Every bellows sealed globe valve is manufactured and tested under strict quality control procedures to ensure stable performance and sealing reliability.
Inspection & Testing
- Hydrostatic Shell Test
- Seat Leakage Test
- Bellows Sealing Integrity Inspection
- Air / Pneumatic Leakage Test
- PMI Testing for material verification
- Dimensional Inspection and Visual Check
Packing & Delivery
- Export standard plywood or wooden case packing
- Anti-rust oil protection for machined surfaces
- Clear product marking and traceability labels
- Suitable for sea freight, land transport, and project shipment
- Fast delivery time for standard and customized orders
- OEM brand marking and packing support available
Why Choose Zoncic Bellows Sealed Globe Valves
We supply reliable bellows sealed globe valve solutions with stable quality, strong leakage control performance, and export-oriented project support.
Professional Manufacturer
Rich experience in industrial valve manufacturing for global export and project applications.
Zero Leakage Design
Reliable metal bellows sealing system designed for safer operation in hazardous and sensitive media service.
Strict Quality Control
Comprehensive inspection, testing, and traceability procedures are applied to each valve order.
OEM & Fast Delivery
Support for OEM branding, customized production, and quick delivery for standard and project orders.
Frequently Asked Questions About Bellows Sealed Globe Valves
This FAQ section improves usability and supports long-tail SEO ranking for industrial buyers.
Bellows Sealed Globe Valve Manufacturer for Leak-Free Industrial Applications
If you are looking for a reliable bellows sealed globe valve manufacturer, Zoncic can provide high quality bellows sealed valves for a wide range of industrial applications. Our bellows sealed globe valves are widely used in chemical processing, steam systems, thermal oil, pharmaceutical, gas service, and high purity media applications where leakage prevention is essential.
We can supply WCB bellows sealed globe valves, stainless steel bellows sealed globe valves, and customized bellows sealed globe valves in special materials according to project requirements. Manufactured to international standards such as API, ASME, DIN, and JIS, our products are designed for zero leakage sealing, reliable shut-off, stable throttling, and long service life in demanding industrial systems.
Get Quote from Bellows Sealed Globe Valve Manufacturer
Contact Wenzhou Zoncic Machinery Technology Co., Ltd for bellows sealed globe valve pricing, technical support, OEM manufacturing, and project solutions. We are ready to support your sourcing needs with reliable quality and professional service.
