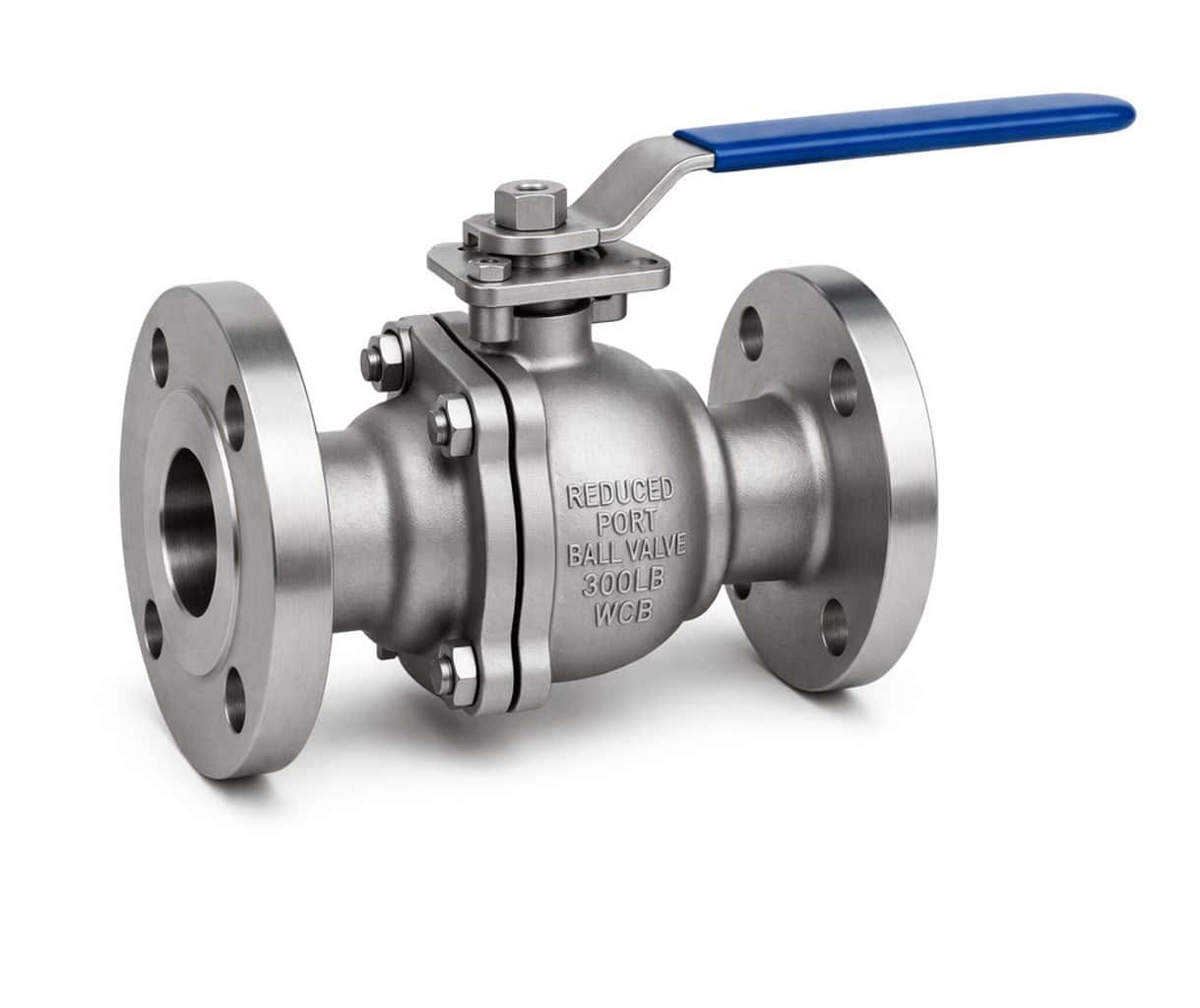

Reduced Port Ball Valve Manufacturer for Compact and Economical Flow Control
ZONCIC is a professional reduced port ball valve manufacturer in China, supplying dependable reduced bore ball valve solutions for oil and gas, petrochemical, water treatment, power generation and industrial pipeline systems. Our reduced port ball valve products are designed for reliable shut-off, compact installation and cost-effective valve selection in a wide range of industrial services.
Request a Quote
What Is a Reduced Port Ball Valve?
A reduced port ball valve, also called a reduced bore ball valve, is a quarter-turn shut-off valve with an internal bore smaller than the pipeline inside diameter. Compared with a full port ball valve, the reduced port design provides a more compact body, lower weight and more economical manufacturing cost while still maintaining dependable shut-off performance.
As an experienced reduced port ball valve manufacturer, ZONCIC supplies carbon steel, stainless steel and alloy steel valves for industrial systems where full bore flow is not essential. A reduced port ball valve is often selected when buyers need a practical balance between performance, installation space and budget.
If your project also requires full flow capacity, you can visit our ball valve category or explore our full industrial valves range.
Key Features of Reduced Port Ball Valve
- Reduced bore design for compact structure and lower valve weight
- More economical than full port ball valve designs in many applications
- Reliable quarter-turn shut-off performance for industrial service
- Lower material consumption and reduced installation space requirements
- Available in floating and trunnion mounted constructions
- Suitable for flanged, threaded, butt weld and socket weld connections
- Optional fire-safe and anti-static design for demanding service conditions
- Applicable for oil, gas, water, steam and chemical media
Technical Specifications
As a reliable reduced port ball valve manufacturer, ZONCIC supplies reduced port ball valve products in different body structures, pressure classes, materials and end connection forms. We support customized production according to service conditions, valve selection requirements and industrial project specifications.
| Item | Specification |
|---|---|
| Valve Type | Reduced Port Ball Valve / Reduced Bore Ball Valve |
| Size Range | 1/2″ to 24″ (DN15 to DN600) |
| Pressure Rating | Class 150 to Class 600 / PN16 to PN100 |
| Port Type | Reduced Port / Reduced Bore |
| Valve Structure | Floating Ball Valve, Trunnion Mounted Ball Valve |
| Body Materials | WCB, LCB, CF8, CF8M, Duplex Stainless Steel, Alloy Steel |
| Ball Materials | SS304, SS316, SS316L, Duplex Stainless Steel |
| Seat Materials | PTFE, RPTFE, Nylon, PPL, PEEK, Metal Seat Optional |
| End Connections | Flanged, Threaded, Butt Weld, Socket Weld |
| Operation | Lever, Gear, Pneumatic Actuator, Electric Actuator |
| Manufacturing Standards | API, ASME, DIN, JIS, GOST |
| Design Standard | API 6D, API 608, ASME B16.34, ISO 17292 |
| Face to Face | API 6D, ASME B16.10, DIN |
| Flange Standard | ASME B16.5, ASME B16.47, DIN, JIS, GOST |
| Inspection and Testing | API 598, API 6D, ISO 5208 |
| Applicable Temperature | -46°C to 200°C (depending on body and seat material) |
| Applicable Media | Oil, Gas, Water, Steam, Chemical Media, Process Fluids |
Main Parts and Materials
| No. | Part Name | Material |
|---|---|---|
| 1 | Body | WCB / LCB / CF8 / CF8M |
| 2 | Bonnet / End Cap | WCB / LCB / CF8 / CF8M |
| 3 | Reduced Bore Ball | SS304 / SS316 / Duplex SS |
| 4 | Stem | SS410 / SS304 / SS316 |
| 5 | Seat | PTFE / RPTFE / Nylon / PPL / PEEK |
| 6 | Body Gasket | Graphite / PTFE |
| 7 | Stem Packing | Graphite / PTFE |
| 8 | Thrust Washer | PTFE |
| 9 | O-Ring | NBR / FKM / Viton |
| 10 | Gland | Carbon Steel / Stainless Steel |
| 11 | Handle / Gear Operator | Carbon Steel |
| 12 | Bolts & Nuts | B7 / 2H / B8 / B8M |
Main Dimensions
| Size | DN | L (mm) | H (mm) | W / Gear (mm) | Connection | Pressure Class |
|---|---|---|---|---|---|---|
| 1/2″ | 15 | 108 | 70 | 130 | Flanged / Threaded | 150 / 300 |
| 3/4″ | 20 | 117 | 75 | 130 | Flanged / Threaded | 150 / 300 |
| 1″ | 25 | 127 | 82 | 150 | Flanged / Threaded | 150 / 300 |
| 1-1/2″ | 40 | 165 | 95 | 180 | Flanged / Threaded | 150 / 300 |
| 2″ | 50 | 178 | 105 | 200 | Flanged / BW / SW | 150 / 300 / 600 |
| 3″ | 80 | 203 | 125 | 250 | Flanged / BW | 150 / 300 / 600 |
| 4″ | 100 | 229 | 145 | 300 | Flanged / BW | 150 / 300 / 600 |
| 6″ | 150 | 394 | 180 | 450 | Flanged / BW | 150 / 300 / 600 |
| 8″ | 200 | 457 | 220 | 600 | Flanged / BW | 150 / 300 |
| 10″ | 250 | 533 | 260 | 750 | Flanged / BW | 150 / 300 |
| 12″ | 300 | 610 | 300 | 900 | Flanged / BW | 150 / 300 |
| 16″ | 400 | 686 | 420 | 1200 | Flanged / BW | 150 / 300 |
| 20″ | 500 | 762 | 520 | 1500 | Flanged / BW | 150 / 300 |
| 24″ | 600 | 914 | 620 | 1800 | Flanged / BW | 150 / 300 |
Note: Dimensions above are for reference only. Customized reduced port ball valve dimensions can be provided according to project requirements, valve design and pipeline service conditions.
Manufacturing Standards and Quality Control
ZONCIC is a dependable reduced port ball valve manufacturer committed to stable quality and export-ready supply. We manufacture reduced port ball valve products in accordance with international industrial standards to meet the requirements of reliable shut-off and economical flow control service across global projects.
- API Standards: suitable for oil and gas, petrochemical and industrial pipeline applications
- ASME Standards: suitable for industrial pressure piping and process systems
- DIN Standards: suitable for European engineering and industrial projects
- JIS Standards: suitable for Japanese and Asian industrial market requirements
- GOST Standards: suitable for Russian and CIS industrial projects
Each reduced bore ball valve can be supplied with material certificates, pressure test reports and inspection documentation according to customer and project requirements. You can also refer to the API official website and the ASME official website for standard references.
Applications of Reduced Port Ball Valve
Reduced port ball valve products are widely used in industrial systems that require reliable shut-off, compact structure and cost-effective valve selection. They are suitable for many general service and process applications where full bore flow is not a necessary requirement and efficient valve sizing is preferred.
- Oil and gas auxiliary pipeline systems
- Petrochemical and refinery plants
- Water treatment and utility systems
- Power generation and steam systems
- Chemical processing pipelines
- General industrial shut-off and process applications
If you also need other ball valve solutions, you can visit our ball valve solutions page or go directly to our contact page for a fast quotation.
Why Choose ZONCIC as Your Reduced Port Ball Valve Manufacturer?
- Professional reduced port ball valve manufacturer with industrial export experience
- Support for API, ASME, DIN, JIS and GOST standard production
- Reliable and economical solutions for industrial shut-off service
- Strict quality control from raw material inspection to final testing
- Available floating and trunnion mounted valve designs
- Support for OEM, project documentation and export requirements
- Stable supply capability for contractors, distributors and industrial end users worldwide
Frequently Asked Questions
What is the difference between a reduced port ball valve and a full port ball valve?
A reduced port ball valve has an internal bore smaller than the pipeline diameter, which makes the valve body more compact and economical. A full port ball valve has a bore closer to the pipeline diameter, which helps reduce pressure drop and supports higher flow capacity.
Why choose a reduced port ball valve?
A reduced port ball valve is often selected for its compact structure, lower weight and lower cost. It is a practical option when full bore flow is not required and a cost-effective shut-off solution is preferred.
What standards can your reduced port ball valves be manufactured to?
We can manufacture reduced port ball valves according to API, ASME, DIN, JIS and GOST standards depending on export market requirements and project specifications.
What materials are available for your reduced port ball valves?
We can supply reduced port ball valves in WCB, LCB, CF8, CF8M, stainless steel, carbon steel and alloy materials according to media and service conditions.
Do you offer customized reduced port ball valve solutions?
Yes. We support customized sizes, pressure classes, materials, sealing types, connection forms and project-specific technical requirements for reduced port ball valve applications.
