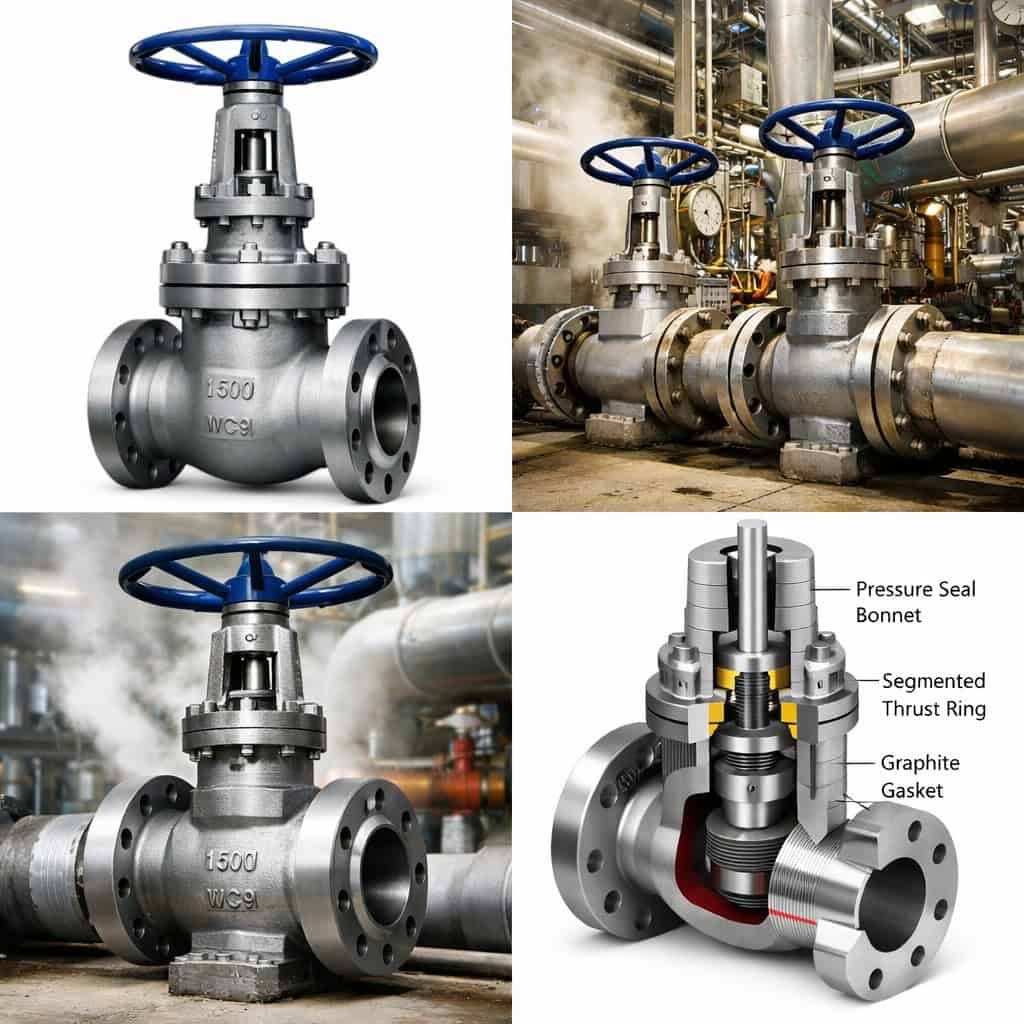

Pressure Seal Gate Valve Supplier
ZONCIC supplies pressure seal gate valves for high pressure and high temperature service in power plants, refinery units, petrochemical facilities, and industrial pipeline systems. Our pressure seal gate valves are designed for dependable shut-off performance, structural reliability, and long-term service in demanding operating conditions.
Looking for a Pressure Seal Gate Valve Supplier?
Send us your size, pressure class, material, quantity, and service condition. We provide fast quotation and technical support for high pressure gate valve and high temperature industrial valve projects.
- Fast quotation support for distributors and EPC projects
- OEM and custom valve support available
- Export packing and project supply support
Industrial Pressure Seal Gate Valve for High Pressure Service
A pressure seal gate valve is specially designed for high pressure and high temperature applications where bonnet sealing integrity becomes critical. Compared with bolted bonnet structures, the pressure seal bonnet design uses internal pressure to improve sealing performance, making it suitable for severe service in power generation, refining, and process industries.
ZONCIC manufactures pressure seal gate valves for steam systems, boiler lines, refinery units, petrochemical plants, and industrial high pressure pipelines. We focus on precision machining, pressure integrity, dependable shut-off, and export-ready production for distributors, EPC contractors, and end users.
If you are also comparing other industrial shut-off valves, you may review our gate valve category, our wedge gate valve page, or browse the complete industrial valves collection.
What Is a Pressure Seal Gate Valve?
A pressure seal gate valve is a high pressure gate valve designed with a pressure seal bonnet structure instead of a conventional bolted bonnet. In this design, internal line pressure helps create a tighter seal between the bonnet and body, which improves sealing integrity in high temperature and high pressure conditions.
Pressure seal gate valves are commonly used in power station steam lines, boiler systems, refinery units, and other severe service applications where pressure retention and bonnet sealing performance are critical. For standard cast steel shut-off valves, you may also review our API 600 gate valve page.
Key Features of Pressure Seal Gate Valve
Pressure Seal Bonnet Design
The pressure seal structure improves bonnet sealing integrity under high pressure and high temperature service.
Suitable for Severe Service
Widely used in steam systems, refinery units, petrochemical plants, and heavy-duty industrial high pressure lines.
Reliable Shut-Off Performance
Designed for dependable isolation in applications where pressure retention and safe operation are essential.
High Temperature Capability
Suitable for thermal and high energy systems requiring structurally stable valve performance.
Pressure Seal Gate Valve for High Pressure and High Temperature Applications
Pressure seal gate valves are commonly selected for main steam lines, boiler systems, refinery thermal process units, petrochemical plants, and industrial high energy services where bonnet sealing integrity is a major concern. Their structure is especially suitable for severe operating environments involving high pressure and elevated temperature.
For industrial valve design reference, you may also review ASME standards and compare related shut-off valve structures in our wedge gate valve page.
Technical Specifications
| Item | Description |
|---|---|
| Valve Type | Pressure Seal Gate Valve |
| Size Range | 2″ to 24″ |
| Pressure Rating | Class 600 / 900 / 1500 / 2500 |
| Body Materials | WC6, WC9, C12A, WCB, CF8, CF8M, Alloy Steel |
| Trim Materials | 13Cr, F6a, SS304, SS316, Stellite Overlay |
| Connection Ends | Butt Weld, Flanged |
| Operation | Manual, Gear Operated, Electric Actuated |
| Design Standard | ASME B16.34, Manufacturer Standard |
| Face to Face | ASME B16.10 |
| Flange Standard | ASME B16.5 / ASME B16.47 |
| Testing Standard | API 598 / Project Standard |
For buyers reviewing severe service valve options, you may compare this product with our gate valve for oil and gas page and related industrial shut-off valve solutions.
Main Parts and Materials
| Part | Standard Material Options |
|---|---|
| Body | WC6, WC9, C12A, WCB, CF8, CF8M |
| Bonnet | WC6, WC9, C12A, WCB, CF8, CF8M |
| Gate / Wedge | 13Cr, SS304, SS316, Stellite Overlay |
| Seat Ring | 13Cr, SS304, SS316, Stellite |
| Stem | F6a, 410 SS, 304 SS, 316 SS |
| Packing | Flexible Graphite |
| Gasket / Seal Ring | Graphite, Pressure Seal Ring |
| Bolting | B7, B8, B8M, L7 |
| Handwheel / Gear | Carbon Steel, Ductile Iron |
Main Dimensions (Class 1500 Example)
| NPS | DN | L (mm) | H Open (mm) | Handwheel / Gear (mm) |
|---|---|---|---|---|
| 2″ | 50 | 216 | 410 | 200 |
| 3″ | 80 | 282 | 520 | 250 |
| 4″ | 100 | 305 | 620 | 280 |
| 6″ | 150 | 403 | 860 | 320 |
| 8″ | 200 | 419 | 1030 | 360 |
| 10″ | 250 | 457 | 1190 | 400 |
| 12″ | 300 | 502 | 1360 | 450 |
Note: Dimensions are for reference only. Final dimensions depend on pressure class, design configuration, and project requirements.
Manufacturing Standards, Quality Control & Packing Delivery
Manufacturing Standards & Quality Control
ZONCIC pressure seal gate valves are manufactured under strict process control to ensure pressure integrity, bonnet sealing reliability, smooth gate operation, and dependable performance in severe service applications.
- Raw material verification and heat number traceability
- Casting or forging inspection before machining
- Precision CNC machining for body, bonnet, gate, stem, and sealing surfaces
- Assembly inspection for pressure seal components and gate movement
- Dimensional inspection and visual appearance check
- Hydrostatic shell test and seat leakage test according to API 598 or project requirements
- PMI, UT, MT, PT and third-party inspection available on request
Packing & Delivery
We provide professional export packing for pressure seal gate valves to ensure safe transportation, reliable product protection, and stable delivery for project and wholesale orders.
- Valve openings protected before packing
- Anti-rust treatment available for export shipment and storage
- Clear marking for size, pressure class, material, and traceability
- Strong export plywood or wooden case packing
- Suitable for container loading and long-distance shipment
- OEM labels, project packing, and export documents supported
Pressure Seal Gate Valve Applications
Main Steam Systems
Widely used in main steam and auxiliary steam lines where bonnet sealing integrity and shut-off reliability are critical.
Power Plant Boiler Systems
Suitable for high pressure and high temperature boiler and thermal operating environments.
Refinery Units
Applied in refinery thermal process units and severe service systems requiring reliable shut-off valves.
Petrochemical Plants
Suitable for high energy and process-critical pipeline systems involving pressure and temperature challenges.
Industrial High Pressure Pipelines
A dependable valve solution for industrial piping systems requiring robust pressure retention and shut-off service.
Heavy Energy Projects
Used in industrial energy and project supply systems where severe operating conditions demand structurally reliable valves.
For standard and general industrial shut-off valve options, you may also review our gate valve product center.
Why Choose Our Pressure Seal Gate Valve
Stable Manufacturing Quality
From raw materials to final testing, every pressure seal gate valve is produced under controlled manufacturing procedures.
Reliable Severe Service Performance
Designed for demanding high pressure and high temperature service where bonnet sealing integrity is essential.
OEM & Project Support
We support customized materials, documentation, inspection requirements, and project-based valve supply.
Professional Export Service
Fast quotation, stable production, and secure packing help global buyers source industrial valves with confidence.
As an experienced pressure seal gate valve supplier, ZONCIC supports distributors, EPC contractors, and industrial project buyers with reliable valve quality, fast quotation, and export-ready delivery.
FAQ
What is the difference between pressure seal gate valve and bolted bonnet gate valve?
A pressure seal gate valve uses internal pressure to improve bonnet sealing performance, while a bolted bonnet valve relies on bolting force and gasket compression. Pressure seal designs are generally preferred in severe high pressure and high temperature service.
Where is a pressure seal gate valve commonly used?
It is commonly used in main steam systems, boiler lines, refinery units, petrochemical plants, and other industrial applications involving high temperature and high pressure.
Can you provide customized pressure seal gate valves?
Yes. We can provide customized sizes, pressure classes, materials, end connections, actuation methods, and inspection requirements according to project specifications.
Do you provide export documents and inspection reports?
Yes. We support material certificates, test reports, inspection records, packing lists, and other export documents required for international valve supply.
Request a Fast Quote for Pressure Seal Gate Valve
Send us your size, pressure class, material, quantity, and service condition. Our team will provide fast quotation and technical support for high pressure gate valve and severe service industrial projects.
- Quotation support for project and distributor orders
- OEM and customized valve support available
- Technical response for high pressure and high temperature applications
- Fast export quotation and packing support
Before sending your RFQ, you may also review our gate valve category and the full industrial valves overview.
