Electric Ball Valve Manufacturer for Industrial Automation
ZONCIC is an electric ball valve manufacturer supplying electric actuated ball valves for industrial automation, remote shut-off, process control, water treatment, oil and gas, chemical processing, HVAC and power plant pipeline systems.
Our electric ball valves combine quarter-turn sealing performance with electric actuator control, supporting on-off operation, modulating control, position feedback, manual override and project-based automation requirements.
Electric Ball Valve Manufacturer for Remote Pipeline Control
Choosing the right electric ball valve manufacturer is important when a pipeline system requires automatic shut-off, stable actuator response, remote control, feedback signal and reliable long-term operation. In industrial automation projects, poor valve and actuator matching may cause slow operation, incomplete opening or closing, leakage, control failure and unnecessary maintenance cost.
An electric ball valve uses an electric actuator to rotate the ball valve stem for open-close or modulating control. Compared with manual valves, electric actuated ball valves can be integrated with PLC systems, control cabinets, building automation systems and process monitoring platforms.
As an experienced electric ball valve manufacturer, ZONCIC supports valve body selection, actuator torque matching, voltage confirmation, control signal selection, pressure testing and export documentation for industrial automation projects.
Electric Ball Valve Automation Reference
Electric ball valve selection should consider actuator torque, power supply, control signal, duty cycle, enclosure protection, valve pressure rating and pipeline media conditions. Customers can review ZONCIC valve standards guidance and industrial automation resources from ISA for general automation and control system reference.

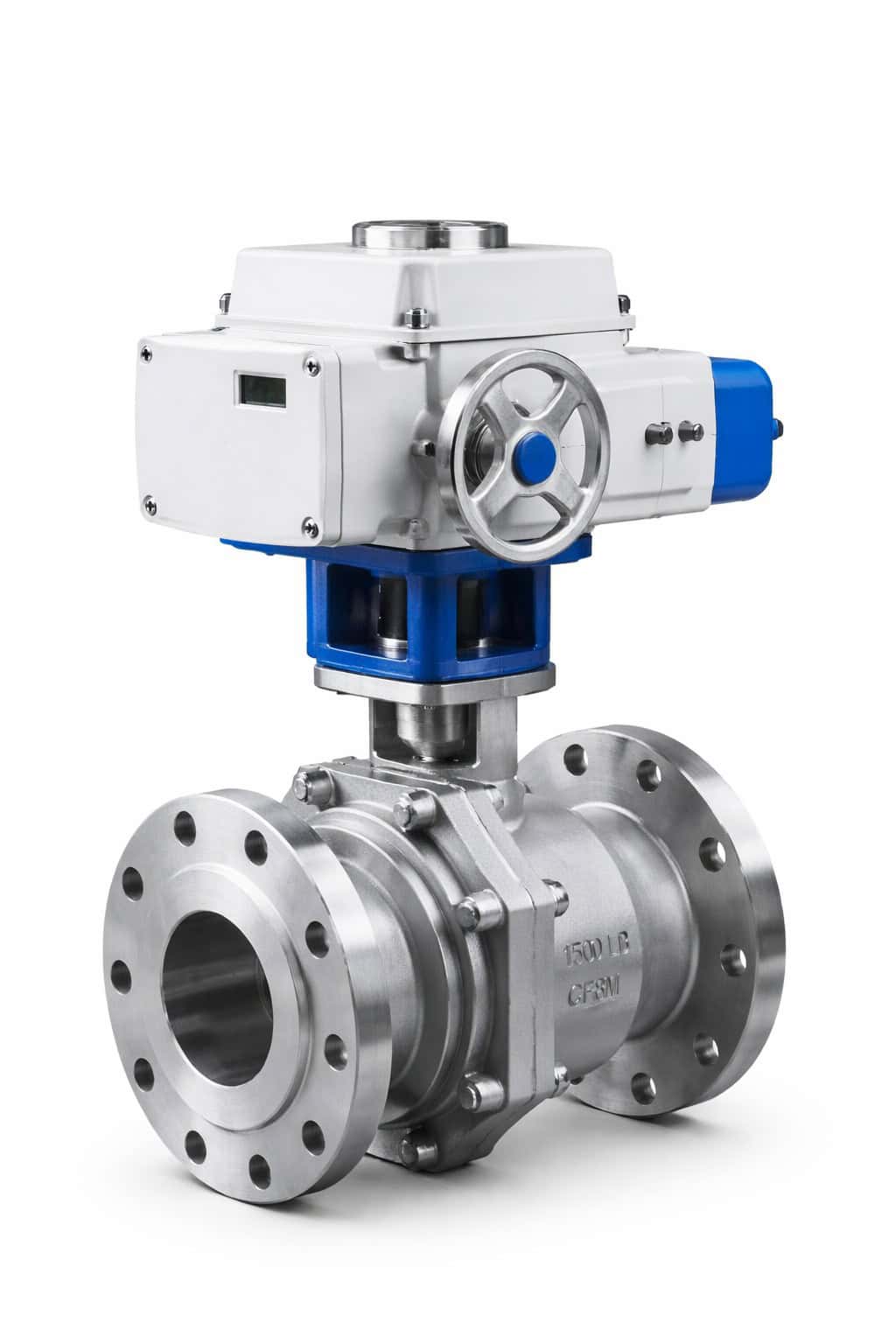

What Is an Electric Ball Valve?
An electric ball valve is an automated quarter-turn ball valve operated by an electric actuator. It combines the tight shut-off performance of a ball valve with electric control, allowing remote operation, automatic switching and process integration in industrial pipeline systems.
ZONCIC supplies electric ball valve manufacturer solutions for customers who need complete valve and actuator assemblies. These valves are widely used where compressed air is unavailable, where electrical control is preferred, or where automated pipeline operation is required.
Key Features of Electric Ball Valves
Remote Operation
Electric actuators support automatic open-close control without manual operation at the pipeline site.
On-Off or Modulating Control
Available with basic switching control or proportional control such as 4-20mA and 0-10V signals.
Manual Override
Manual override options can be supplied for emergency operation and maintenance support.
Control Accessories
Limit switch, position indicator, feedback device and intelligent controller options are available.
Electric Ball Valve Technical Specifications
As an electric ball valve manufacturer, ZONCIC recommends confirming valve size, pressure rating, body material, seat material, actuator type, power supply, control signal and working media before quotation. Correct valve and actuator matching is essential for stable automated pipeline operation.
| Item | Specification |
|---|---|
| Valve Type | Electric Ball Valve / Electric Actuated Ball Valve |
| Size Range | 1/2″ to 12″ (DN15 to DN300) |
| Pressure Rating | Class 150 to Class 600 / PN16 to PN100 |
| Body Materials | WCB, LCB, CF8, CF8M, Duplex Stainless Steel, Alloy Steel |
| Ball Materials | SS304, SS316, SS316L, Duplex Stainless Steel |
| Seat Materials | PTFE, RPTFE, PPL, Metal Seat Optional |
| End Connections | Flanged, Threaded, Socket Weld, Butt Weld |
| Actuator Type | On-Off Type, Modulating Type |
| Power Supply | 24V DC, 110V AC, 220V AC, 380V AC |
| Control Signal | Switch Signal, 4-20mA, 0-10V |
| Protection Class | IP65 / IP67 Optional |
| Accessories | Position Indicator, Limit Switch, Manual Override, Intelligent Positioner |
| Manufacturing Standards | API, ASME, DIN, JIS, GOST |
| Design Standard | API 6D, ASME B16.34, ISO 17292 |
| Face to Face | ASME B16.10, API 6D, DIN |
| Flange Standard | ASME B16.5, DIN, JIS, GOST |
| Inspection and Testing | API 598, API 6D, ISO 5208 |
| Applicable Temperature | -29°C to 200°C depending on valve material and seat selection |
| Applicable Media | Water, Oil, Gas, Steam, Chemical Media, Process Fluids |
Main Parts and Materials
| No. | Part Name | Material |
|---|---|---|
| 1 | Valve Body | WCB / CF8 / CF8M / LCB |
| 2 | End Cap / Bonnet | WCB / CF8 / CF8M / LCB |
| 3 | Ball | SS304 / SS316 / SS316L |
| 4 | Stem | SS410 / SS304 / SS316 |
| 5 | Seat | PTFE / RPTFE / PPL |
| 6 | Body Gasket | Graphite / PTFE |
| 7 | Stem Packing | PTFE / Graphite |
| 8 | Bracket | Carbon Steel / Stainless Steel |
| 9 | Electric Actuator | Aluminum Alloy / Engineering Housing |
| 10 | Manual Override Device | Carbon Steel / Stainless Steel |
| 11 | Position Indicator | Engineering Plastic / Aluminum |
| 12 | Bolts & Nuts | B7 / 2H / SS304 / SS316 |
Main Dimensions
| Size | DN | L (mm) | H (mm) | Actuator Height (mm) | Connection | Pressure Class |
|---|---|---|---|---|---|---|
| 1/2″ | 15 | 108 | 70 | 190 | Flanged / Threaded | 150 / 300 |
| 3/4″ | 20 | 117 | 75 | 205 | Flanged / Threaded | 150 / 300 |
| 1″ | 25 | 127 | 82 | 220 | Flanged / Threaded | 150 / 300 |
| 1-1/2″ | 40 | 165 | 95 | 250 | Flanged / Threaded | 150 / 300 |
| 2″ | 50 | 178 | 105 | 280 | Flanged / Threaded / Socket Weld | 150 / 300 / 600 |
| 3″ | 80 | 203 | 125 | 340 | Flanged / Butt Weld | 150 / 300 / 600 |
| 4″ | 100 | 229 | 145 | 390 | Flanged / Butt Weld | 150 / 300 / 600 |
| 6″ | 150 | 394 | 180 | 500 | Flanged / Butt Weld | 150 / 300 / 600 |
| 8″ | 200 | 457 | 220 | 620 | Flanged | 150 / 300 |
| 10″ | 250 | 533 | 260 | 760 | Flanged | 150 / 300 |
| 12″ | 300 | 610 | 300 | 900 | Flanged | 150 / 300 |
Note: Dimensions above are for reference only. Customized electric ball valve dimensions can be provided according to API, ASME, DIN, JIS, GOST standards and specific automation project requirements.
Manufacturing Standards and Quality Control
ZONCIC manufactures electric ball valves according to international industrial standards for pipeline automation and process control systems. Each electric actuated ball valve can be supplied with material certificates, pressure test reports and assembly inspection records according to project requirements.
- API and ASME standard support for oil, gas and process pipeline applications
- DIN, JIS and GOST standard options for different export markets
- Raw material inspection and valve body dimensional checking
- Hydrostatic shell test and seat leakage test before assembly
- Electric actuator torque, travel and feedback signal inspection
- Export-grade packing with clear marking and project documentation
Electric Ball Valve Applications
Electric ball valves are widely used where remote operation, automatic switching and system integration are required. ZONCIC supports electric ball valve manufacturer solutions for both on-off control and modulating control applications across industrial automation projects.
Related Ball Valve and Industrial Valve Solutions
Electric Ball Valve FAQ
What is an electric ball valve used for?
An electric ball valve is used for automatic shut-off, remote operation and process control in industrial pipeline systems.
How to choose an electric ball valve manufacturer?
An electric ball valve manufacturer should support valve body selection, actuator torque matching, control signal confirmation, testing and documentation.
What power supplies are available for electric actuators?
Common options include 24V DC, 110V AC, 220V AC and 380V AC depending on control system requirements.
What is the difference between on-off and modulating electric ball valves?
On-off electric ball valves are used for fully open or fully closed operation, while modulating electric ball valves support proportional flow control.
What information is needed for quotation?
Please provide valve size, pressure class, material, media, temperature, actuator voltage, control signal and quantity.
Need an Electric Ball Valve Manufacturer?
Send your valve size, pressure class, material, actuator voltage, control signal and quantity. ZONCIC will provide a practical electric ball valve solution for your automation project.
Send Your Inquiry
