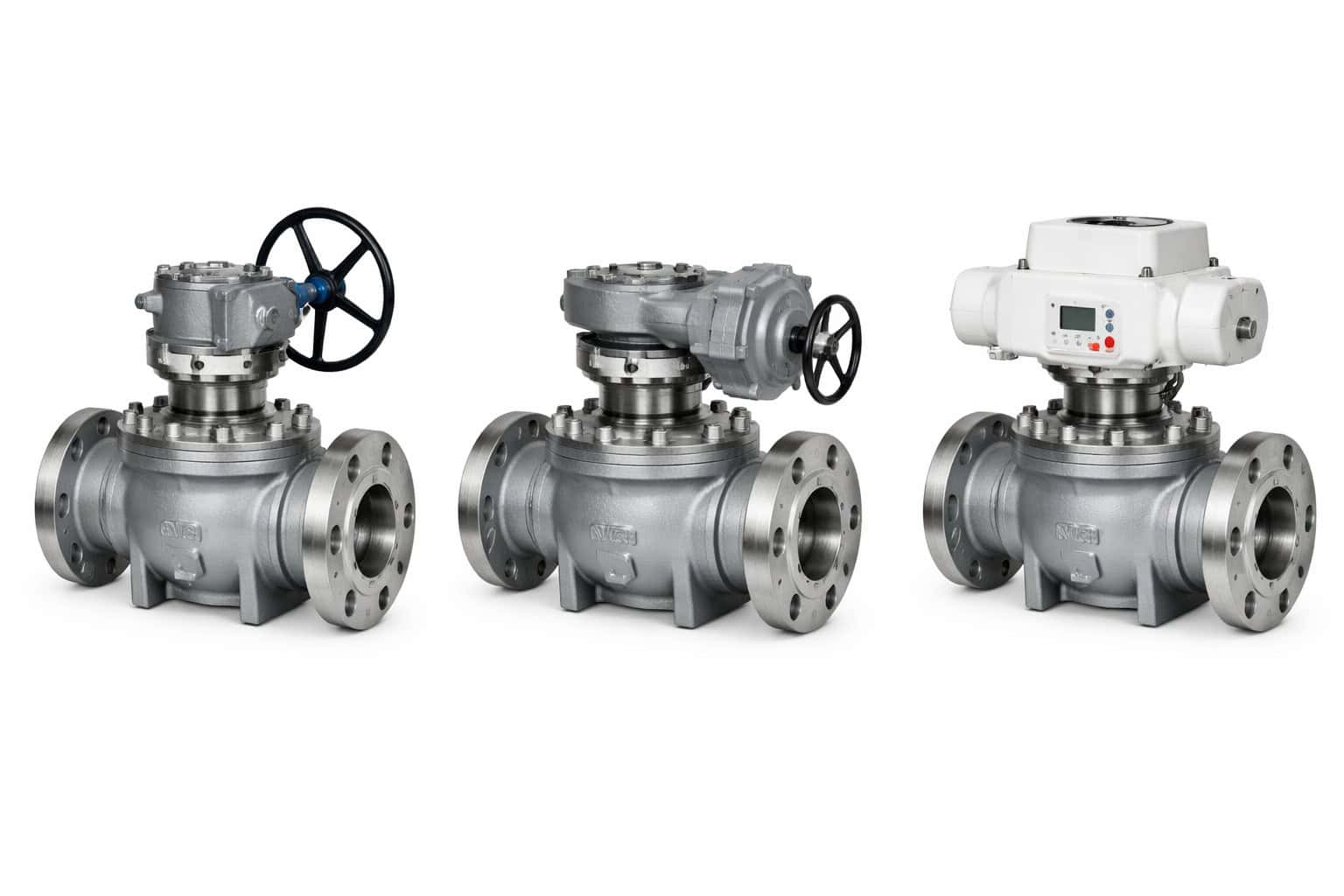

Top Entry Ball Valve Manufacturer for Easy Maintenance and Critical Service
ZONCIC is a professional top entry ball valve manufacturer in China, supplying reliable top entry ball valve solutions for oil and gas, petrochemical, offshore, power generation and industrial pipeline systems. Our top entry ball valve products are designed for dependable shut-off, reduced downtime and in-line maintenance in critical service applications where valve removal is difficult or costly.
Request a Quote
What Is a Top Entry Ball Valve?
A top entry ball valve is a ball valve designed with a body structure that allows internal components such as the ball, seats and stem assembly to be accessed from the top of the valve body. This design enables inspection, maintenance and component replacement without removing the entire valve from the pipeline.
As an experienced top entry ball valve manufacturer, ZONCIC supplies reliable valves for critical service applications where downtime must be minimized and in-line maintenance is important. A top entry ball valve is widely used in oil and gas, offshore platforms, refineries and large process plants that require maintainability together with dependable shut-off performance.
If your project also needs other ball valve designs, you can visit our ball valve category or explore our full industrial valves range.
Key Features of Top Entry Ball Valve
- Top entry body design for convenient in-line maintenance
- Reduced downtime during inspection, repair and seat replacement
- Suitable for critical service and large pipeline systems
- Reliable quarter-turn shut-off performance
- Commonly available in trunnion mounted design
- Optional fire-safe, anti-static and metal seat construction
- Suitable for flanged and butt weld end connections
- Applicable for oil, gas, steam, water and chemical media
Technical Specifications
As a reliable top entry ball valve manufacturer, ZONCIC supplies top entry ball valve products in different pressure classes, sizes, materials and sealing configurations. We support customized production according to maintenance requirements, service conditions and project specifications.
| Item | Specification |
|---|---|
| Valve Type | Top Entry Ball Valve |
| Size Range | 2″ to 48″ (DN50 to DN1200) |
| Pressure Rating | Class 150 to Class 2500 / PN16 to PN420 |
| Body Design | Top Entry |
| Valve Structure | Trunnion Mounted Ball Valve |
| Body Materials | WCB, LCB, CF8, CF8M, Duplex Stainless Steel, Alloy Steel |
| Ball Materials | SS304, SS316, SS316L, Duplex Stainless Steel |
| Seat Materials | PTFE, RPTFE, Nylon, PEEK, Devlon, Metal Seat Optional |
| End Connections | Flanged, Butt Weld |
| Operation | Lever, Gear, Pneumatic Actuator, Electric Actuator, Hydraulic Actuator |
| Manufacturing Standards | API, ASME, DIN, JIS, GOST |
| Design Standard | API 6D, ASME B16.34, ISO 17292 |
| Face to Face | API 6D, ASME B16.10 |
| Flange Standard | ASME B16.5, ASME B16.47, DIN, JIS, GOST |
| Inspection and Testing | API 6D, API 598, ISO 5208 |
| Applicable Temperature | -46°C to 200°C (depending on body and seat material) |
| Applicable Media | Oil, Gas, Steam, Water, Chemical Media, Process Fluids |
Main Parts and Materials
| No. | Part Name | Material |
|---|---|---|
| 1 | Body | WCB / LCB / CF8 / CF8M |
| 2 | Top Cover / Bonnet | WCB / LCB / CF8 / CF8M |
| 3 | Ball | SS304 / SS316 / Duplex SS |
| 4 | Stem | SS410 / SS304 / SS316 |
| 5 | Upper Trunnion | SS410 / SS304 / SS316 |
| 6 | Lower Trunnion | SS410 / SS304 / SS316 |
| 7 | Seat Ring | PTFE / RPTFE / Nylon / PEEK |
| 8 | Body Gasket | Graphite / Stainless Steel + Graphite |
| 9 | Stem Packing | Graphite / PTFE |
| 10 | O-Ring | NBR / FKM / Viton |
| 11 | Spring | Inconel / Stainless Steel |
| 12 | Bolts & Nuts | B7 / 2H / B8 / B8M |
Main Dimensions
| Size | DN | L (mm) | H (mm) | W / Gear (mm) | Connection | Pressure Class |
|---|---|---|---|---|---|---|
| 2″ | 50 | 178 | 185 | 260 | Flanged | 150 / 300 / 600 |
| 3″ | 80 | 203 | 220 | 320 | Flanged | 150 / 300 / 600 |
| 4″ | 100 | 229 | 260 | 380 | Flanged | 150 / 300 / 600 |
| 6″ | 150 | 394 | 340 | 520 | Flanged / BW | 150 / 300 / 600 / 900 |
| 8″ | 200 | 457 | 410 | 680 | Flanged / BW | 150 / 300 / 600 / 900 |
| 10″ | 250 | 533 | 490 | 850 | Flanged / BW | 150 / 300 / 600 |
| 12″ | 300 | 610 | 570 | 1000 | Flanged / BW | 150 / 300 / 600 |
| 16″ | 400 | 686 | 720 | 1280 | Flanged / BW | 150 / 300 |
| 20″ | 500 | 762 | 880 | 1560 | Flanged / BW | 150 / 300 |
| 24″ | 600 | 914 | 1050 | 1850 | Flanged / BW | 150 / 300 |
Note: Dimensions above are for reference only. Customized top entry ball valve dimensions can be provided according to project requirements, pressure class and industrial service conditions.
Manufacturing Standards and Quality Control
ZONCIC is a dependable top entry ball valve manufacturer committed to stable quality and export-ready supply. We manufacture top entry ball valve products in accordance with international industrial standards to meet the requirements of critical service and maintainability-focused pipeline systems.
- API Standards: suitable for oil and gas, petrochemical and industrial critical service applications
- ASME Standards: suitable for industrial pressure piping and severe service systems
- DIN Standards: suitable for European industrial and engineering projects
- JIS Standards: suitable for Japanese and Asian industrial market requirements
- GOST Standards: suitable for Russian and CIS industrial projects
Each top entry ball valve can be supplied with material certificates, pressure test reports, NDE records and inspection documentation according to customer and project requirements. You can also refer to the API official website and the ASME official website for standard references.
Applications of Top Entry Ball Valve
Top entry ball valve products are widely used in industrial systems that require reliable shut-off, easy maintenance and reduced downtime. They are especially suitable for critical service pipeline systems where valve removal from the line is difficult, expensive or unsafe.
- Oil and gas transmission pipeline systems
- Petrochemical and refinery plants
- Offshore platforms and marine applications
- Power generation and steam systems
- Chemical processing plants
- General industrial critical service pipeline applications
If you need additional valve options, you can also visit our ball valve solutions page or go directly to our contact page for a fast quotation.
Why Choose ZONCIC as Your Top Entry Ball Valve Manufacturer?
- Professional top entry ball valve manufacturer with industrial export experience
- Support for API, ASME, DIN, JIS and GOST standard production
- Reliable solutions for easy maintenance and critical service conditions
- Strict quality control from raw material inspection to final testing
- Available fire-safe, anti-static and metal seat design options
- Support for OEM, project documentation and export requirements
- Stable supply capability for contractors, distributors and industrial end users worldwide
Frequently Asked Questions
What is the advantage of a top entry ball valve?
The main advantage of a top entry ball valve is easier maintenance. Internal parts can be inspected or replaced from the top without removing the whole valve from the pipeline.
Why choose a top entry ball valve for critical service?
A top entry ball valve is often selected for critical service because it helps reduce downtime, supports in-line maintenance and improves service efficiency in large or hard-to-access pipeline systems.
Where are top entry ball valves commonly used?
Top entry ball valve products are commonly used in oil and gas, petrochemical, offshore, power generation and other critical service applications where downtime must be minimized and in-line maintenance is valuable.
What materials are available for your top entry ball valves?
We can supply top entry ball valves in WCB, LCB, CF8, CF8M, stainless steel, carbon steel and special alloy materials according to media and service conditions.
Do you offer customized top entry ball valve solutions?
Yes. We support customized sizes, pressure classes, materials, sealing types, operation methods and project-specific technical requirements for top entry ball valve applications.
Request a Quote for Top Entry Ball Valve
Looking for a reliable top entry ball valve manufacturer in China? Contact ZONCIC today for catalogs, technical support, drawings and competitive quotations for your project.
