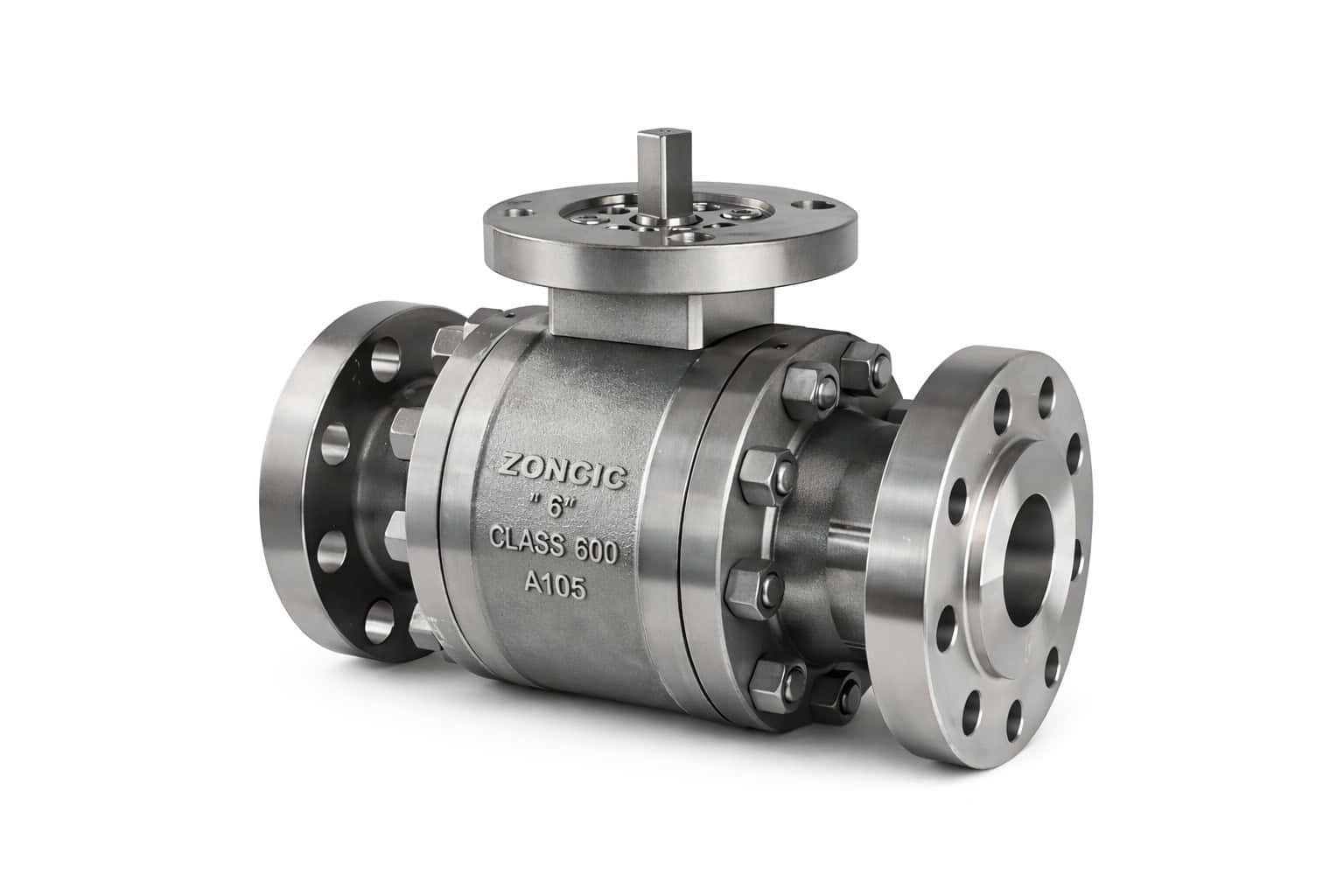

Forged Ball Valve Manufacturer for High Pressure Industrial Service
Trusted forged ball valve manufacturer supplying high-performance forged steel ball valves in A105, LF2, F304, and F316 materials for oil & gas, petrochemical, power plant, chemical processing, and industrial high pressure pipeline systems worldwide.
Request a Quote
What Is a Forged Ball Valve?
A forged ball valve is a quarter-turn shut-off valve manufactured from forged steel materials such as A105, LF2, F304, and F316. Compared with cast body ball valves, forged ball valves provide higher density, stronger mechanical performance, and better pressure resistance, making them especially suitable for high pressure, high temperature, and critical service applications.
As a professional forged ball valve manufacturer, ZONCIC provides industrial forged ball valves for global pipeline projects requiring secure shut-off, durable body construction, and compliance with international valve standards. Forged ball valves are widely used in oil and gas transmission, petrochemical units, power plants, and industrial process piping systems.
Key Features of Forged Ball Valve from Manufacturer
- Forged steel body construction for higher strength and durability
- Suitable for high pressure and severe service applications
- Reliable quarter-turn shut-off performance
- Available in A105, LF2, F304, F316, and customized alloy steel materials
- Optional flanged, threaded, socket weld, and butt weld connections
- Compact structure with strong pressure-bearing capability
- Optional fire-safe and anti-static design
- Applicable for oil, gas, steam, water, and industrial process media
Forged Ball Valve Manufacturer Technical Specifications
Our forged steel ball valve products are manufactured for demanding industrial service conditions and can be customized according to body material, pressure class, end connection, sealing requirements, and end user project specifications.
| Item | Specification |
|---|---|
| Valve Type | Forged Steel Ball Valve / Forged Ball Valve |
| Size Range | 1/2″ to 8″ (DN15 to DN200) |
| Pressure Rating | Class 150 to Class 2500 / PN16 to PN420 |
| Body Materials | A105, LF2, F304, F316, F304L, F316L, Alloy Steel |
| Ball Materials | SS304, SS316, SS316L, Duplex Stainless Steel |
| Seat Materials | PTFE, RPTFE, PPL, PEEK, Metal Seat Optional |
| End Connections | Flanged, Threaded, Socket Weld, Butt Weld |
| Operation | Lever, Gear, Pneumatic Actuator, Electric Actuator |
| Manufacturing Standards | API, ASME, DIN, JIS, GOST |
| Design Standard | API 608, ASME B16.34, BS 5351 |
| Face to Face | ASME B16.10, API 6D, DIN |
| Flange Standard | ASME B16.5, DIN, JIS, GOST |
| Testing Standard | API 598, API 6D, ISO 5208 |
| Applicable Temperature | -46°C to 425°C (depending on material and seat selection) |
| Applicable Media | Water, Oil, Gas, Steam, Chemical Media, High Pressure Process Fluids |
Our forged ball valves are designed and manufactured according to recognized industrial standards such as API standards and ASME standards, helping ensure dependable shut-off performance in high pressure industrial flow systems.
Main Parts and Materials
| No. | Part Name | Material |
|---|---|---|
| 1 | Body | A105 / LF2 / F304 / F316 |
| 2 | End Cap / Side Piece | A105 / LF2 / F304 / F316 |
| 3 | Ball | SS304 / SS316 / SS316L |
| 4 | Stem | SS410 / SS304 / SS316 |
| 5 | Seat | PTFE / RPTFE / PPL / PEEK |
| 6 | Body Gasket | Graphite / PTFE |
| 7 | Stem Packing | Graphite / PTFE |
| 8 | Thrust Washer | PTFE |
| 9 | Gland | Carbon Steel / Stainless Steel |
| 10 | Handle / Gear Operator | Carbon Steel |
| 11 | Bolts & Nuts | B7 / 2H / B8 / B8M |
| 12 | O-Ring | NBR / Viton / FKM |
Main Dimensions
| Size | DN | L (mm) | H (mm) | W / Gear (mm) | Connection | Pressure Class |
|---|---|---|---|---|---|---|
| 1/2″ | 15 | 79 | 68 | 125 | Threaded / SW / BW | 800 / 1500 / 2500 |
| 3/4″ | 20 | 92 | 74 | 135 | Threaded / SW / BW | 800 / 1500 / 2500 |
| 1″ | 25 | 111 | 82 | 150 | Threaded / SW / BW | 800 / 1500 / 2500 |
| 1-1/2″ | 40 | 140 | 98 | 180 | Threaded / SW / BW / Flanged | 600 / 800 / 1500 |
| 2″ | 50 | 178 | 112 | 200 | Threaded / SW / BW / Flanged | 600 / 800 / 1500 |
| 3″ | 80 | 203 | 145 | 260 | Flanged / BW | 300 / 600 / 900 |
| 4″ | 100 | 229 | 170 | 320 | Flanged / BW | 300 / 600 / 900 |
| 6″ | 150 | 394 | 265 | 480 | Flanged | 300 / 600 |
| 8″ | 200 | 457 | 325 | 620 | Flanged | 300 / 600 |
Note: Dimensions above are for reference only. Customized forged steel ball valve dimensions can be provided according to API, ASME, DIN, JIS, GOST standards and specific project requirements.
Manufacturing Standards and Quality Control
ZONCIC manufactures forged steel ball valves in accordance with international industrial standards to meet the requirements of high pressure pipeline and process systems. We support American, European, Japanese, and Russian standard systems for industrial projects and export supply.
- API Standards: suitable for oil & gas, petrochemical, and industrial high pressure applications
- ASME Standards: suitable for industrial pressure piping and severe service systems
- DIN Standards: suitable for European industrial and engineering projects
- JIS Standards: suitable for Japanese and Asian industrial market requirements
- GOST Standards: applicable for Russian and CIS industrial projects
Each forged steel ball valve can be supplied with material certificates, pressure test reports, NDE records, and inspection documentation according to customer and project requirements.
You can also explore our ball valve solutions, including flanged ball valve, trunnion ball valve, and threaded ball valve for different industrial applications.
Applications of Forged Steel Ball Valve
Forged steel ball valves are widely used in industrial systems that require compact structure, high strength, and reliable shut-off under high pressure and severe service conditions. They are especially suitable for critical pipeline systems and engineering projects where safety, durability, and compliance are essential.
- Oil and gas transmission pipelines
- Petrochemical and refinery plants
- Power generation and steam systems
- Chemical processing units
- High pressure utility and process lines
- Industrial pipeline systems with severe service conditions
Why Choose ZONCIC as Your Forged Ball Valve Manufacturer?
- Professional experience in forged ball valve manufacturer
- Support for API, ASME, DIN, JIS, and GOST standard production
- Available A105, LF2, F304, F316, and customized alloy steel materials
- Reliable solutions for high pressure and critical service applications
- Strict quality control from raw material inspection to final testing
- Support for OEM, project documentation, and export requirements
- Stable supply for contractors, distributors, and industrial end users worldwide
Frequently Asked Questions
What is a forged steel ball valve?
A forged steel ball valve is a ball valve manufactured from forged steel material such as A105, LF2, F304, or F316. It offers better mechanical strength and pressure resistance than many standard cast body valves, making it suitable for high pressure industrial service.
What is the advantage of forged steel ball valve over cast ball valve?
The main advantage is higher body strength, better density, and improved pressure-bearing performance. Forged steel ball valves are preferred for severe service conditions, higher pressure classes, and compact but strong valve construction.
What materials are available for forged steel ball valves?
We can supply forged steel ball valves in A105, LF2, F304, F316, F304L, F316L, and other customized alloy steel materials according to service conditions and project specifications.
Can forged steel ball valves be supplied in flanged and welded ends?
Yes. We can provide forged steel ball valves with flanged, threaded, socket weld, and butt weld end connections according to installation requirements and pipeline standards.
Do you offer customized forged steel ball valve solutions?
Yes. We support customized sizes, pressure classes, materials, sealing types, connection forms, and project-specific technical requirements for industrial forged steel ball valve applications.
