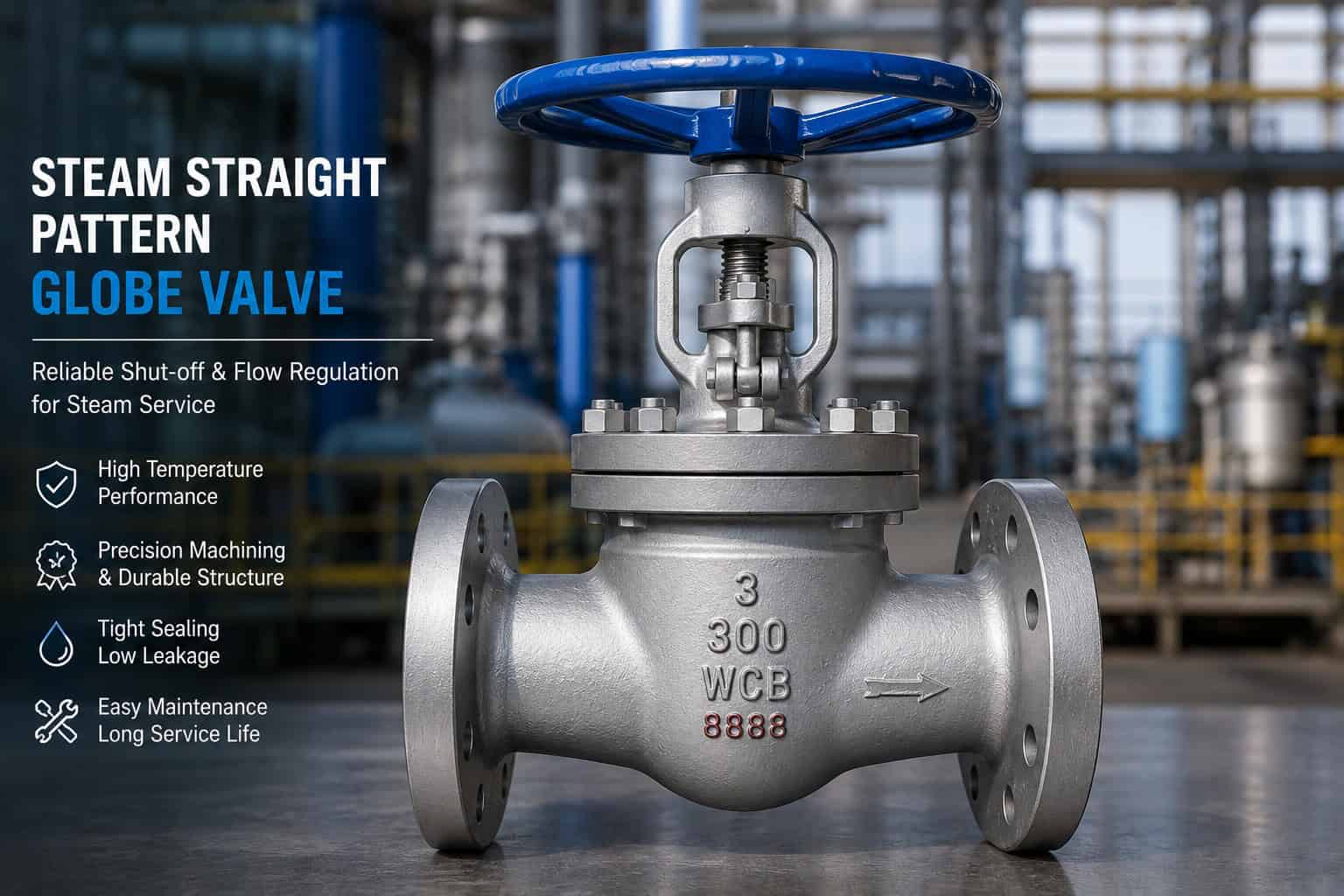

Steam Straight Pattern Globe Valve Manufacturer
ZONCIC is a steam straight pattern globe valve manufacturer supplying WCB, stainless steel and alloy steel globe valves for boiler steam lines, thermal systems, refinery utilities, power plants and industrial steam pipeline service.
Our steam straight pattern globe valves are designed for reliable shut-off, stable throttling, high temperature sealing and practical maintenance in demanding steam and process pipeline applications.
Steam Straight Pattern Globe Valve Manufacturer for Boiler and Utility Lines
Choosing the right steam straight pattern globe valve manufacturer is important when steam pipelines require dependable shut-off, controlled throttling, temperature resistance and stable sealing. In boiler rooms, power plants and refinery steam systems, incorrect valve selection may lead to leakage, pressure loss, premature seat wear or unsafe operation.
A steam straight pattern globe valve uses a Z-pattern flow path with the inlet and outlet arranged in line. This structure is widely used in industrial steam systems because it provides reliable shut-off, good regulation performance and practical maintenance for standard pipeline layouts.
ZONCIC supports steam straight pattern globe valve solutions with suitable body material, trim material, gasket, packing, pressure class, flange standard and testing documentation according to project conditions.
Steam Globe Valve Engineering Reference
Steam globe valve selection should consider working pressure, saturated or superheated steam temperature, pressure drop, sealing material, flow regulation demand and installation direction. Customers can review ZONCIC valve standards, the Spirax Sarco steam engineering reference, and the Wermac globe valve guide for general technical background.
What Is a Steam Straight Pattern Globe Valve?
A steam straight pattern globe valve is a linear motion valve used for shut-off and flow regulation in steam pipelines. The straight pattern body keeps the inlet and outlet in one line, while the internal seat design allows the disc to move vertically for controlled opening and closing.
Compared with a Y pattern globe valve, a straight pattern globe valve usually has higher pressure drop, but it offers standard structure, broad availability, strong sealing and economical selection for many steam systems.
Why Use Straight Pattern Globe Valve for Steam Service?
Reliable Shut-Off
The disc and seat structure supports dependable sealing for steam isolation and utility pipeline control.
Stable Throttling
Linear stem movement helps provide better regulation than many quarter-turn isolation valves.
Standard Installation
Straight-through pipeline connection is practical for common steam and industrial piping layouts.
Material Flexibility
WCB, stainless steel, WC6, WC9 and other materials can be selected according to steam temperature and pressure.
Steam Straight Pattern Globe Valve Technical Specifications
As a steam straight pattern globe valve manufacturer, ZONCIC recommends confirming valve size, pressure class, body material, trim material, flange standard, working steam temperature and testing requirements before quotation.
| Item | Specification |
|---|---|
| Valve Type | Steam Straight Pattern Globe Valve / Z Pattern Globe Valve |
| Size Range | 1/2″ to 24″ / DN15 to DN600 |
| Pressure Rating | Class 150, 300, 600, 900, 1500, 2500 / PN16 to PN420 |
| Body Materials | WCB, WC6, WC9, LCB, CF8, CF8M, Alloy Steel |
| Disc / Seat Materials | 13Cr, SS304, SS316, Stellite Hardfaced Optional |
| Stem Materials | 13Cr, SS304, SS316, F6a |
| Bonnet Type | Bolted Bonnet, Pressure Seal Bonnet Optional |
| End Connection | Flanged, Butt Weld, Socket Weld, Threaded |
| Operation | Handwheel, Gear Operator, Electric Actuator |
| Design Standard | ASME B16.34, BS 1873, DIN, JIS, GOST |
| Face to Face | ASME B16.10, EN 558, DIN Standard |
| Flange Standard | ASME B16.5, ASME B16.47, EN, DIN, JIS |
| Inspection and Testing | API 598, EN 12266, ISO 5208 |
| Applicable Media | Saturated Steam, Superheated Steam, Hot Water, Thermal Fluid, Process Media |
| Temperature Range | Depends on material and trim selection; high temperature steam service available |
Main Parts and Materials
| No. | Part Name | Material Options |
|---|---|---|
| 1 | Body | WCB / WC6 / WC9 / LCB / CF8 / CF8M |
| 2 | Bonnet | WCB / WC6 / WC9 / LCB / CF8 / CF8M |
| 3 | Disc | 13Cr / SS304 / SS316 / Stellite Hardfaced |
| 4 | Seat Ring | 13Cr / SS304 / SS316 / Stellite Hardfaced |
| 5 | Stem | 13Cr / F6a / SS304 / SS316 |
| 6 | Packing | Flexible Graphite / PTFE for lower temperature service |
| 7 | Gasket | Spiral Wound Gasket / Graphite / Metal Ring Optional |
| 8 | Bolts & Nuts | B7 / 2H / B8 / B8M / L7 |
| 9 | Handwheel | Ductile Iron / Carbon Steel |
Reference Dimensions
The following dimensions are reference data for steam straight pattern globe valve selection. Final dimensions can be adjusted according to ASME, DIN, JIS or project specification.
| Size | DN | Class 150 L | Class 300 L | Class 600 L | End Connection |
|---|---|---|---|---|---|
| 1/2″ | 15 | 108 mm | 152 mm | 165 mm | Flanged / SW / NPT |
| 1″ | 25 | 127 mm | 203 mm | 216 mm | Flanged / SW / NPT |
| 2″ | 50 | 203 mm | 267 mm | 292 mm | Flanged / BW |
| 4″ | 100 | 292 mm | 356 mm | 432 mm | Flanged / BW |
| 6″ | 150 | 406 mm | 444 mm | 559 mm | Flanged / BW |
| 8″ | 200 | 495 mm | 559 mm | 660 mm | Flanged / BW |
| 12″ | 300 | 698 mm | 762 mm | 838 mm | Flanged / BW |
Note: Dimension data is for reference only. For final quotation, please provide size, pressure class, connection standard and steam working condition.
Steam Straight Pattern vs Y Pattern Globe Valve
For steam systems, both straight pattern globe valve and Y pattern globe valve can be used. The choice depends mainly on pressure drop, flow rate, budget and installation requirements.
| Item | Steam Straight Pattern Globe Valve | Y Pattern Globe Valve |
|---|---|---|
| Pressure Drop | Higher | Lower |
| Structure | Standard Z-pattern body | Inclined body design |
| Steam Use | General steam shut-off and regulation | High flow steam systems |
| Cost | Usually more economical | Usually higher |
Learn more from our comparison article: Straight Pattern vs Y Pattern Globe Valve for Steam Service.
Steam Straight Pattern Globe Valve Applications
Manufacturing and Quality Control
- Raw material verification and heat number traceability
- Body and bonnet dimensional inspection before assembly
- Disc, seat and stem material checking for steam service
- Hydrostatic shell test and seat leakage test according to project requirements
- Stem packing and gasket selection for temperature condition
- PMI, NDE and third-party inspection support when required
- Export plywood case packing with clear valve marking
Steam Straight Pattern Globe Valve FAQ
What is a steam straight pattern globe valve?
A steam straight pattern globe valve is a Z-pattern globe valve used for shut-off and throttling in steam pipelines, boiler systems and industrial utility lines.
How to choose a steam straight pattern globe valve manufacturer?
A steam straight pattern globe valve manufacturer should support material selection, trim selection, pressure class matching, testing and project documentation.
Is straight pattern globe valve suitable for steam service?
Yes. Straight pattern globe valves are widely used for steam shut-off and flow regulation, especially where standard installation and economical selection are required.
What material is suitable for steam globe valves?
WCB is commonly used for general steam service. WC6, WC9, stainless steel or alloy materials can be selected for higher temperature or special media conditions.
What information is needed for quotation?
Please provide valve size, pressure class, material, steam temperature, working pressure, connection standard, operation type and quantity.
Need a Steam Straight Pattern Globe Valve Manufacturer?
Send your valve size, pressure class, steam temperature, body material, connection standard and quantity. ZONCIC will provide a practical steam straight pattern globe valve solution for your project.
