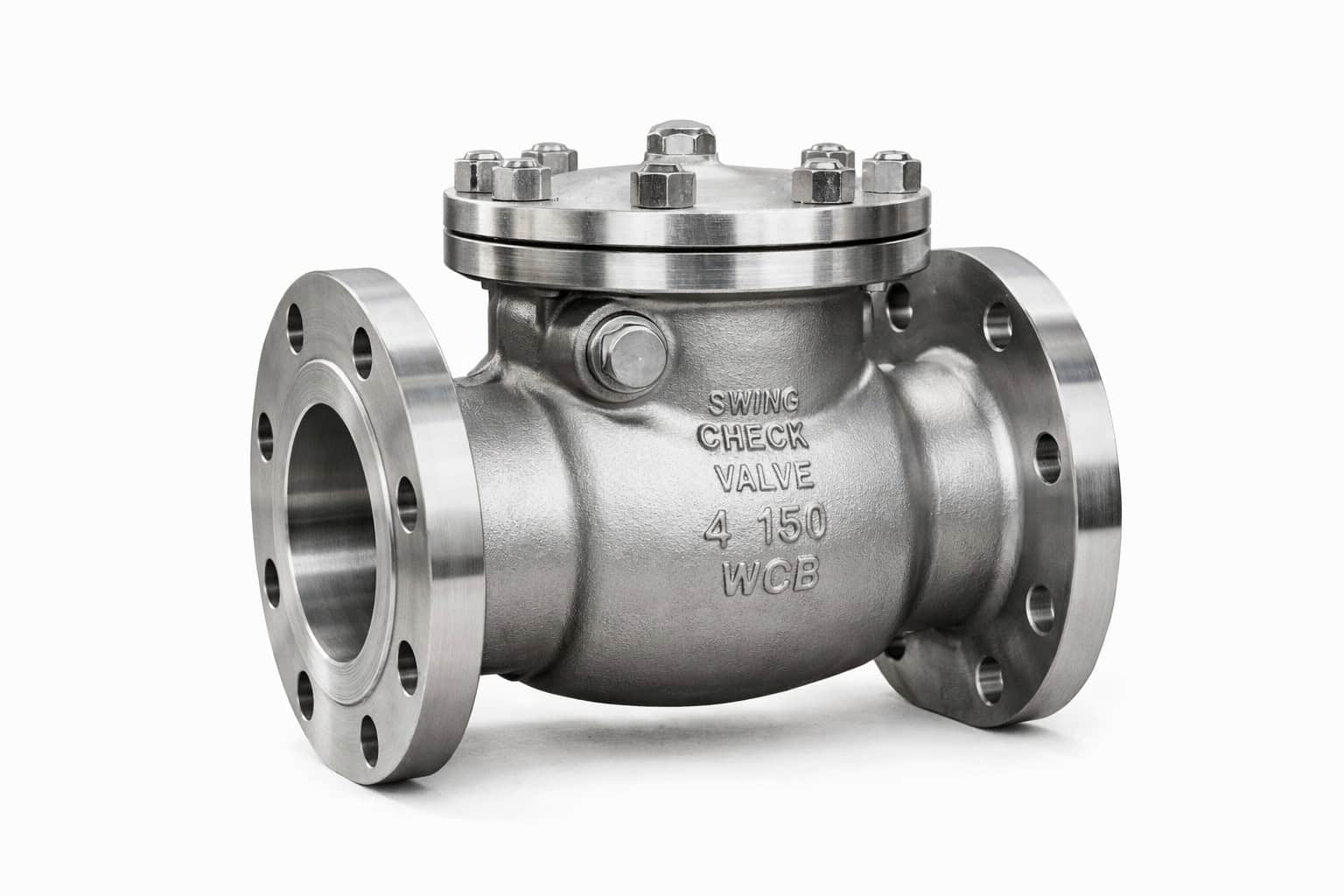

Swing Check Valve
Industrial swing check valves for dependable one-way flow control, low pressure drop, and long service life in demanding pipeline applications.
Industrial Swing Check Valve Supplier
A swing check valve is an automatic non-return valve designed to allow flow in one direction and prevent reverse flow when system pressure changes. The disc swings open under forward flow and closes by gravity and reverse pressure, helping protect pumps, compressors, and pipelines from backflow damage.
As a professional industrial valve manufacturer, Wenzhou Zoncic Machinery Technology Co., Ltd supplies swing check valves in carbon steel, stainless steel, alloy steel, and special materials for oil & gas, petrochemical, water treatment, power generation, and general industrial service.
- Reliable backflow prevention for industrial pipeline systems
- Low flow resistance with swing disc design
- Available in carbon steel, stainless steel, and alloy steel
- Suitable for medium and high pressure industrial applications
Key Features of Swing Check Valves
Designed for reliable backflow prevention, stable sealing performance, and efficient automatic operation in industrial pipeline systems.
Low Pressure Drop
The swing disc structure provides a relatively straight flow path, helping reduce resistance and pressure loss in the pipeline.
Automatic Operation
The valve opens and closes automatically according to fluid flow and pressure direction, without manual intervention.
Reliable Sealing
Precision-machined seating surfaces and robust disc structure ensure stable shut-off under varying service conditions.
Wide Material Options
Available in WCB, LCB, WC6, WC9, CF8, CF8M, duplex stainless steel, and project-specific alloy materials.
Easy Maintenance
Service-friendly construction with bolted cover design allows convenient inspection and maintenance in many installations.
Versatile Applications
Widely used in oil & gas, petrochemical plants, water systems, power stations, and general process pipelines.
Swing Check Valve Technical Specifications
Our swing check valves are manufactured according to international industrial standards and project requirements.
| Item | Description |
|---|---|
| Product Name | Swing Check Valve |
| Size Range | 2" – 48" / DN50 – DN1200 |
| Pressure Rating | Class 150 / 300 / 600 / 900 / 1500 / 2500 |
| Body Material | Carbon Steel / Stainless Steel / Alloy Steel / Special Materials |
| Disc Material | WCB / 13Cr / CF8 / CF8M / Alloy Steel |
| Seat Material | Metal Seat / Stainless Steel Overlay / Renewable Seat Ring |
| Connection Type | Flanged / Butt Weld / Socket Weld / Threaded |
| Design Standard | API 6D / BS 1868 / ASME B16.34 |
| Face to Face | ASME B16.10 / API 6D |
| Inspection Standard | API 598 / ISO 5208 |
| Applicable Media | Water / Oil / Gas / Steam / Chemical Media |
| Temperature Range | According to material and seat configuration |
Main Parts and Materials
Material combinations can be selected according to media type, pressure class, operating temperature, and project specifications.
| Part Name | Material Option |
|---|---|
| Body | WCB / LCB / WC6 / WC9 / CF8 / CF8M |
| Cover | WCB / LCB / WC6 / WC9 / CF8 / CF8M |
| Disc | WCB / 13Cr / SS304 / SS316 / Alloy Steel |
| Seat Ring | 13Cr / SS304 / SS316 / STL Overlay / Integral Seat |
| Hinge | Carbon Steel / Stainless Steel / Alloy Steel |
| Hinge Pin | 2Cr13 / SS304 / SS316 |
| Gasket | Graphite / Spiral Wound Gasket / PTFE |
| Stud Bolts | A193 B7 / B8 / B8M |

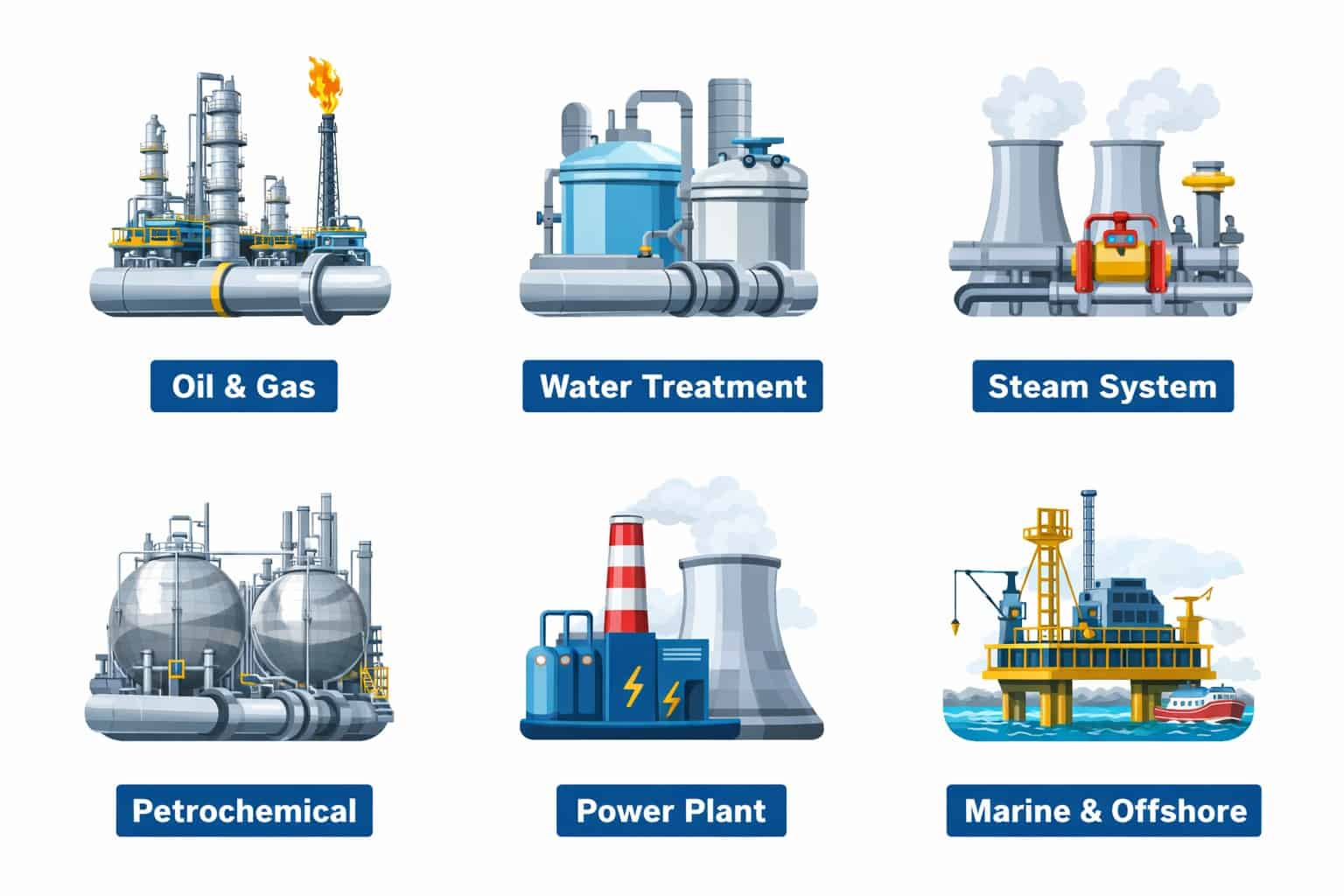

Swing Check Valve Applications
Swing check valves are widely used in industrial pipeline systems requiring reliable backflow prevention, stable shut-off performance, and low flow resistance.
Water Treatment
Used in clean water, wastewater, filtration, and pumping systems to prevent reverse flow and protect critical pipeline equipment.
Power Plant Systems
Suitable for feedwater, condensate, and auxiliary process lines where dependable non-return protection is required.
Chemical Processing
Applicable for process piping with proper material selection, helping maintain safe one-way flow in chemical transfer systems.
Oil & Gas
Used in pipeline networks, pumping stations, and refinery systems to prevent backflow and protect upstream equipment.
Petrochemical Plants
Designed for demanding industrial service requiring robust body strength, stable sealing performance, and long-term reliability.
General Industrial Pipelines
Ideal for large-diameter and medium-to-high pressure pipeline systems requiring efficient automatic backflow prevention.
Quality Assurance, Testing, Packing & Delivery
Every swing check valve is tested before delivery to ensure sealing integrity, dimensional accuracy, material compliance, and reliable field performance.

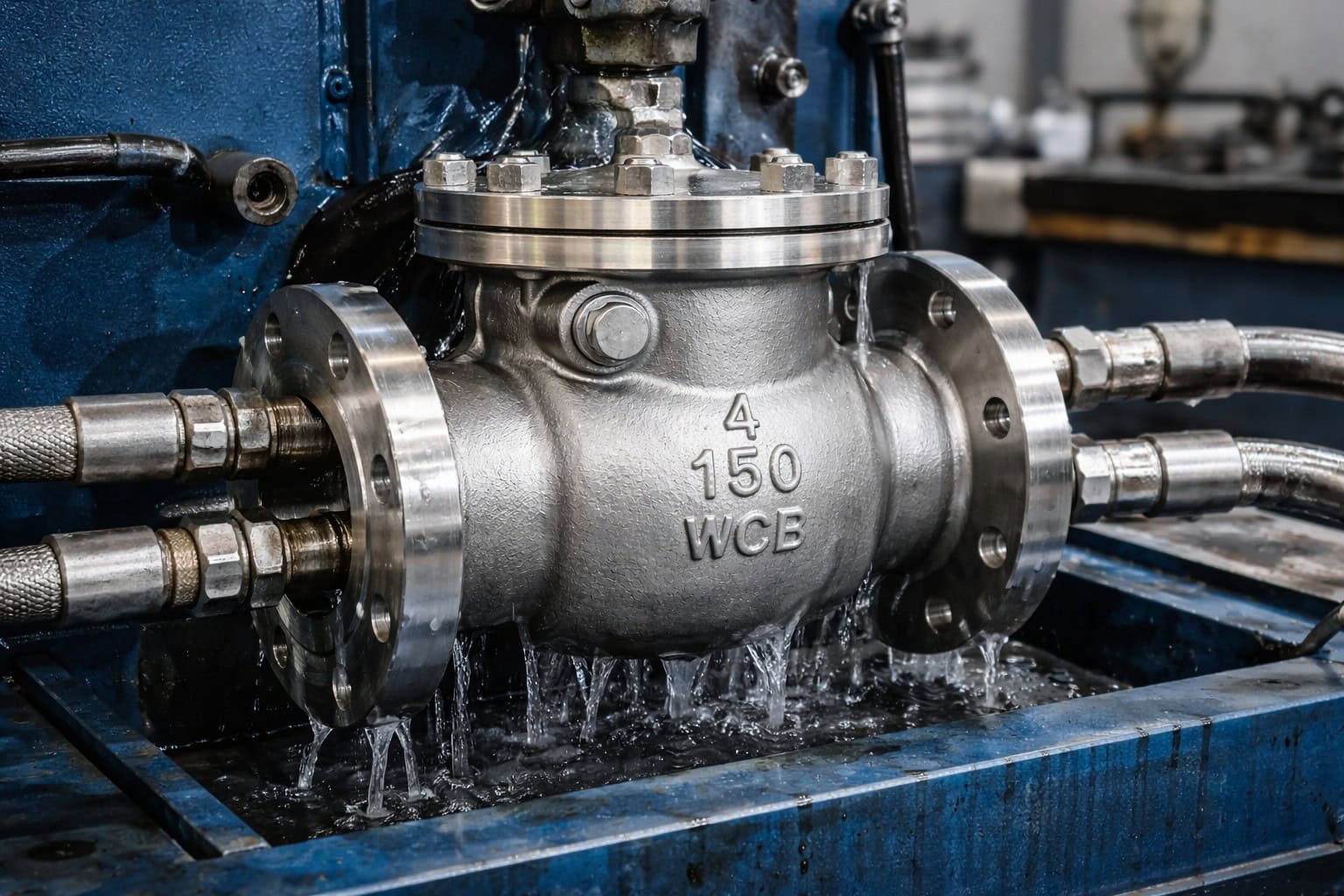

Inspection & Testing
- Shell Pressure Test
- Seat Leakage Test
- Visual Inspection
- Dimensional Inspection
- Material Verification
- Coating and Surface Check

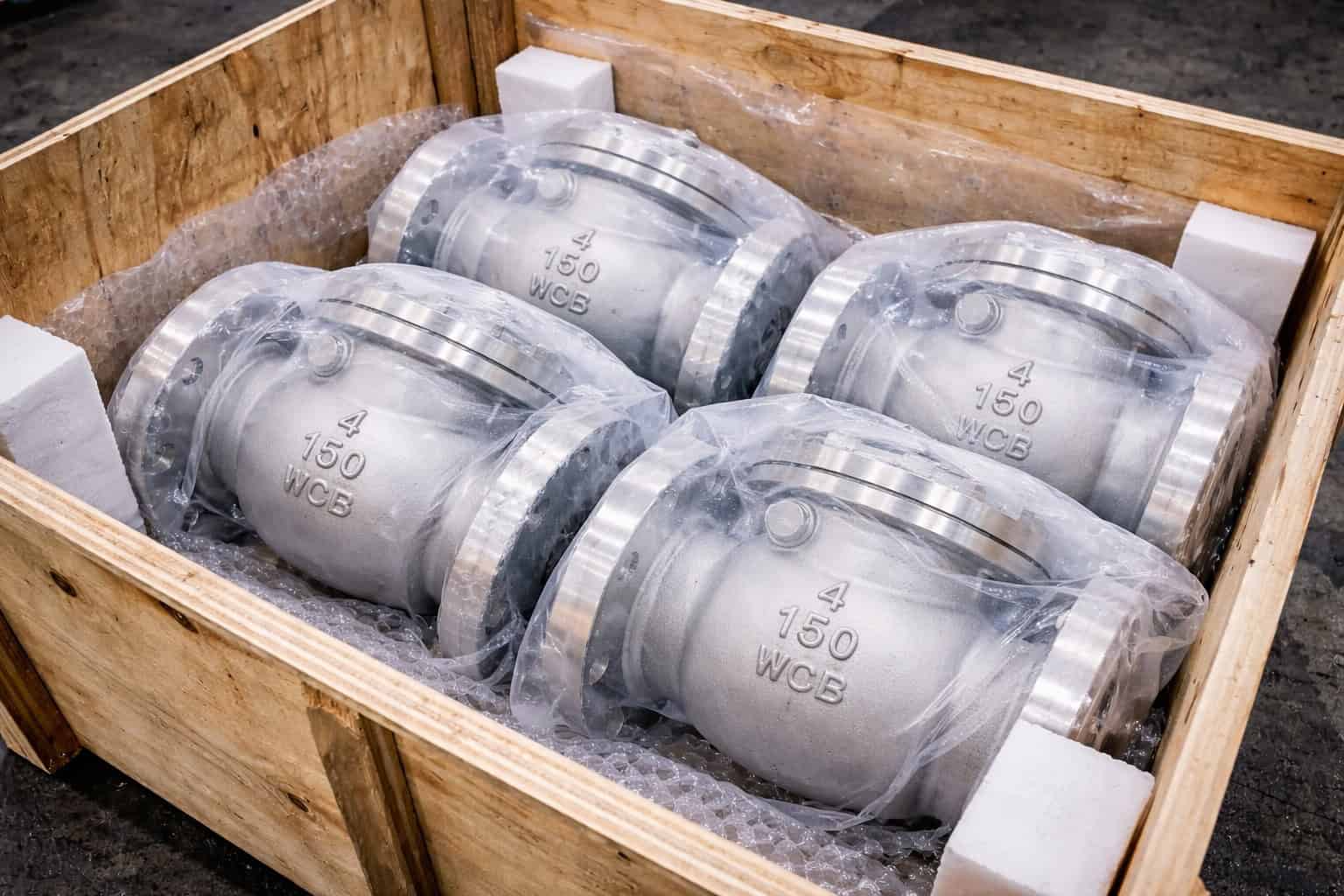

Packing & Delivery
- Export standard plywood or carton packing
- Anti-rust protection for machined parts
- Clear product marking and traceability labels
- Suitable for sea freight and land transport
- Fast delivery for standard and custom orders
- OEM brand marking and packing support available
Why Choose Our Swing Check Valve
We supply reliable swing check valve solutions with stable quality, flexible material options, and professional industrial service.
Professional
Manufacturer
Years of experience in industrial valve manufacturing for global export markets and project supply.
Stable Quality
Strict inspection and testing procedures ensure dependable sealing and operating performance.
Flexible Material
Selection
Different body, disc, and seat combinations are available for various media and working conditions.
OEM & Fast
Delivery
Support for OEM branding, customized marking, and efficient production for standard and project orders.
Frequently Asked Questions About Swing Check Valves
This FAQ section helps industrial buyers understand product selection, installation, and project requirements while improving long-tail SEO ranking.
What is a swing check valve used for?
A swing check valve is used to prevent reverse flow in industrial pipeline systems and protect pumps, compressors, and other upstream equipment.
What is the difference between a swing check valve and a lift check valve?
A swing check valve uses a hinged disc that swings open and closed, while a lift check valve uses a disc that moves vertically. Swing check valves usually offer lower flow resistance.
What materials are available for swing check valves?
Common materials include carbon steel, stainless steel, alloy steel, duplex stainless steel, and special materials depending on pressure, temperature, and media requirements.
Can swing check valves be used in horizontal pipelines?
Yes. Swing check valves are most commonly installed in horizontal pipelines where the disc can move freely and close properly under reverse flow conditions.
Do you provide OEM swing check valves?
Yes. We support OEM branding, customized marking, and project-based industrial valve solutions according to customer requirements.
Swing Check Valve Manufacturer for Reliable Industrial Backflow Protection
If you are looking for a reliable swing check valve manufacturer, ZONCIC can provide high quality industrial swing check valves for a wide range of backflow prevention applications. Our swing type check valves are widely used in oil & gas, petrochemical, water treatment, power plants, and general industrial pipeline systems. Manufactured to standards such as API 6D, BS 1868, ASME B16.34, and API 598, our valves are designed for reliable shut-off, stable operation, low pressure drop, and long service life.
