Dual Plate Check Valve
Compact wafer dual plate check valves for dependable non-return service, low pressure drop, and fast response in modern pipeline systems.
Industrial Dual Plate Check Valve Supplier

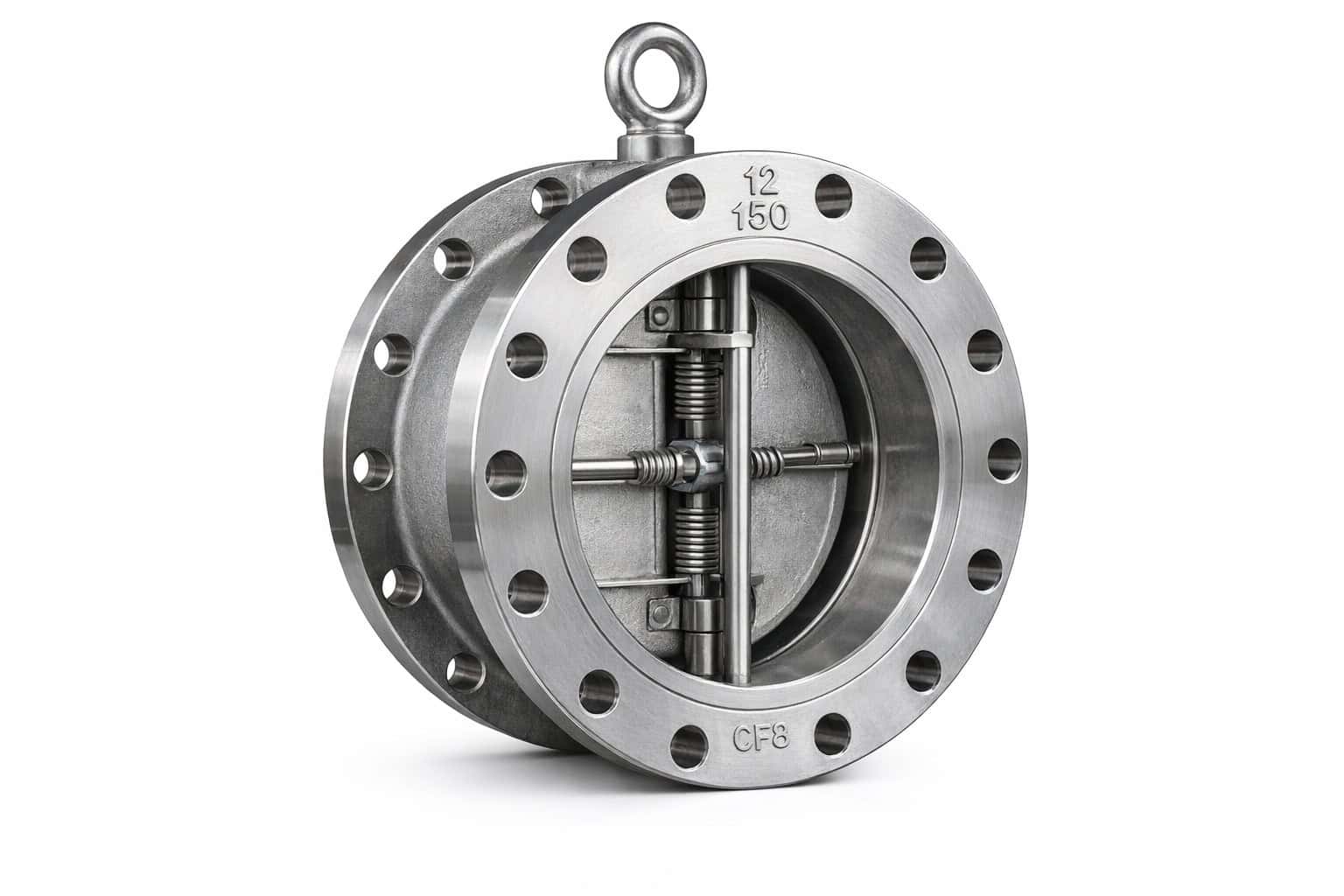

A dual plate check valve, also known as a dual disc check valve or double door check valve, is a compact non-return valve designed with two spring-loaded plates that open under forward flow and close rapidly when flow stops or reverses. This design helps reduce water hammer effect, minimize reverse flow, and protect pumps and pipelines.
Compared with conventional swing check valves, dual plate check valves are lighter, more compact, and easier to install between flanges. ZONCIC supplies wafer type dual plate check valves in carbon steel, stainless steel, duplex stainless steel, and other materials for oil & gas, water systems, petrochemical plants, marine service, HVAC, and general industrial applications.
- Compact wafer design for space-saving installation
- Fast spring-assisted closing to reduce water hammer
- Low pressure drop and efficient flow performance
- Available in carbon steel, stainless steel, and special alloys
Key Features of Dual Plate Check Valves
Designed for compact structure, quick closing response, and dependable non-return performance in industrial pipeline systems.
Compact Wafer Design
The short face-to-face dimension and lightweight body make installation easier in limited piping space and between flanges.
Fast Closing Action
Spring-loaded dual plates close rapidly when flow stops, helping reduce water hammer and reverse flow in the system.
Low Pressure Drop
The dual plate structure allows efficient flow passage, contributing to reduced resistance and stable fluid performance.
Lightweight Construction
Compared with traditional full body check valves, dual plate models offer lighter weight and simplified handling during installation.
Wide Material Options
Available in WCB, CF8, CF8M, duplex stainless steel, aluminum bronze, and other materials for different service conditions.
Reliable Backflow Protection
Suitable for water, oil, gas, chemical, and marine systems requiring dependable automatic shut-off and non-slam performance.
Dual Plate Check Valve Technical Specifications
Our dual plate check valves are manufactured according to international industrial standards and project requirements.
| Item | Description |
|---|---|
| Product Name | Dual Plate Check Valve |
| Valve Type | Wafer Type / Dual Disc / Double Door Check Valve |
| Size Range | 2" – 48" / DN50 – DN1200 |
| Pressure Rating | Class 125 / 150 / 300 / 600 / PN10 / PN16 / PN25 / PN40 |
| Body Material | WCB / CF8 / CF8M / Duplex Stainless Steel / Aluminum Bronze / Special Materials |
| Disc Material | WCB / Stainless Steel / Duplex Steel / Aluminum Bronze |
| Seat Material | Metal Seat / NBR / EPDM / Viton / PTFE (depending on design) |
| Spring Material | Inconel / Stainless Steel / Alloy Spring Material |
| Connection Type | Wafer / Lug / Double Flange (depending on model) |
| Design Standard | API 594 / ASME B16.34 / EN 12334 |
| Face to Face | API 594 / EN 558 |
| Inspection Standard | API 598 / ISO 5208 / EN 12266 |
| Applicable Media | Water / Oil / Gas / Chemical Media / HVAC Fluids |
Main Parts and Materials
Material combinations can be selected according to working media, pressure class, temperature range, and corrosion requirements.
| Part Name | Material Option |
|---|---|
| Body | WCB / CF8 / CF8M / Duplex Stainless Steel / Aluminum Bronze |
| Plate / Disc | SS304 / SS316 / WCB / Duplex Steel / Aluminum Bronze |
| Seat | NBR / EPDM / Viton / PTFE / Metal Seat |
| Hinge Pin | SS410 / SS304 / SS316 / Duplex Stainless Steel |
| Spring | Inconel X-750 / SS316 / Special Alloy Spring |
| Retainer Pin | Carbon Steel / Stainless Steel / Duplex Steel |
| Stop Pin | Carbon Steel / Stainless Steel |
| Washer / Spacer | Stainless Steel / Alloy Material |
Dual Plate Check Valve Applications
Dual plate check valves are widely used in compact pipeline systems requiring fast automatic shut-off, reduced water hammer, and efficient backflow prevention.
Water Treatment
Used in clean water, wastewater, pumping stations, and filtration systems where compact installation and reliable backflow prevention are required.
HVAC Systems
Suitable for chilled water, cooling water, and building service pipelines requiring light weight and fast non-return action.
Oil & Gas
Applied in process lines, utility piping, and auxiliary systems where compact valve dimensions and dependable non-slam performance are important.
Petrochemical Plants
Designed for demanding industrial systems involving process fluids, corrosive media, and stable one-way flow requirements.
Marine Service
Commonly used in shipbuilding and offshore systems because of compact structure, fast response, and corrosion-resistant material options.
General Industrial Pipelines
Ideal for pipelines requiring low pressure loss, automatic shut-off, and reduced installation space compared with traditional check valves.
Quality Assurance, Testing, Packing & Delivery
Every dual plate check valve is tested before delivery to ensure sealing integrity, dimensional accuracy, material compliance, and reliable field performance.

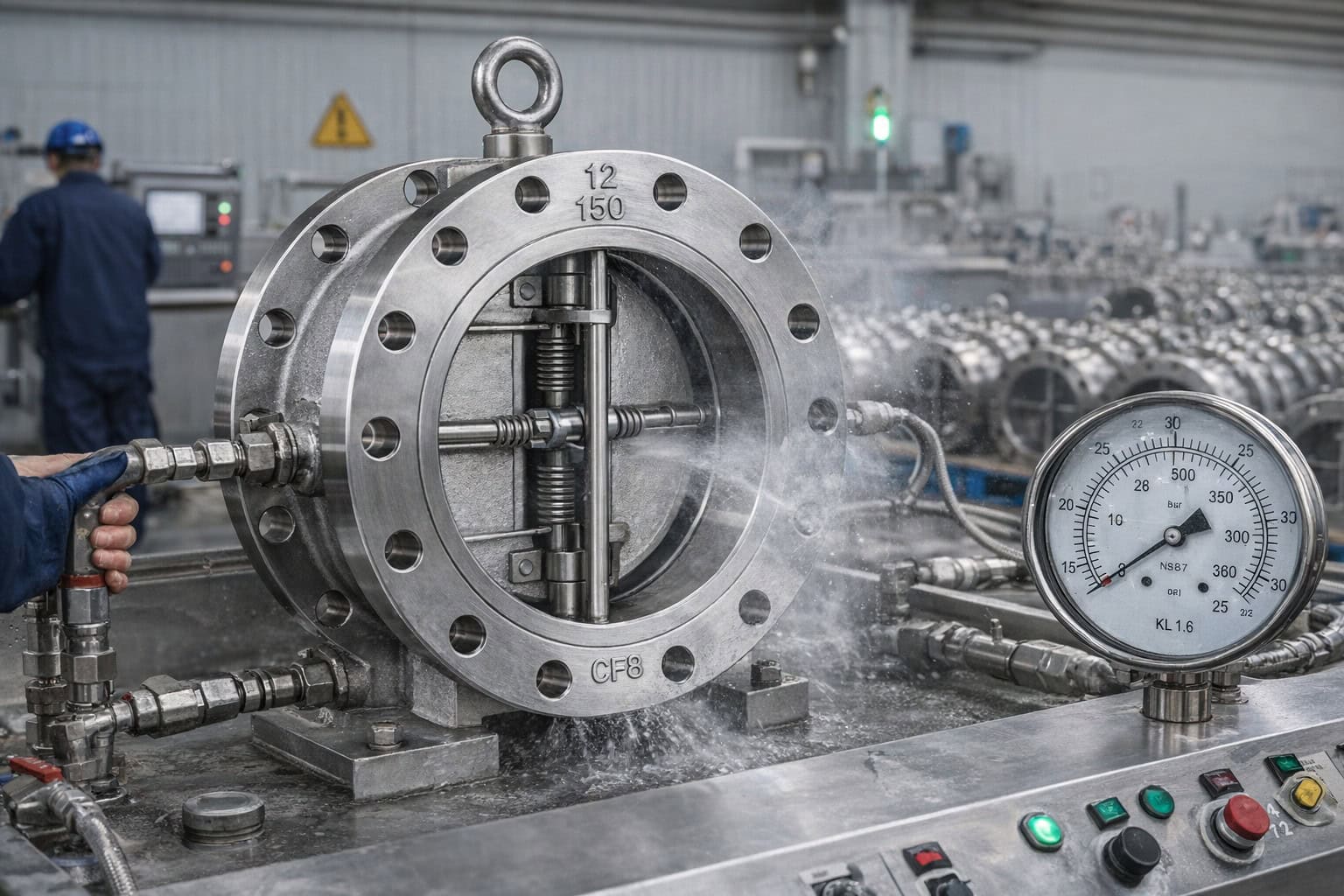

Inspection & Testing
- Shell Pressure Test
- Seat Leakage Test
- Visual Inspection
- Dimensional Inspection
- Material Verification
- Spring and disc assembly check

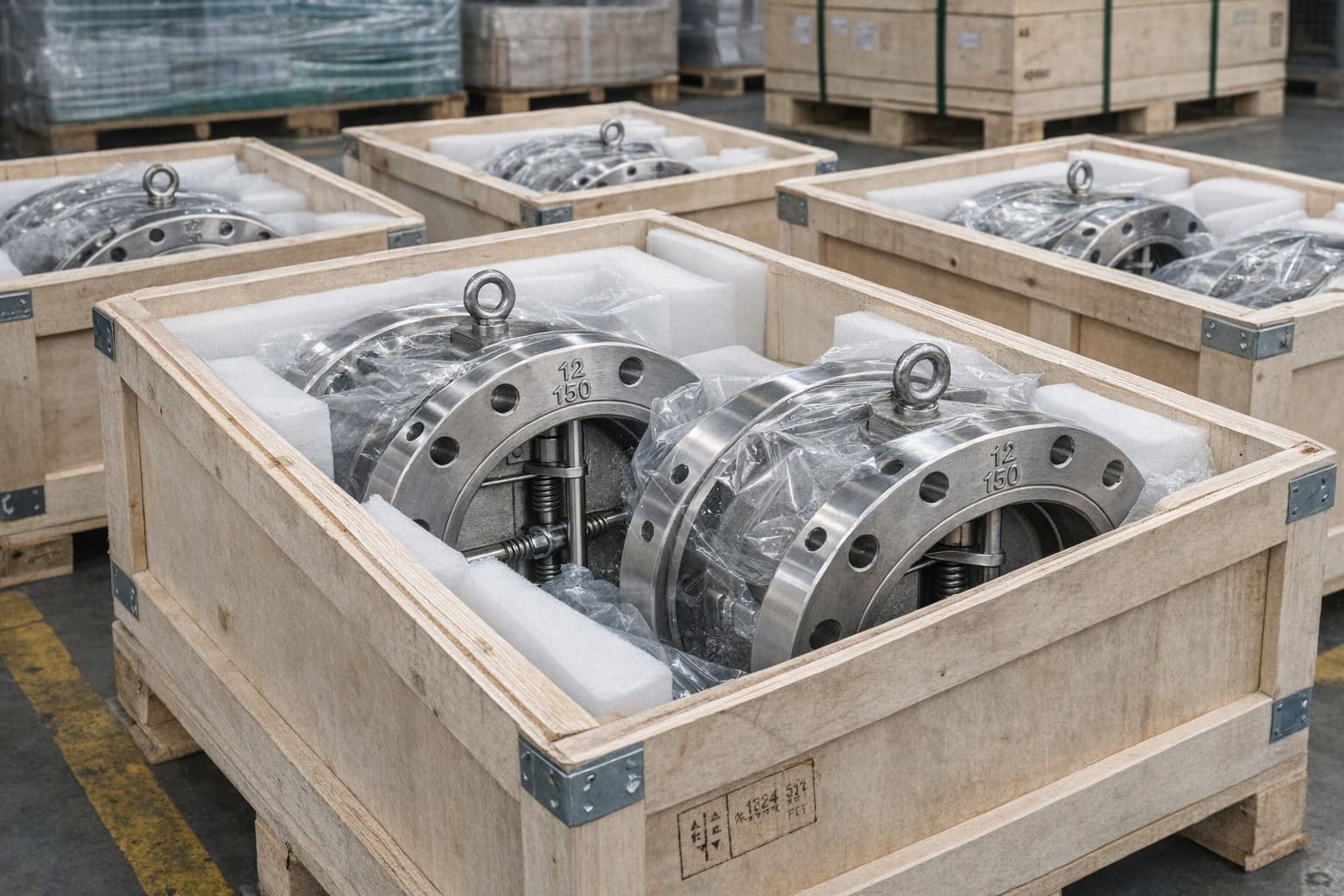

Packing & Delivery
- Export standard plywood or carton packing
- Anti-rust protection for machined and sealing parts
- Clear product marking and traceability labels
- Suitable for sea freight and land transport
- Fast delivery for standard and project orders
- OEM brand marking and packing support available
Why Choose Our Dual Plate Check Valve
We supply reliable dual plate check valve solutions with stable quality, flexible material options, and professional industrial service.
Professional
Manufacturer
Years of experience in industrial valve manufacturing for global export markets and engineering project supply.
Stable Quality
Strict inspection and testing procedures ensure dependable sealing, quick closing action, and stable operating performance.
Flexible Material
Selection
Different body, disc, seat, and spring combinations are available for water, oil, gas, chemical, and marine service conditions.
OEM & Fast
Delivery
Support for OEM branding, customized marking, and efficient production for standard and project-based industrial orders.
Frequently Asked Questions About Dual Plate Check Valves
This FAQ section helps industrial buyers understand product selection, installation, and service requirements while improving long-tail SEO ranking.
What is a dual plate check valve used for?
A dual plate check valve is used to prevent reverse flow in pipeline systems while reducing water hammer and saving installation space.
What is the difference between a dual plate check valve and a swing check valve?
A dual plate check valve uses two spring-loaded plates and has a compact wafer structure, while a swing check valve uses a hinged disc and usually has a larger body size. Dual plate models generally offer faster closing and lighter weight.
Is a dual plate check valve good for reducing water hammer?
Yes. Because the plates are spring-assisted and close quickly, dual plate check valves are widely used as non-slam check valves to help reduce water hammer effect.
Where are dual plate check valves commonly used?
They are commonly used in water treatment, HVAC, oil and gas, petrochemical plants, marine systems, and general industrial pipelines.
Do you provide stainless steel dual plate check valves?
Yes. We can supply dual plate check valves in carbon steel, stainless steel, duplex stainless steel, aluminum bronze, and other special materials according to project requirements.
Dual Plate Check Valve Manufacturer for Compact and Reliable Non-Slam Backflow Protection
If you are looking for a reliable dual plate check valve manufacturer, ZONCIC can provide high quality industrial dual plate check valves for a wide range of compact non-return applications. Our wafer dual plate check valves are widely used in water treatment, HVAC systems, oil & gas, petrochemical plants, marine service, and general industrial pipeline systems. Manufactured to standards such as API 594, ASME B16.34, EN 12334, and API 598, our valves are designed for quick closing action, reduced water hammer, low pressure drop, compact installation, and long service life.
