Flanged Check Valve
Industrial flanged check valves for dependable one-way flow control, secure pipeline connection, and stable non-return performance in demanding service conditions.
Industrial Flanged Check Valve Supplier
A flanged check valve is a non-return valve designed with flanged end connections for secure installation in pipeline systems. It allows flow in one direction and automatically prevents reverse flow when system pressure changes. Because of its strong end connection and broad size range, the flanged check valve is widely used in industrial piping systems requiring durable sealing performance and convenient maintenance.
ZONCIC supplies industrial flanged check valves in carbon steel, stainless steel, alloy steel, and special materials for oil & gas, petrochemical plants, water treatment, power generation, marine service, and general industrial applications. Our flanged non return valves are manufactured for dependable shut-off, long service life, and compliance with international industrial standards.
- Secure flanged connection for industrial pipeline systems
- Reliable automatic backflow prevention
- Available in carbon steel, stainless steel, and alloy steel
- Suitable for medium and high pressure industrial service
Key Features of Flanged Check Valves
Designed for secure connection, reliable backflow prevention, and stable long-term performance in industrial pipeline applications.
Secure Flanged Ends
Flanged connections provide stable installation and are widely used in industrial pipelines requiring easy alignment and dependable sealing.
Reliable Backflow Protection
The valve closes automatically when reverse flow occurs, helping protect pumps, compressors, and upstream equipment.
Wide Size and Pressure Range
Suitable for small to large diameter pipelines and available in multiple pressure classes for different service conditions.
Durable Industrial Construction
Manufactured in carbon steel, stainless steel, alloy steel, and project-specific materials for long service life in demanding environments.
Easy Installation and Maintenance
The flanged body design simplifies installation, removal, and maintenance in plant piping and industrial process systems.
Versatile Application Use
Widely used in water treatment, oil & gas, petrochemical plants, power stations, marine service, and general process pipelines.
Flanged Check Valve Technical Specifications
Our flanged check valves are manufactured according to international industrial standards and project requirements.
| Item | Description |
|---|---|
| Product Name | Flanged Check Valve |
| Valve Type | Swing Type / Lift Type / Piston Type / Non Return Valve |
| Size Range | 2" – 48" / DN50 – DN1200 |
| Pressure Rating | Class 150 / 300 / 600 / 900 / 1500 / 2500 |
| Body Material | WCB / LCB / WC6 / WC9 / CF8 / CF8M / Duplex Stainless Steel / Special Materials |
| Disc Material | Carbon Steel / 13Cr / SS304 / SS316 / Alloy Steel / Hard-faced Options |
| Seat Material | Metal Seat / Stainless Steel Overlay / Renewable Seat Ring / Integral Seat |
| Connection Type | Flanged Ends |
| Design Standard | API 6D / BS 1868 / ASME B16.34 |
| Face to Face | ASME B16.10 / API 6D |
| Flange Standard | ASME B16.5 / ASME B16.47 / DIN / EN / JIS |
| Inspection Standard | API 598 / ISO 5208 |
| Applicable Media | Water / Oil / Gas / Steam / Chemical Media |
Main Parts and Materials
Material combinations can be selected according to operating pressure, temperature, media type, and project specifications.
| Part Name | Material Option |
|---|---|
| Body | WCB / LCB / WC6 / WC9 / CF8 / CF8M / Duplex Stainless Steel |
| Cover / Bonnet | WCB / LCB / WC6 / WC9 / CF8 / CF8M |
| Disc / Clapper | WCB / 13Cr / SS304 / SS316 / Alloy Steel / Duplex Steel |
| Seat Ring | 13Cr / STL Overlay / SS304 / SS316 / Integral Metal Seat |
| Hinge / Guide | Carbon Steel / Stainless Steel / Alloy Steel |
| Hinge Pin / Stem | 2Cr13 / SS304 / SS316 |
| Gasket | Graphite / Spiral Wound Gasket / PTFE / Stainless Reinforced Graphite |
| Stud Bolts | A193 B7 / B16 / B8 / B8M |
Flanged Check Valve Applications
Flanged check valves are widely used in industrial pipeline systems requiring dependable backflow prevention, secure connection, and long-term operating reliability.
Water Treatment
Used in clean water, wastewater, filtration, and pumping systems requiring reliable reverse flow protection and secure flanged connection.
Power Plant Systems
Suitable for feedwater, steam, condensate, and auxiliary service lines where dependable shut-off and durable body construction are required.
Oil & Gas
Applied in process lines, pipeline networks, utility systems, and refinery service where dependable non-return operation is essential.
Petrochemical Plants
Designed for industrial systems carrying hydrocarbons, chemical media, steam, and high pressure process fluids.
Marine Service
Commonly used in shipbuilding and offshore applications with carbon steel, stainless steel, and corrosion-resistant material options.
General Industrial Pipelines
Ideal for medium and large diameter piping systems requiring automatic backflow protection and convenient flange-end installation.
Quality Assurance, Testing, Packing & Delivery
Every flanged check valve is tested before delivery to ensure sealing integrity, dimensional accuracy, material compliance, and reliable field performance.

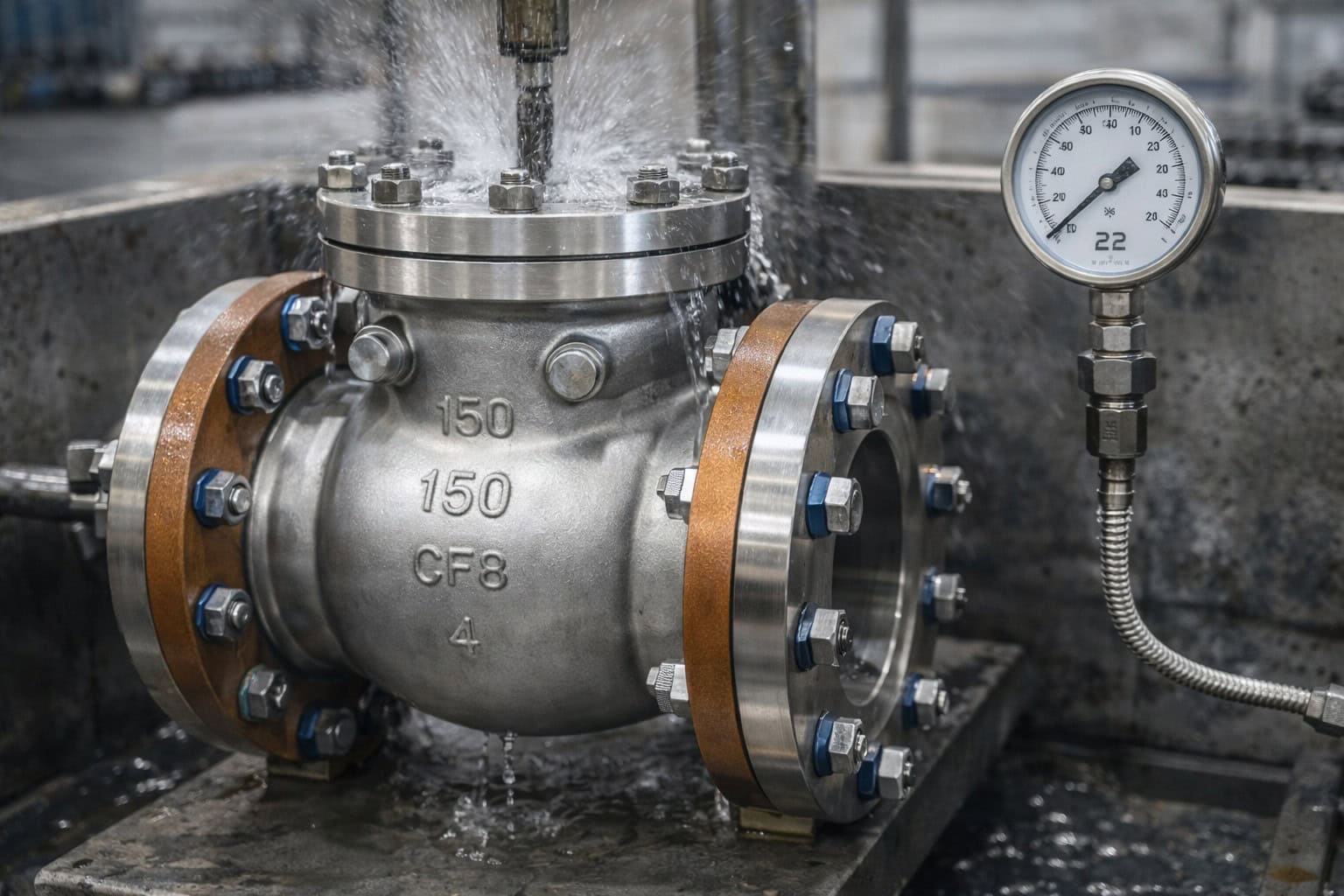

Inspection & Testing
- Shell Pressure Test
- Seat Leakage Test
- Visual Inspection
- Dimensional Inspection
- Material Verification
- Coating and sealing surface check

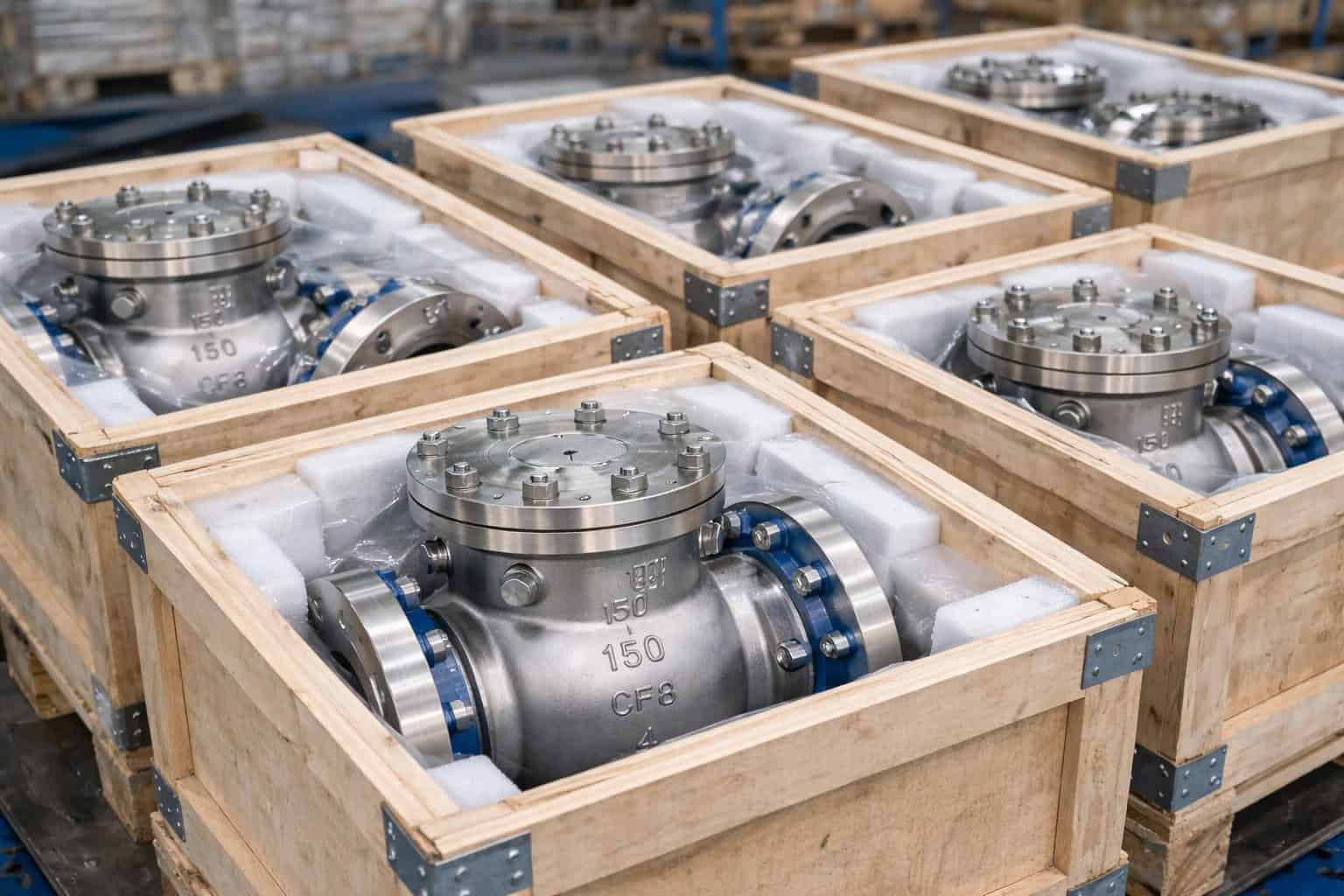

Packing & Delivery
- Export standard plywood case packing
- Anti-rust protection for machined and flange faces
- Clear product marking and traceability labels
- Suitable for sea freight and land transport
- Fast delivery for standard and project orders
- OEM brand marking and packing support available
Why Choose Our Flanged Check Valve
We supply reliable flanged check valve solutions with stable quality, flexible material options, and professional industrial service.
Professional
Manufacturer
Years of experience in industrial valve manufacturing for global export markets and engineering project supply.
Stable Quality
Strict inspection and testing procedures ensure dependable sealing performance and reliable automatic operation.
Flexible Material
Selection
Different body, disc, seat, and sealing combinations are available for water, oil, gas, steam, and chemical service conditions.
OEM & Fast
Delivery
Support for OEM branding, customized marking, and efficient production for standard and project-based industrial orders.
Frequently Asked Questions About Flanged Check Valves
This FAQ section helps industrial buyers understand product selection, installation, and service requirements while improving long-tail SEO ranking.
What is a flanged check valve used for?
A flanged check valve is used to prevent reverse flow in pipeline systems while providing a secure flange-end connection for industrial installation.
What are the advantages of flanged check valves?
The main advantages are secure installation, easy pipeline alignment, broad size range, strong body construction, and reliable non-return performance.
Where are flanged check valves commonly used?
They are commonly used in water treatment, oil and gas, petrochemical plants, power stations, marine systems, and general industrial process pipelines.
Can flanged check valves be supplied in stainless steel?
Yes. We can supply flanged check valves in carbon steel, stainless steel, duplex stainless steel, alloy steel, and other special materials according to project requirements.
Do you provide API standard flanged check valves?
Yes. We can supply API and ASME standard flanged check valves manufactured according to project requirements and applicable industrial standards.
Flanged Check Valve Manufacturer for Reliable Industrial Non-Return Protection
If you are looking for a reliable flanged check valve manufacturer, ZONCIC can provide high quality industrial flanged check valves for a wide range of non-return applications. Our flanged non return valves are widely used in water treatment, petrochemical plants, oil & gas systems, power stations, marine service, and general industrial pipeline networks. Manufactured to standards such as API 6D, BS 1868, ASME B16.34, API 598, and ISO 5208, our valves are designed for secure flange-end installation, dependable shut-off, stable operation, and long service life.
Request Your Flanged Check Valve Quote Today
Contact ZONCIC for flanged check valve pricing, technical support, and customized industrial valve solutions. We are ready to support your project with reliable quality and professional service.
Request a Quote
