Duplex Basket Strainer Manufacturer
Zoncic supplies durable duplex basket strainers designed for continuous pipeline filtration in demanding industrial systems. Our duplex basket strainers allow one chamber to remain in service while the other is cleaned, helping reduce downtime and protect pumps, valves, meters and other critical downstream equipment in oil & gas, petrochemical, chemical processing, power generation and water treatment applications.

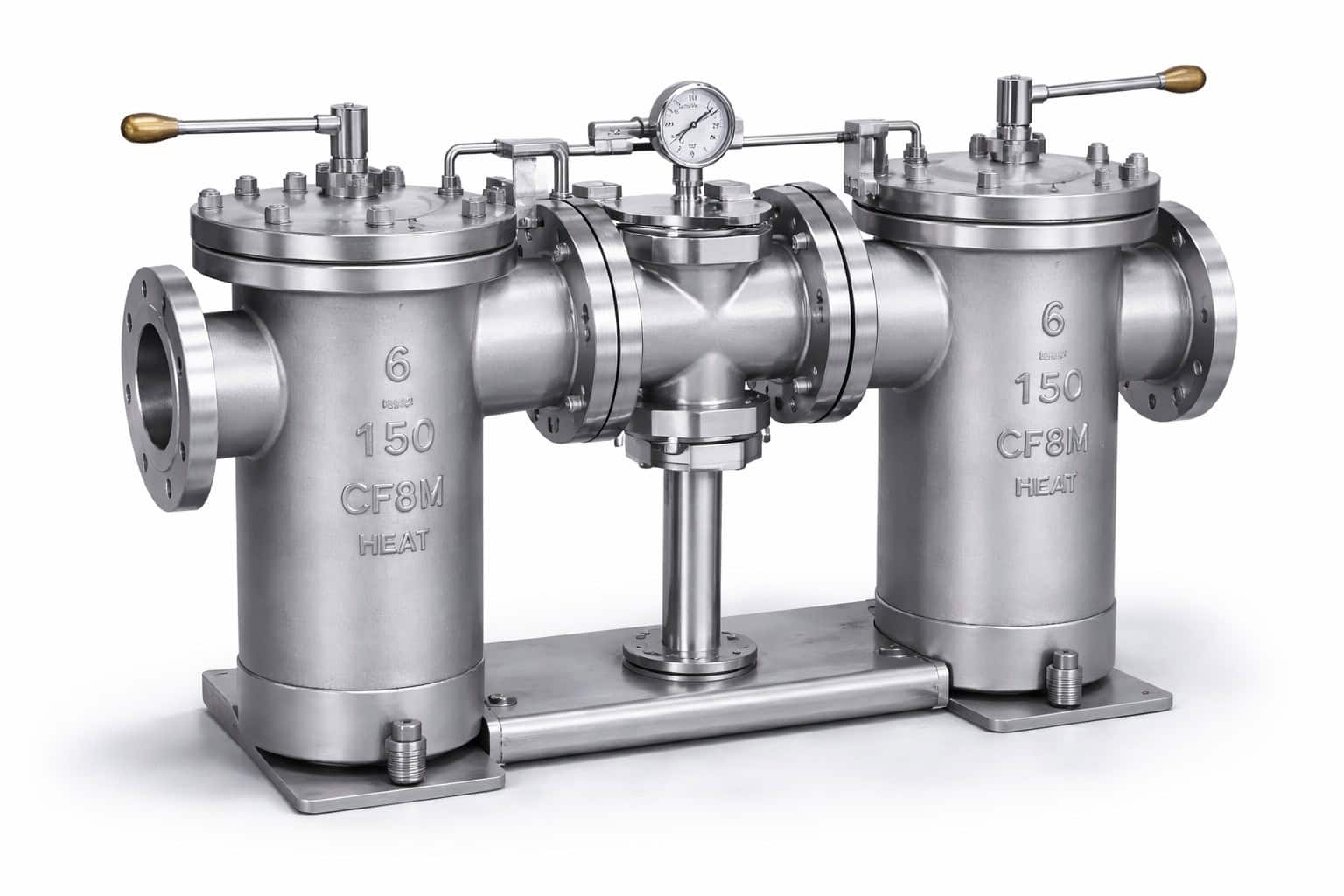

What Is a Duplex Basket Strainer?
A duplex basket strainer is a dual-chamber mechanical filtration device used in pipeline systems that require continuous operation. It consists of two basket strainer chambers connected by a switching valve arrangement, allowing the flow to be redirected from one chamber to the other during maintenance.
This design allows one basket to be cleaned or replaced while the other chamber remains online, which makes duplex basket strainers ideal for process lines where shutdown is not acceptable. They are widely used to remove debris, rust, scale, weld slag and other solid particles before they reach pumps, flow meters, valves, heat exchangers and sensitive downstream equipment.
Key Features of Duplex Basket Strainers
Continuous Operation
One chamber remains online while the other is cleaned, reducing downtime in critical industrial systems.
Large Dirt Holding Capacity
The basket design provides a large filtration area and supports stable operation in higher flow applications.
Fast Maintenance Access
Top cover and internal basket design allow convenient cleaning and replacement during service.
Reliable Equipment Protection
Helps protect pumps, meters, control valves and process equipment from solid contamination.
Flexible Filtration Options
Available with perforated baskets, mesh-lined baskets and customized filtration openings.
Multiple Material Choices
Available in carbon steel, stainless steel and alloy steel for different media and process conditions.
Structure and Working Principle
Duplex basket strainers are designed for uninterrupted process flow. The valve switching mechanism allows the operator to isolate one chamber while maintaining flow through the other chamber.
Dual Basket Chambers
Two strainer housings are integrated into one system for alternate operation and maintenance.
Flow Switching Design
A handle or valve arrangement redirects flow from one chamber to the other without shutting down the line.
Service Isolation
One basket chamber can be safely opened for cleaning while the second chamber continues filtration service.
Process Reliability
Ideal for continuous process systems where line stoppage can affect production efficiency and equipment safety.
Technical Specifications
Our duplex basket strainers are available in standard and custom configurations for industrial systems requiring continuous filtration service.
| Item | Description |
|---|---|
| Product Name | Duplex Basket Strainer |
| Type | Duplex Switching Basket Strainer |
| Size Range | 2” – 24” |
| Pressure Rating | Class 150 / 300 / 600 |
| Body Material | WCB, CF8, CF8M, A105, F304, F316, Alloy Steel |
| Basket Material | SS304 / SS316 |
| End Connection | Flanged / Butt Weld upon request |
| Applicable Media | Water, Oil, Gas, Steam, Chemical Fluids |
| Gasket Material | Graphite / PTFE / Spiral Wound Gasket |
| Filtration Opening | Customizable according to medium and process requirement |
| Operation | Manual switching / customized operation design available |
Main Parts and Materials
| Part | Material Options |
|---|---|
| Main Body | WCB, CF8, CF8M, A105, F304, F316 |
| Cover | WCB, CF8, CF8M, A105, F304, F316 |
| Basket / Screen | SS304, SS316 |
| Switching Valve / Plug | Carbon Steel, Stainless Steel, Alloy Steel |
| Gasket | Graphite, PTFE, Spiral Wound |
| Drain Plug | Carbon Steel, Stainless Steel |
| Bolts / Nuts | B7 / 2H, B8, B8M |
Main Dimensions
The following table shows common reference dimensions for flanged duplex basket strainers. Custom dimensions can be supplied according to design standard, pressure class and project requirements.
| Size | Class | L (mm) | H (mm) | Basket Area |
|---|---|---|---|---|
| 2” | 150LB | 420 | 260 | Dual Standard |
| 3” | 150LB | 520 | 315 | Dual Standard |
| 4” | 150LB | 620 | 380 | Dual Standard |
| 6” | 150LB | 760 | 470 | Dual Standard |
| 8” | 150LB | 920 | 560 | Dual Standard |
Manufacturing Standards and Quality Control
Manufacturing Standards
- API / ASME / DIN / JIS / GOST standards upon request
- Available in cast steel, forged steel and stainless steel construction
- Pressure class and end connection can be matched to project requirements
- Suitable for liquid, gas, steam and chemical process systems
- OEM support for distributor and project-based orders

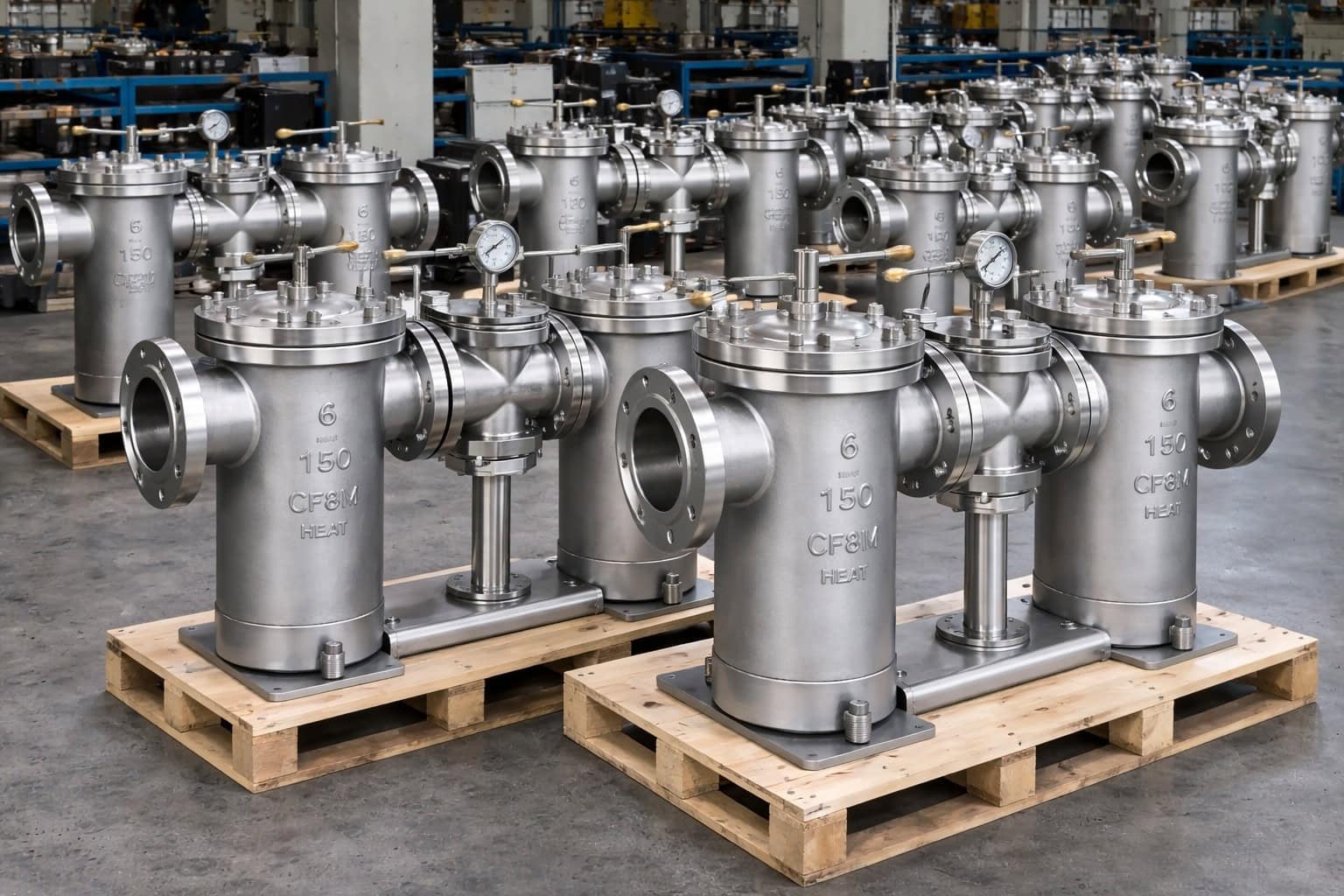

Quality Control
- Raw material verification before machining and assembly
- Dimensional inspection of body, cover and basket components
- Basket perforation and mesh inspection
- Switching mechanism inspection and operational checking
- Visual inspection of finished products
- Marking and traceability verification before shipment
Packing and Delivery
Inspection Before Shipment
- Appearance inspection before packing
- Surface cleaning and anti-rust treatment
- Basket and sealing area protection to avoid transport damage
- Switching mechanism checking before shipment
- Product marking and quantity verification

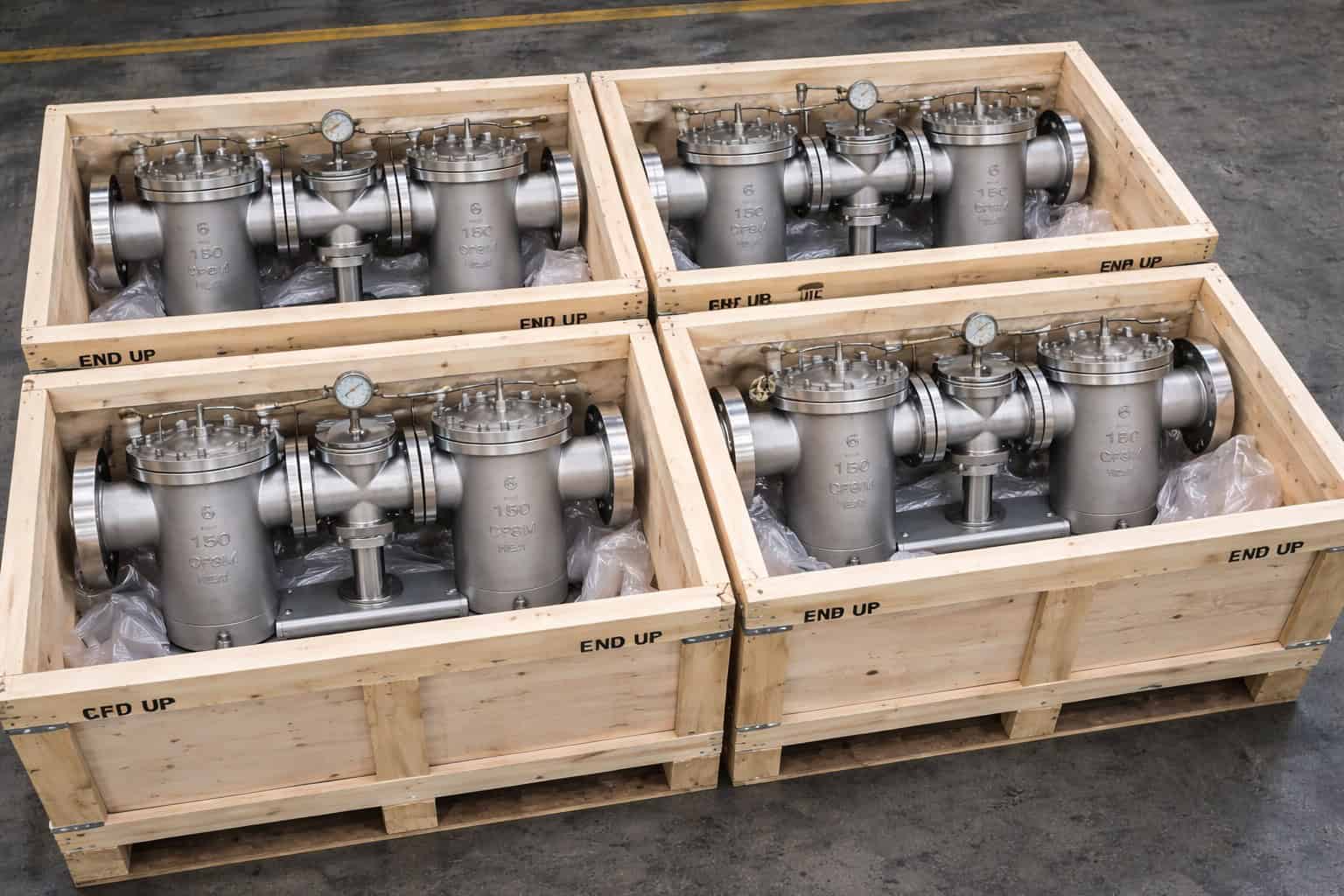

Export Packing
- Export plywood case or wooden box packing
- Suitable for sea shipment and long-distance transportation
- Clear identification label for each shipment
- OEM labels and customized packing available
- Project packing requirements can be supported
Applications of Duplex Basket Strainers
Duplex basket strainers are ideal for industrial systems that require uninterrupted service, easy maintenance and dependable filtration performance.
Oil & Gas
Used in continuous pipeline and process systems where shutdown for cleaning is not acceptable.
Petrochemical Plants
Protects pumps, valves and instruments while allowing uninterrupted operation during maintenance.
Chemical Processing
Suitable for process lines that require dependable filtration and continuous system availability.
Water Treatment
Helps maintain stable filtration in larger utility systems and continuous service applications.
Power Plants
Used in auxiliary and cooling systems where maintenance must be completed without stopping line service.
General Industrial Systems
Suitable for industrial process lines that need easy maintenance and reduced downtime risk.
Why Choose Our Duplex Basket Strainers
Zoncic supplies duplex basket strainers with stable manufacturing quality, flexible technical support and export-oriented service. We help distributors, contractors and end users source dependable continuous-service filtration products with clear specifications, fast quotation response and practical delivery support.
Stable Production Quality
Controlled production and inspection procedures help ensure dependable consistency for every order.
Continuous Service Support
Designed for applications where maintenance must be performed without shutting down the entire pipeline system.
Fast Technical Response
Quick support for material selection, switching design, basket opening and quotation confirmation.
FAQ About Duplex Basket Strainers
1. What is a duplex basket strainer used for?
A duplex basket strainer is used for continuous pipeline filtration in systems where one chamber must remain in service while the other chamber is cleaned or maintained.
2. What is the main advantage of a duplex basket strainer?
Its main advantage is uninterrupted operation. Flow can be switched from one chamber to the other without shutting down the process line.
3. What is the difference between simplex and duplex basket strainers?
A simplex basket strainer has one chamber and must be taken offline for cleaning, while a duplex basket strainer has two chambers for alternate operation and continuous service.
4. Can you customize basket mesh or perforation size?
Yes. We can provide customized basket perforation size, mesh lining and filtration openings according to the actual process requirement.
5. What media can a duplex basket strainer handle?
Duplex basket strainers can be used for water, oil, gas, steam and many chemical fluids depending on the selected material and design configuration.
6. What information is needed for quotation?
Please send size, pressure rating, material, connection type, medium, temperature, basket opening requirement and quantity for a faster quotation.
