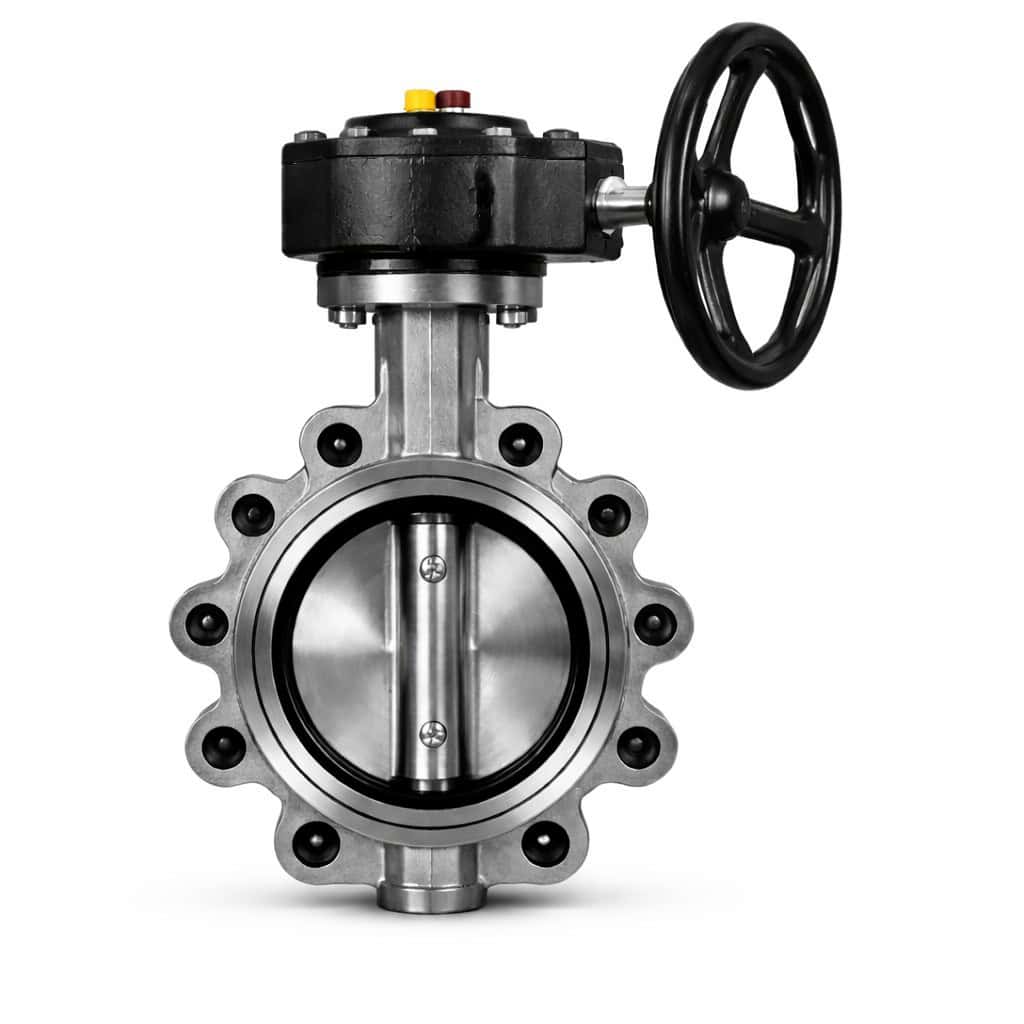

Industrial Lug Butterfly Valve Supplier
A lug butterfly valve is a quarter-turn valve designed with threaded lug inserts around the body, allowing it to be bolted directly between two pipe flanges. Compared with wafer type butterfly valves, lug butterfly valves are especially suitable for end-of-line service, because one side of the pipeline can be removed without disturbing the other side.
As a professional lug butterfly valve manufacturer, Wenzhou Zoncic Machinery Technology Co., Ltd supplies industrial lug butterfly valves in ductile iron, carbon steel, stainless steel, and other materials according to different pressure ratings, disc materials, and seat options. Our lug butterfly valve products are widely used in water treatment, HVAC, chemical, and general industrial applications where compact design, convenient maintenance, and reliable shut-off are required.
- ✔ Lug body design suitable for end-of-line service
- ✔ Easy installation and removal from one side of pipeline
- ✔ Available in ductile iron, carbon steel, and stainless steel
- ✔ Suitable for water treatment, HVAC, chemical, and industrial systems
Key Features of Lug Butterfly Valves from Manufacturer
Designed for convenient maintenance, reliable shut-off, and flexible installation in industrial pipeline systems.
End-of-Line Service
Lug butterfly valves can be used in end-of-line applications because the body has threaded lugs for flange bolting.
Easy Maintenance
One side of the pipeline can be removed without affecting the other side, making maintenance more convenient.
Reliable Shut-Off
Soft seat or metal seat options provide dependable shut-off performance in different media and service conditions.
Compact Structure
The compact body design allows space-saving installation and efficient flow control in a wide range of systems.
Multiple Material Options
Available in ductile iron, WCB, CF8, CF8M, and other materials according to project requirements.
Flexible Actuation
Can be supplied with lever, gear, pneumatic, or electric actuators for manual and automatic operation.
Lug Butterfly Valve Manufacturer Technical Specifications
Our lug butterfly valve products are manufactured to meet international standards and industrial project requirements.
| Item | Description |
|---|---|
| Product Name | Lug Butterfly Valve |
| Size Range | DN50 – DN1200 |
| Pressure Rating | PN10 / PN16 / ANSI 150LB |
| Body Material | Ductile Iron / Carbon Steel / Stainless Steel |
| Disc Material | DI / WCB / CF8 / CF8M / Aluminum Bronze |
| Seat Material | EPDM / NBR / PTFE / Viton / Metal Seat |
| Operation | Lever / Gear / Pneumatic / Electric |
| Connection Type | Lug Type |
| Design Standard | API 609 / EN 593 / MSS SP-67 |
| Inspection Standard | API 598 / EN 12266 |
| Applicable Media | Water / Air / Gas / Oil / Chemical Media |
| Temperature Range | According to seat material |
Main Parts and Materials
Material selection can be customized according to working media, pressure, temperature, and project requirements.
| Part Name | Material Option |
|---|---|
| Body | Ductile Iron / WCB / CF8 / CF8M |
| Disc | Ductile Iron / Stainless Steel / Aluminum Bronze / WCB |
| Stem | SS410 / SS420 / SS304 / SS316 |
| Seat | EPDM / NBR / PTFE / Viton / Metal Seat |
| Bushing | PTFE / Bronze |
| O-Ring | NBR / EPDM / Viton |
| Lever / Gearbox | Carbon Steel / Cast Iron / Aluminum |
Lug Butterfly Valve Applications
Lug butterfly valves are widely used in pipeline systems requiring end-of-line service, reliable shut-off, and easy maintenance.
Water Treatment
Used in clean water, wastewater, filtration, and desalination systems where compact installation is required.
HVAC Systems
Suitable for chilled water, cooling water, and air handling systems with easy maintenance requirements.
Chemical Processing
Applicable for chemical transfer and process systems with suitable body, disc, and seat material combinations.
Oil & Gas
Used in low to medium pressure auxiliary and utility lines for shut-off and isolation service.
General Industrial Pipelines
Ideal for systems where space-saving installation and simple maintenance are important.
End-of-Line Service
Especially suitable for applications where one side of the line may need to be removed independently.
Quality Assurance, Testing, Packing & Delivery
Every lug butterfly valve is tested before delivery to ensure sealing integrity, dimensional accuracy, and dependable service performance.

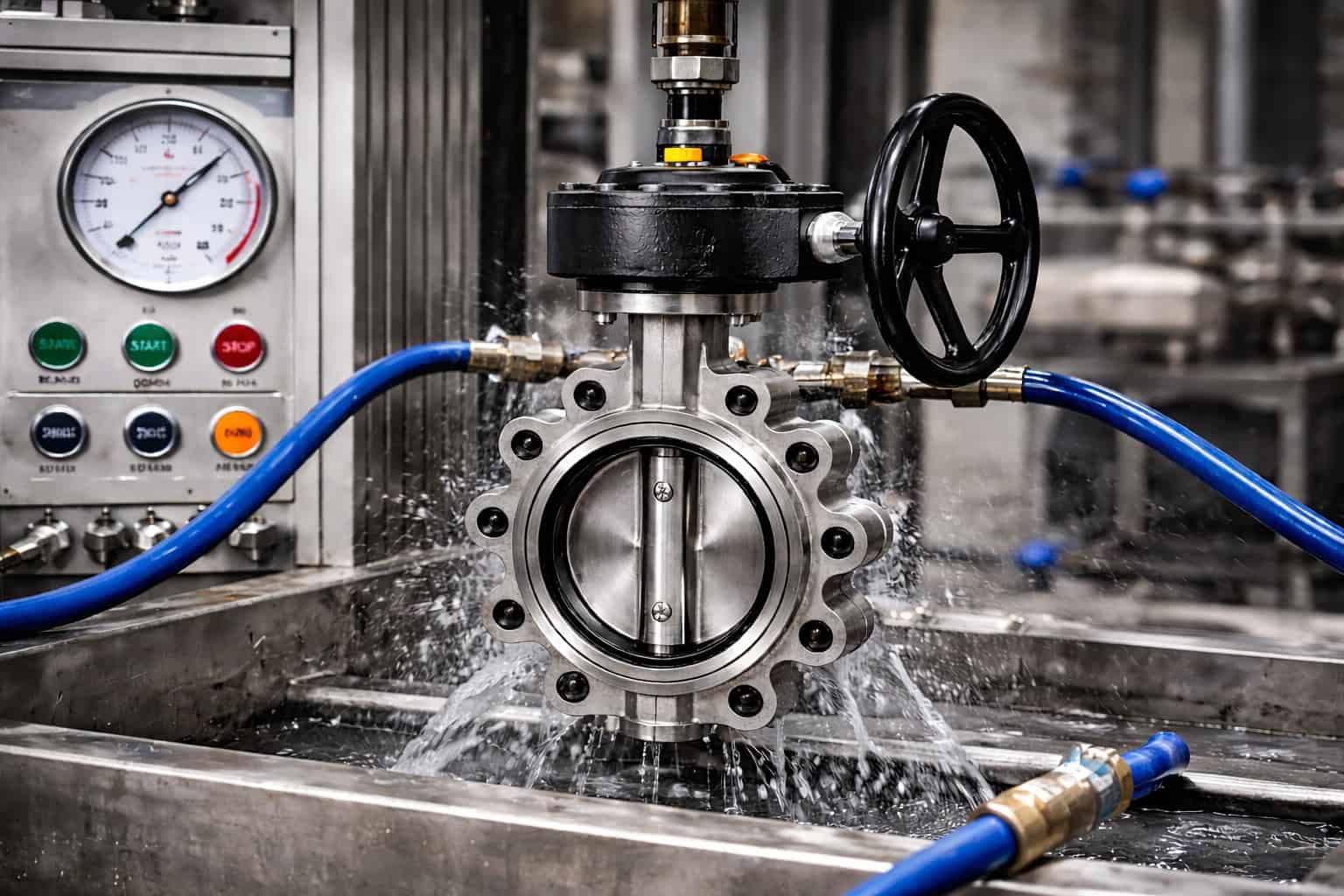

Inspection & Testing
- Shell Pressure Test
- Seat Leakage Test
- Visual Inspection
- Dimensional Inspection
- Material Verification
- Coating and Surface Check

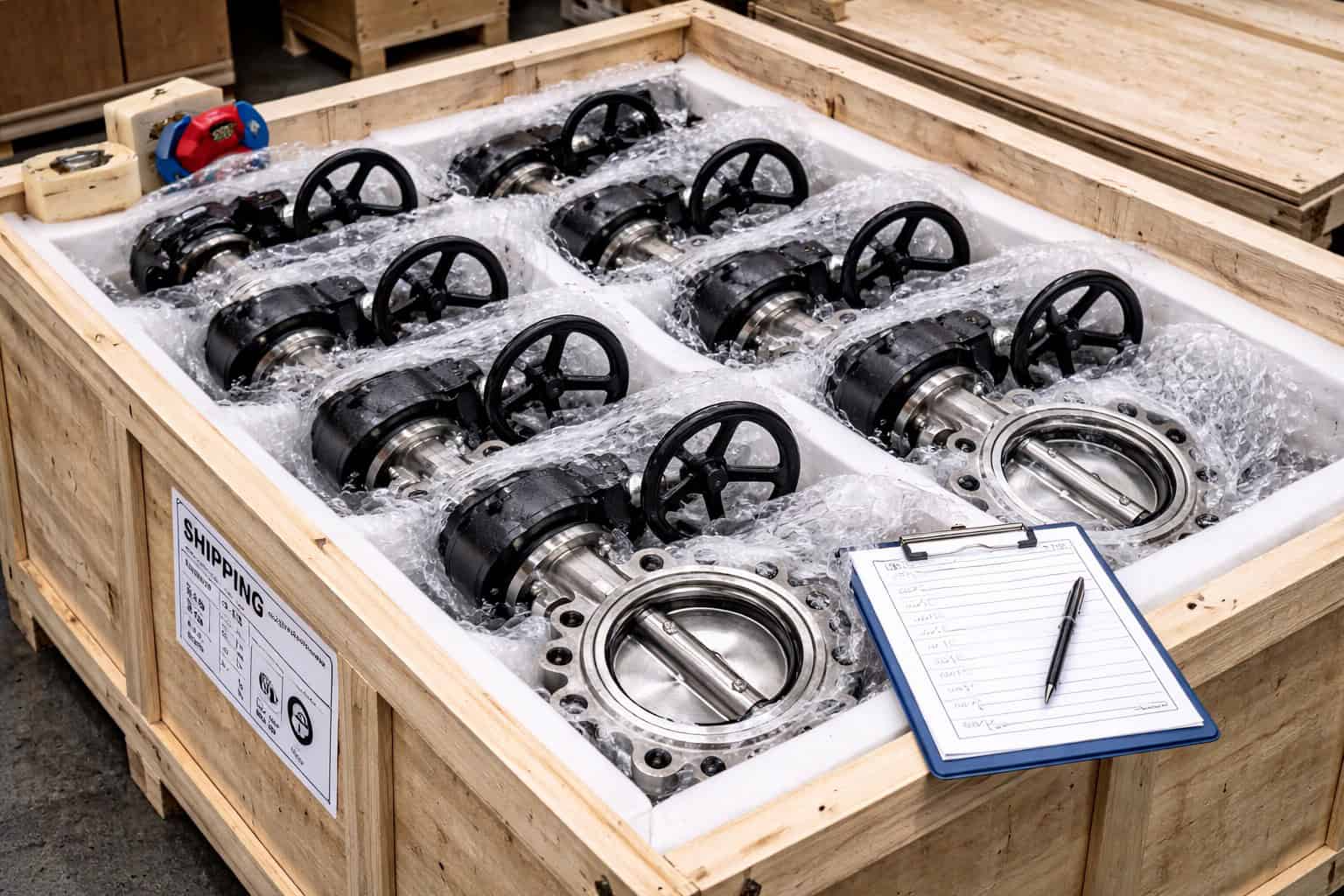

Packing & Delivery
- Export standard plywood or carton packing
- Anti-rust protection for machined parts
- Clear product marking and traceability labels
- Suitable for sea freight and land transport
- Fast delivery for standard and custom orders
- OEM brand marking and packing support available
Why Choose Our Lug Butterfly Valve
We supply reliable lug butterfly valve solutions with stable quality, flexible material options, and professional industrial support.
Professional Manufacturer
Years of experience in industrial valve manufacturing for export markets and project applications.
Stable Quality
Strict inspection and testing procedures ensure dependable sealing and operating reliability.
Flexible Material Selection
Different body, disc, and seat combinations are available for various media and working conditions.
OEM & Fast Delivery
Support for OEM branding, customized marking, and efficient production for standard and project orders.
Frequently Asked Questions About Lug Butterfly Valves
This FAQ section improves user experience and supports long-tail SEO ranking for industrial buyers.
Lug Butterfly Valve Manufacturer for End-of-Line Industrial Flow Control Applications
If you are looking for a reliable lug butterfly valve manufacturer, ZONCIC can provide high quality industrial lug butterfly valves for a wide range of flow control applications. Our lug type butterfly valves are widely used in water treatment, HVAC systems, chemical processing, oil and gas, and general industrial pipeline systems.
We can supply ductile iron lug butterfly valves, stainless steel lug butterfly valves, and customized valves in special materials according to project requirements. Manufactured to international standards such as API 609, EN 593, and MSS SP-67, our products are designed for reliable shut-off, end-of-line service, easy maintenance, and long service life in industrial systems.
As a trusted lug butterfly valve manufacturer, we provide OEM service, fast quotation, competitive price, export packing, inspection reports, and project documentation support for distributors, contractors, and industrial end users worldwide.
Get Quote from Lug Butterfly Valve Manufacturer
Contact ZONCIC today for lug butterfly valve price, technical data, drawings, and customized industrial valve solutions. Fast response within 12 hours for standard and project inquiries.
