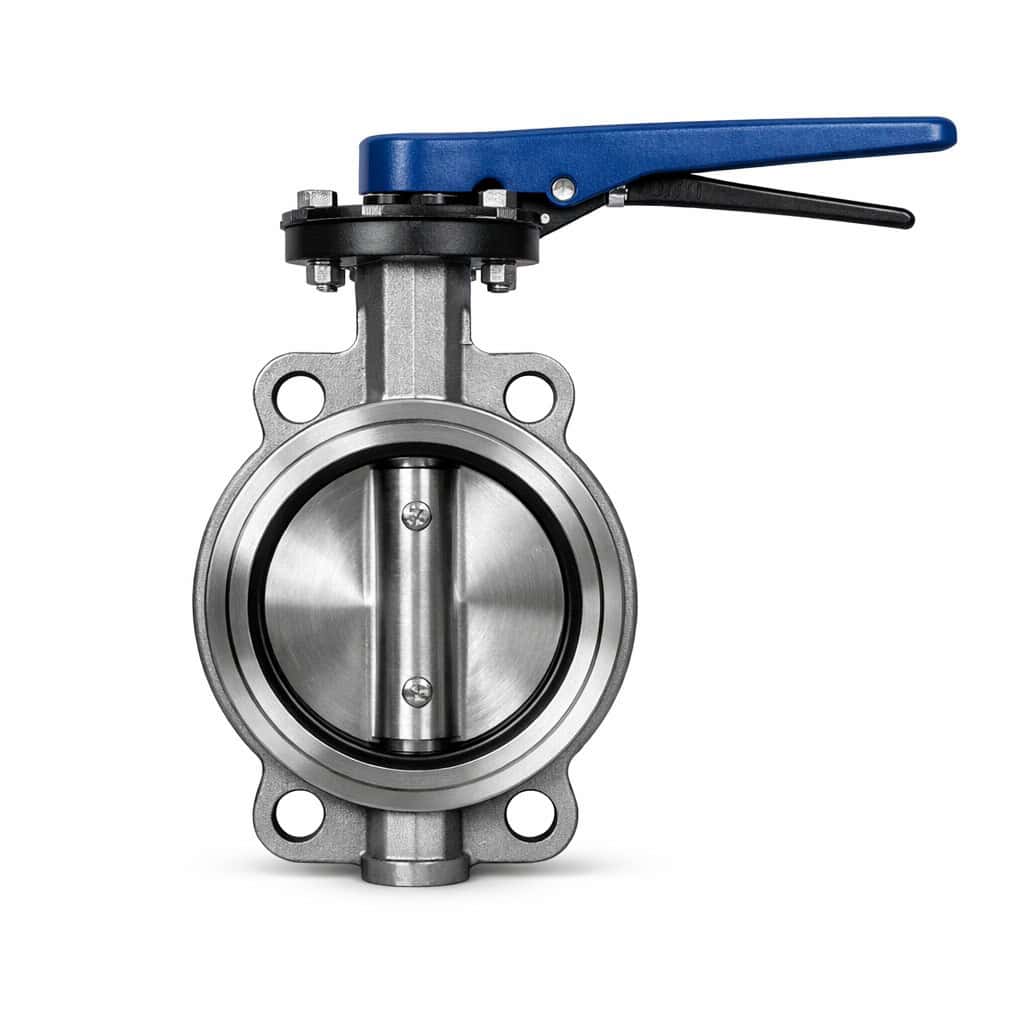

Industrial Wafer Butterfly Valve Supplier
A wafer butterfly valve is a compact quarter-turn valve designed to regulate or isolate flow in pipeline systems. Installed between two flanges, it is lightweight, space-saving, and cost-effective, making it one of the most widely used butterfly valve types in water treatment, HVAC, chemical processing, and general industrial applications.
As a professional wafer butterfly valve manufacturer, Wenzhou Zoncic Machinery Technology Co., Ltd supplies industrial wafer butterfly valves in ductile iron, carbon steel, stainless steel, and other materials according to different pressure ratings, seat materials, and working conditions. Our valves are designed for reliable shut-off, long service life, and efficient operation in a wide range of media and environments.
- ✔ Compact wafer design for space-saving installation
- ✔ Quick quarter-turn operation for efficient flow control
- ✔ Available in ductile iron, carbon steel, and stainless steel
- ✔ Suitable for water treatment, HVAC, chemical, and industrial pipeline systems
Key Features of Wafer Butterfly Valves
Designed for compact installation, easy operation, and reliable flow control in industrial pipeline systems.
Compact Design
Installed between flanges, wafer butterfly valves save installation space and reduce overall pipeline weight.
Easy Operation
Quarter-turn operation allows fast opening and closing with lever, gearbox, electric, or pneumatic actuation.
Reliable Sealing
Soft seat or metal seat designs provide dependable shut-off performance under different working conditions.
Wide Material Options
Available in ductile iron, carbon steel, stainless steel, and special materials for various media and industries.
Cost-Effective Solution
Compared with many other valve types, wafer butterfly valves offer excellent performance with lower installation and maintenance costs.
Versatile Applications
Widely used in water treatment, HVAC, chemical processing, food industry, and general pipeline systems.
Wafer Butterfly Valve Technical Specifications
Our wafer butterfly valves are manufactured to meet international standards and project requirements.
| Item | Description |
|---|---|
| Product Name | Wafer Butterfly Valve |
| Size Range | DN50 – DN1200 |
| Pressure Rating | PN10 / PN16 / ANSI 150LB |
| Body Material | Ductile Iron / Carbon Steel / Stainless Steel |
| Disc Material | DI / WCB / CF8 / CF8M / Aluminum Bronze |
| Seat Material | EPDM / NBR / PTFE / Viton / Metal Seat |
| Operation | Lever / Gear / Pneumatic / Electric |
| Connection Type | Wafer Type |
| Design Standard | API 609 / EN 593 / MSS SP-67 |
| Inspection Standard | API 598 / EN 12266 |
| Applicable Media | Water / Air / Gas / Oil / Chemical Media |
| Temperature Range | According to seat material |
Main Parts and Materials
Material selection can be customized according to media type, pressure, temperature, and project requirements.
| Part Name | Material Option |
|---|---|
| Body | Ductile Iron / WCB / CF8 / CF8M |
| Disc | Ductile Iron / Stainless Steel / Aluminum Bronze / WCB |
| Stem | SS410 / SS420 / SS304 / SS316 |
| Seat | EPDM / NBR / PTFE / Viton / Metal Seat |
| Bushing | PTFE / Bronze |
| O-Ring | NBR / EPDM / Viton |
| Lever / Gearbox | Carbon Steel / Cast Iron / Aluminum |
Wafer Butterfly Valve Applications
Wafer butterfly valves are widely used in compact pipeline systems requiring efficient shut-off and flow regulation.
Water Treatment
Used in clean water, wastewater, filtration, and desalination systems for isolation and regulation.
HVAC Systems
Suitable for chilled water, cooling water, and air handling pipeline control in building systems.
Chemical Processing
Applicable for chemical transfer systems with proper material and seat selection.
Food and Beverage
Available in suitable materials for non-corrosive fluid handling and hygienic process applications.
Oil & Gas
Used in auxiliary lines and low to medium pressure process systems for efficient shut-off control.
General Industrial Pipelines
Ideal for large diameter flow isolation and regulation with compact installation requirements.
Quality Assurance, Testing, Packing & Delivery
Every wafer butterfly valve is tested before delivery to ensure sealing integrity, dimensional accuracy, and reliable operation.

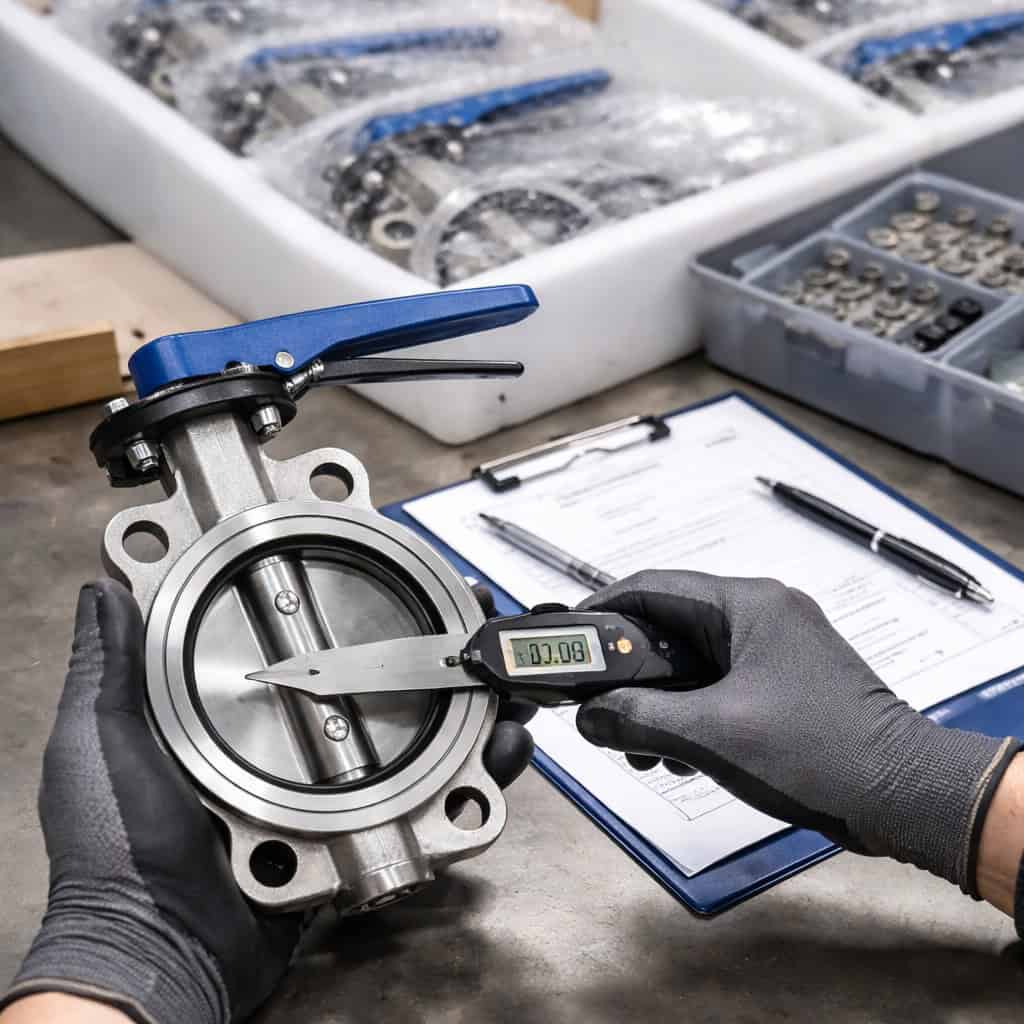

Inspection & Testing
- Shell Pressure Test
- Seat Leakage Test
- Visual Inspection
- Dimensional Inspection
- Material Verification
- Coating and Surface Check

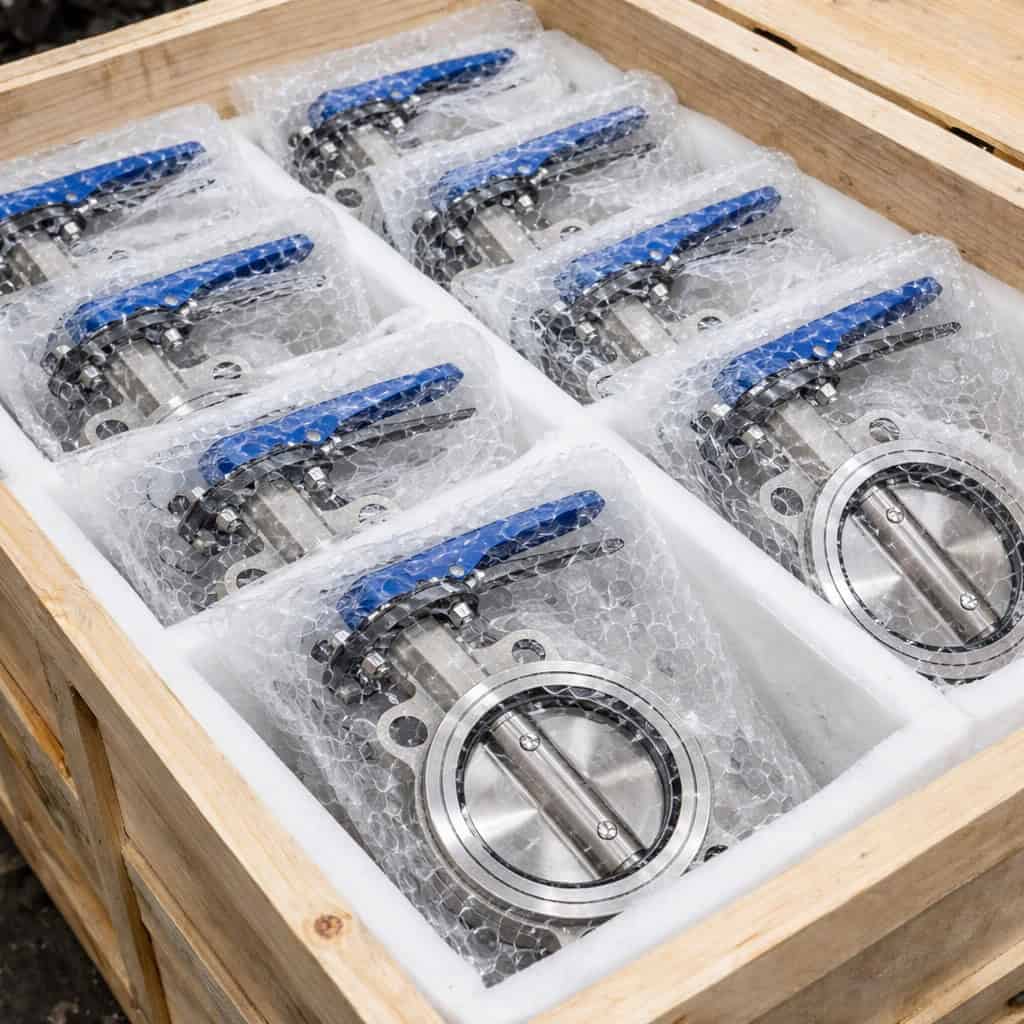

Packing & Delivery
- Export standard plywood or carton packing
- Anti-rust protection for machined parts
- Clear product marking and traceability labels
- Suitable for sea freight and land transport
- Fast delivery for standard and custom orders
- OEM brand marking and packing support available
Why Choose Our Wafer Butterfly Valve
We supply reliable wafer butterfly valve solutions with stable quality, flexible material options, and professional industrial service.
Professional Manufacturer
Years of experience in industrial valve manufacturing for global export markets and project supply.
Stable Quality
Strict inspection and testing procedures ensure dependable sealing and operating performance.
Flexible Material Selection
Different body, disc, and seat combinations are available for various media and working conditions.
OEM & Fast Delivery
Support for OEM branding, customized marking, and efficient production for standard and project orders.
Frequently Asked Questions About Wafer Butterfly Valves
This FAQ section improves user experience and supports long-tail SEO ranking for industrial buyers.
Wafer Butterfly Valve Manufacturer for Compact Industrial Flow Control Applications
If you are looking for a reliable wafer butterfly valve manufacturer, ZONCIC can provide high quality industrial wafer butterfly valves for a wide range of flow control applications. Our wafer type butterfly valves are widely used in water treatment, HVAC systems, chemical processing, food industry, and general industrial pipeline systems.
We can supply ductile iron wafer butterfly valves, stainless steel wafer butterfly valves, and customized valves in special materials according to project requirements. Manufactured to international standards such as API 609, EN 593, and MSS SP-67, our products are designed for compact installation, reliable shut-off, easy operation, and long service life in industrial systems.
Request Your Wafer Butterfly Valve Quote Today
Contact ZONCIC for wafer butterfly valve pricing, technical support, and customized industrial valve solutions. We are ready to support your project with reliable quality and professional service.
