Y Strainer Manufacturer
Zoncic supplies durable industrial Y strainers designed to remove rust, welding slag, scale and solid particles from pipeline systems. Our Y type strainers help protect pumps, valves, flow meters and downstream equipment in oil & gas, petrochemical, power generation, water treatment and general industrial service.
What Is a Y Strainer?
A Y strainer is a compact mechanical filtration device installed in a pipeline to remove debris, rust, weld slag, scale and other solid particles from flowing media. The Y-shaped body design allows contaminants to be collected in a removable screen chamber while the process line continues to operate normally.
Industrial Y strainers are widely used to protect pumps, control valves, traps, meters and other important downstream equipment from damage, blockage and premature wear. They are commonly selected for oil, gas, steam, water and chemical service where reliable inline filtration and easy maintenance are required.
Key Features of Y Strainers
Compact Structure
The Y type body design saves installation space and is suitable for many industrial pipeline systems.
Efficient Particle Removal
Effectively captures rust, scale, welding residue and solid contaminants before they reach sensitive equipment.
Wide Application Range
Suitable for water, steam, oil, gas and chemical fluids under different service conditions.
Custom Screen Opening
Available with perforated screens, mesh-lined screens and customized opening sizes based on filtration requirements.
Easy Maintenance
The screen can be removed and cleaned conveniently during routine pipeline maintenance.
Multiple Material Options
Available in carbon steel, stainless steel and alloy steel for pressure, temperature and corrosion demands.
Y Strainer Types and End Connections
We supply industrial Y strainers in different body materials, connection styles and pressure ratings to match project specifications and plant operating conditions.

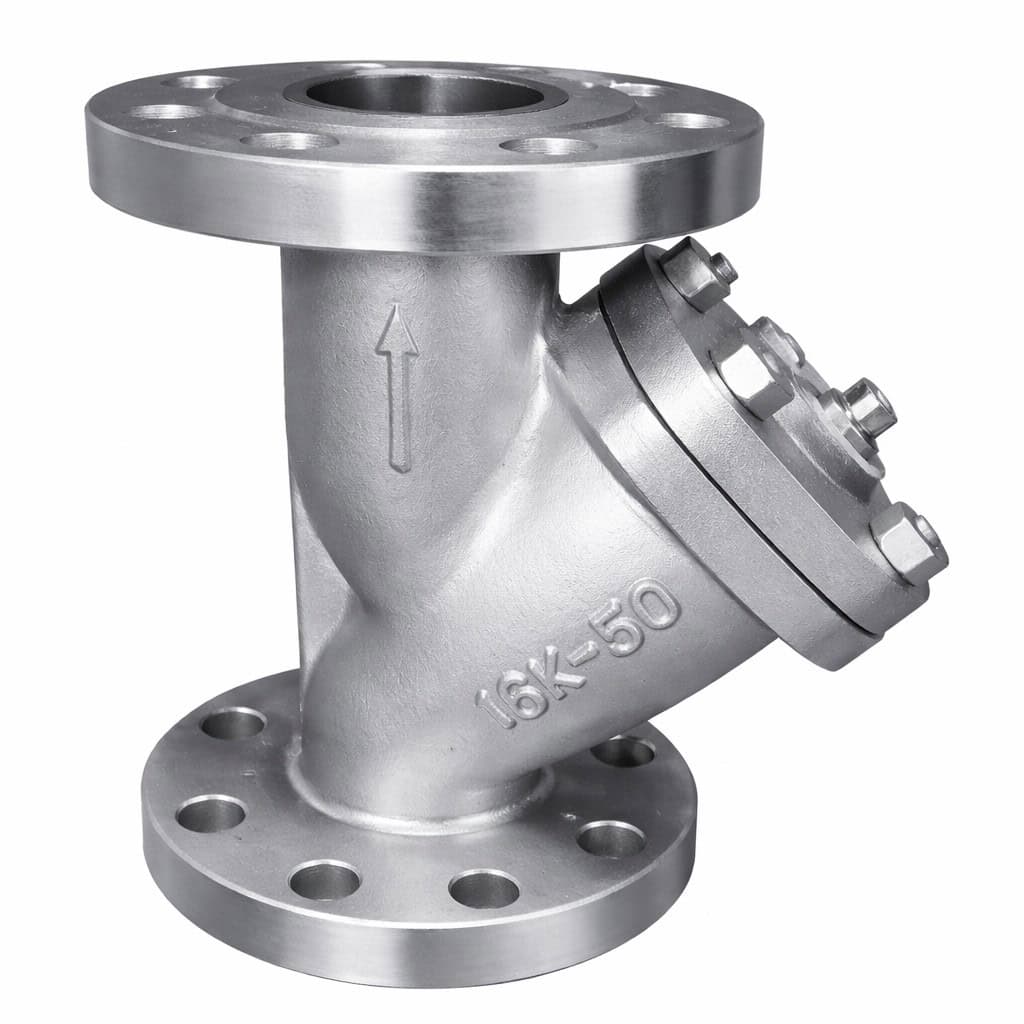

Flanged Y Strainer
Widely used in industrial process pipelines, easy to install and maintain, suitable for Class 150, 300 and 600 applications.
Threaded Y Strainer
Compact connection style for smaller size piping systems and general industrial utility service.
Butt Weld Y Strainer
Provides strong permanent connection for higher pressure or process piping systems requiring welded joints.
Stainless Steel Y Strainer
Suitable for corrosive media, chemical process lines, food plants and applications requiring corrosion resistance.
Technical Specifications
Our industrial Y strainers are available in standard and custom configurations for different pipeline filtration requirements.
| Item | Description |
|---|---|
| Product Name | Y Strainer |
| Size Range | 1/2” – 24” |
| Pressure Rating | Class 150 / 300 / 600 |
| Body Material | WCB, CF8, CF8M, A105, F304, F316, Alloy Steel |
| Screen Material | SS304 / SS316 |
| End Connection | Flanged / Threaded / Butt Weld / Socket Weld |
| Applicable Media | Water, Steam, Oil, Gas, Chemical Fluids |
| Gasket Material | Graphite / PTFE / Spiral Wound Gasket |
| Screen Opening | Customizable according to operating condition |
| Installation | Horizontal or vertical installation depending on flow direction and service condition |
Main Parts and Materials
| Part | Material Options |
|---|---|
| Body | WCB, CF8, CF8M, A105, F304, F316 |
| Cover / Plug Cap | WCB, CF8, CF8M, A105, F304, F316 |
| Screen | SS304, SS316 |
| Gasket | Graphite, PTFE, Spiral Wound |
| Drain Plug | Carbon Steel, Stainless Steel |
| Bolts / Nuts | B7 / 2H, B8, B8M |
Main Dimensions
The following table shows common reference dimensions for flanged Y strainers. Custom dimensions can be supplied according to pressure class, standard and project requirement.
| Size | Class | L (mm) | H (mm) | Screen Area |
|---|---|---|---|---|
| 2” | 150LB | 203 | 145 | Standard |
| 3” | 150LB | 241 | 180 | Standard |
| 4” | 150LB | 292 | 215 | Standard |
| 6” | 150LB | 406 | 285 | Standard |
| 8” | 150LB | 495 | 355 | Standard |
Manufacturing Standards and Quality Control
Manufacturing Standards
- API / ASME / DIN / JIS / GOST standards upon request
- Available for cast steel, forged steel and stainless steel construction
- Pressure ratings and connection styles can be matched to project needs
- Suitable for industrial liquid, gas and steam systems
- Custom technical support for export and OEM projects

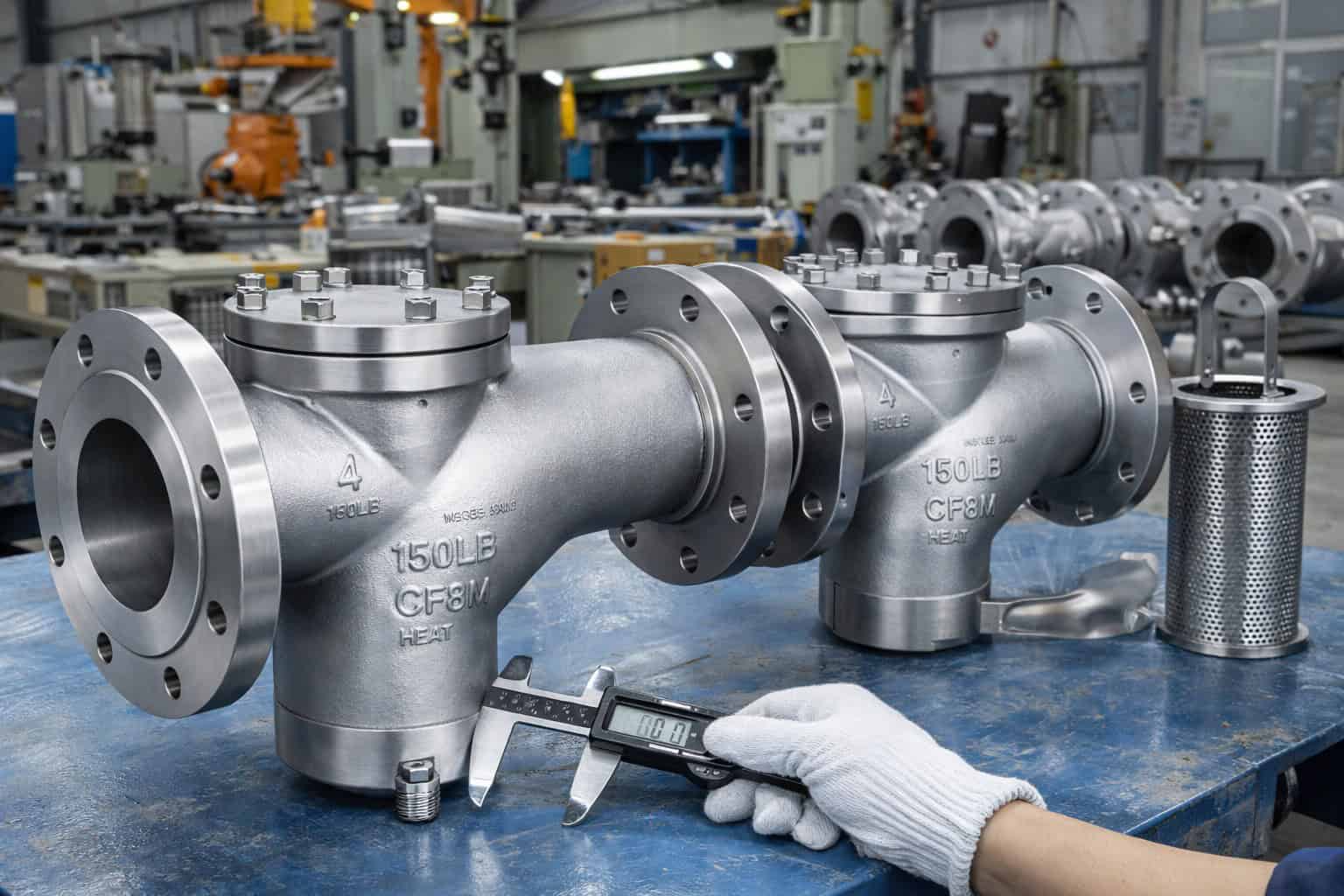

Quality Control
- Raw material verification before machining and assembly
- Dimensional inspection of body, cover and screen parts
- Screen opening and structural inspection
- Visual inspection of finished products
- Marking and traceability verification before delivery
- Pressure and sealing inspection where applicable
Packing and Delivery
Inspection Before Shipment
- Appearance inspection before packing
- Surface cleaning and anti-rust treatment
- Screen protection to avoid transport damage
- Product marking and quantity checking
Export Packing
- Export plywood case or wooden box packing
- Suitable for sea shipment and long-distance transport
- Clear label for product identification
- OEM labels and customized packing available
Applications of Y Strainers
Y strainers are widely used in industrial systems that require compact inline filtration and reliable protection for process equipment.
Oil & Gas
Used to protect pumps, valves and instruments from rust, welding debris and solid particles in process lines.
Petrochemical Plants
Installed before sensitive equipment to improve line cleanliness and operational stability.
Steam Systems
Commonly used ahead of steam traps and control valves to reduce blockage and improve service life.
Water Treatment
Helps remove solid particles in utility and process water lines before pumps and meters.
Chemical Processing
Available in stainless steel for corrosive media and demanding chemical service conditions.
General Industrial Pipelines
Suitable for liquid, gas and utility piping systems requiring economical mechanical filtration.
Why Choose Our Y Strainers
Zoncic supplies industrial Y strainers with stable quality, flexible material selection and export-oriented support. We serve distributors, contractors and end users who need dependable inline filtration products with clear specifications, fast quotation and practical delivery support.
Stable Production Quality
Controlled production and inspection procedures help ensure reliable consistency for every batch.
Competitive Factory Supply
Professional manufacturing support for wholesale, distribution and industrial project procurement.
Fast Technical Response
Quick support for material selection, screen options, size confirmation and quotation requirements.
FAQ About Y Strainers
1. What is a Y strainer used for?
A Y strainer is used to remove debris and solid particles from a pipeline in order to protect pumps, valves, steam traps, meters and other downstream equipment.
2. What media can a Y strainer handle?
Y strainers can be used for water, steam, oil, gas and many chemical fluids depending on the selected body material, gasket and screen design.
3. What is the difference between a Y strainer and a basket strainer?
A Y strainer is more compact and suitable for limited installation space, while a basket strainer usually has higher dirt holding capacity and easier access for cleaning.
4. Can you customize the mesh or perforation size?
Yes. We can provide customized screen opening size and mesh options according to the actual filtration requirement.
5. Do you supply stainless steel Y strainers?
Yes. Stainless steel Y strainers in CF8, CF8M, F304 and F316 are available for corrosive or sanitary-related applications.
6. What information is needed for quotation?
Please send size, pressure rating, material, end connection, medium, temperature, screen requirement and quantity for a faster quotation.
