Threaded Ball Valve Manufacturer
ZONCIC supplies 1-piece, 2-piece and 3-piece threaded ball valves with NPT, BSP, BSPT and customized screwed ends for compact installation, reliable shut-off and OEM industrial valve supply.
Industrial Threaded Ball Valves for Compact Pipeline Installation
As a threaded ball valve manufacturer, ZONCIC provides screwed end ball valves for small and medium bore pipeline systems where compact installation, quick assembly and reliable shut-off performance are required. Compared with flanged valves, threaded ball valves are easier to install in limited spaces and are widely used in water treatment, chemical dosing, compressed air, oil utility lines and general industrial pipelines.
ZONCIC threaded ball valves can be supplied with NPT, BSP, BSPT, female threaded and customized end connections. Different body structures, seat materials and pressure ratings are available according to medium, temperature, working pressure and project requirements.
Common Buying Requirements
- Thread type: NPT, BSP, BSPT or customized thread
- Body design: 1-piece, 2-piece or 3-piece construction
- Material: WCB, CF8, CF8M, SS304, SS316 or brass
- Seat: PTFE, RPTFE or PPL for different service conditions
- Operation: lever handle, lockable handle or actuator option
Threaded Ball Valve Types We Supply
ZONCIC supplies threaded ball valves in different body structures and thread standards to match industrial pipeline installation, maintenance and OEM supply requirements.
What Is A Threaded Ball Valve?
A threaded ball valve is a compact shut-off valve designed with screwed end connections instead of flanges. Unlike flanged ball valves used in large diameter systems, threaded ball valves are widely applied in small and medium bore pipelines where installation space is limited and fast assembly is preferred.
As a professional threaded ball valve manufacturer, ZONCIC supplies threaded ball valves with NPT, BSP and BSPT ends for industrial pipeline systems requiring reliable sealing, easy maintenance and flexible installation. These valves are commonly used in water systems, compressed air, chemical dosing, oil utility lines and OEM skid equipment.
Threaded Ball Valve Technical Specifications
ZONCIC threaded ball valves are available in multiple body configurations, thread standards and material options to match industrial shut-off applications.
| Item | Specification |
|---|---|
| Valve Type | Threaded Ball Valve / Screwed Ball Valve |
| Size Range | 1/4″ – 4″ |
| Pressure Rating | 1000 WOG / 2000 WOG / Class 150–600 Equivalent |
| Body Design | 1PC / 2PC / 3PC |
| Thread Standard | NPT / BSP / BSPT / Female Thread / Male Thread |
| Bore Type | Full Port / Reduced Port |
| Body Material | WCB / CF8 / CF8M / Brass / Alloy Steel |
| Ball Material | SS304 / SS316 / Chrome Plated Brass |
| Seat Material | PTFE / RPTFE / PPL |
| Stem Material | SS304 / SS316 |
| Operation | Lever Handle / Lockable Handle / Pneumatic / Electric Optional |
| Testing Standard | API 598 / EN 12266 / Project Requirement |
Material Options for Threaded Ball Valves
Different threaded ball valve materials are available according to service medium, corrosion resistance, operating pressure and working temperature.
| Material | Suitable Service |
|---|---|
| WCB / Carbon Steel | Oil, gas, utility and general industrial pipeline service. |
| CF8 / SS304 | Water, light chemical and corrosion-resistant environments. |
| CF8M / SS316 | Chemical, marine and higher corrosion applications. |
| Brass | Water, compressed air and utility pipeline systems. |
| PTFE Seat | General industrial sealing service. |
| RPTFE Seat | Higher pressure and better wear resistance. |
| PPL Seat | Higher temperature threaded valve applications. |
Why Choose ZONCIC as Your Threaded Ball Valve Manufacturer
ZONCIC supplies industrial threaded ball valves for distributors, OEM projects and industrial pipeline systems with reliable quality, export experience and flexible customization support.
Multiple Thread Standards
NPT, BSP, BSPT, female threaded and customized screwed ends are available for different regional piping systems and project standards.
Full Industrial Material Options
WCB, CF8, CF8M, SS304, SS316, brass and customized materials for oil, water, compressed air and corrosion-resistant applications.
OEM and Bulk Supply Support
OEM marking, laser engraving, neutral packing and export carton or plywood packing are supported for batch industrial orders.
Strict Quality Inspection
Thread inspection, shell pressure testing, sealing performance testing and marking verification before shipment.
Flexible Valve Configurations
1-piece, 2-piece and 3-piece threaded ball valves with full port or reduced port designs available.
Export Experience
Reliable supply support for distributors, contractors, industrial projects and OEM industrial valve buyers.
Frequently Asked Questions
Common questions about threaded ball valves, screwed end connection standards and industrial applications.
What is a threaded ball valve used for?
Threaded ball valves are commonly used for water systems, compressed air, chemical dosing, oil utility lines and small bore industrial shut-off applications where compact installation and easy maintenance are required.

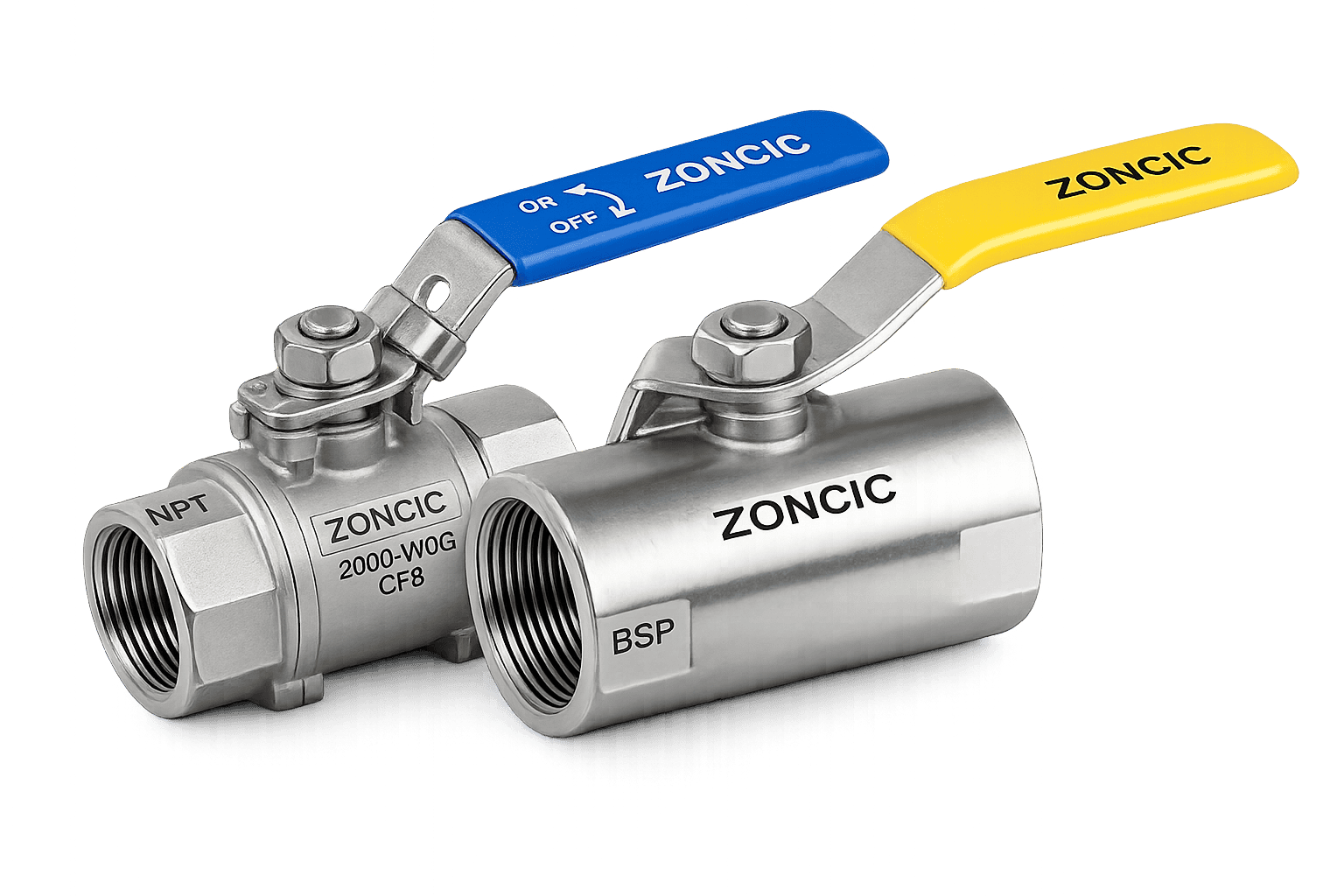

What is the difference between NPT and BSP threaded ball valves?
NPT threaded ball valves are mainly used in North America, while BSP and BSPT thread standards are commonly used in Europe, Asia and Middle East industrial projects. The correct thread type should match the pipeline standard.
Can ZONCIC supply stainless steel threaded ball valves?
Yes. Stainless steel threaded ball valves are available in CF8, CF8M, SS304 and SS316 for corrosion-resistant and chemical service applications.
Are threaded ball valves suitable for high pressure?
Threaded ball valves can be used for medium to high pressure small bore systems. Suitable pressure rating depends on valve size, material, seat type, temperature and service condition.
Can you provide OEM threaded ball valves?
Yes. ZONCIC supports OEM marking, laser engraving, customized packaging, neutral packing and export documentation for threaded ball valve projects.
Explore More Ball Valve Solutions
Thread Standards & Industry References
Learn more about industrial valve engineering, pipe thread standards and industrial valve specifications for threaded ball valve applications.
Request Threaded Ball Valve Quotation
Send us your valve size, pressure rating, material, thread standard, quantity and application. ZONCIC will recommend a suitable threaded ball valve solution for your industrial project.
