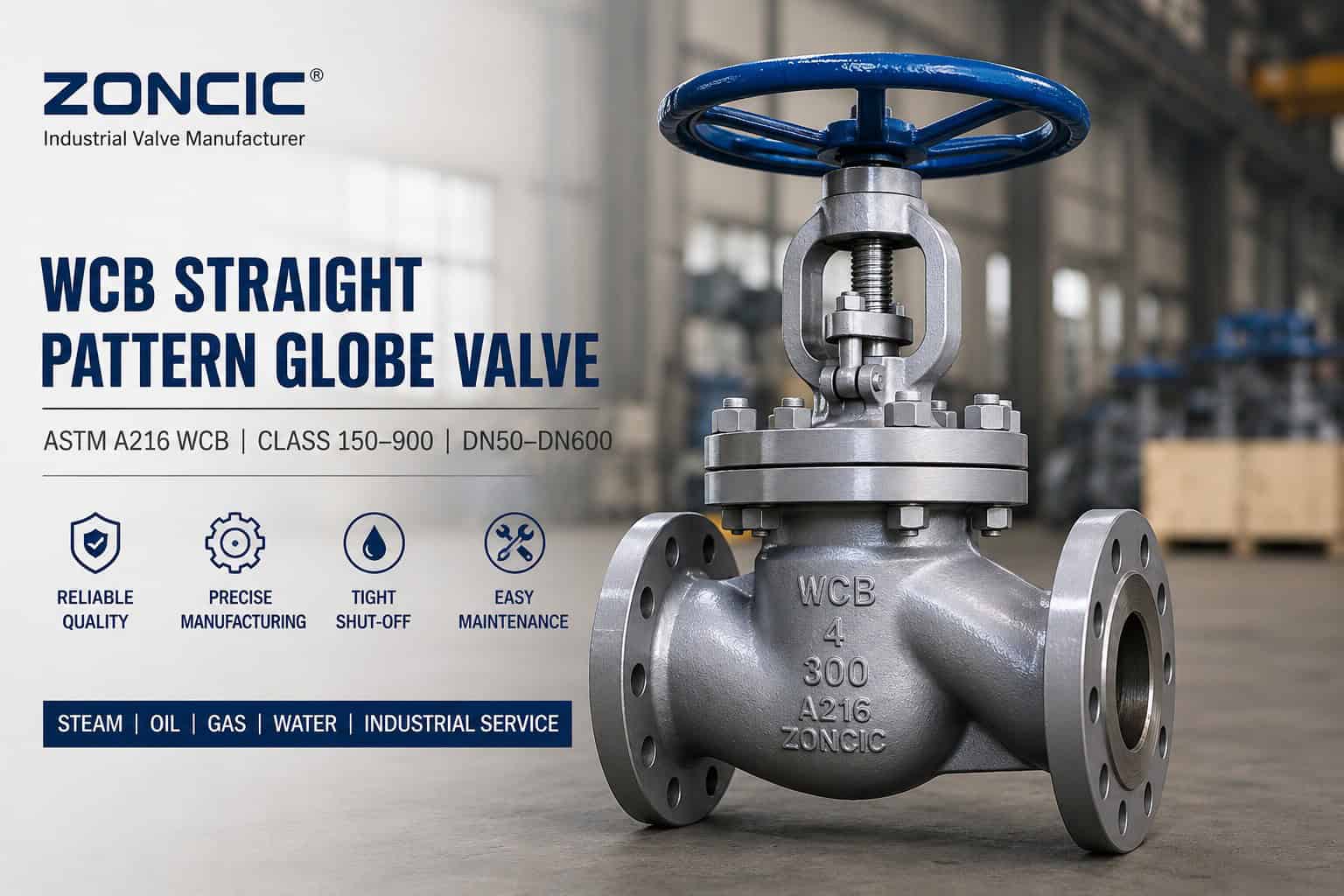

WCB Straight Pattern Globe Valve Manufacturer
ZONCIC is a WCB straight pattern globe valve manufacturer supplying ASTM A216 WCB carbon steel globe valves for oil, gas, steam, water, refinery utilities, power plant auxiliary lines and general industrial pipeline service.
This page focuses on WCB material selection, casting quality, wall thickness, trim configuration, pressure class matching and inspection requirements for buyers who need a practical carbon steel globe valve solution.
WCB Straight Pattern Globe Valve for Carbon Steel Pipeline Projects
A WCB straight pattern globe valve is often selected when a project needs a carbon steel valve body, standard flanged connection, reliable shut-off and practical throttling performance. For many industrial pipelines, ASTM A216 WCB offers a strong balance between mechanical strength, availability and project cost control.
Unlike a general globe valve page, this WCB straight pattern globe valve manufacturer page focuses on material-related decisions. Buyers usually need to confirm whether WCB is suitable for their media, temperature, pressure rating, flange standard and inspection requirement before placing an order.
ZONCIC supports WCB globe valve supply with body material certificates, dimensional inspection, hydrostatic testing, seat leakage testing, export packing and project documentation. For corrosive media, customers can compare with stainless steel globe valve solutions.
Why ASTM A216 WCB Is Widely Used for Globe Valves
ASTM A216 WCB is a common cast carbon steel material for pressure-containing valve bodies. It is widely used in industrial globe valves because it is suitable for many non-corrosive and mildly corrosive services where stainless steel is not necessary.
Carbon Steel Valve Body
WCB is suitable for many steam, water, oil, gas and utility pipeline systems where cast carbon steel construction is acceptable.
Project Cost Efficiency
Compared with stainless steel or alloy steel, WCB usually provides a more economical choice for standard industrial service.
Good Availability
WCB globe valve castings, trims, bolting and flanged connections are widely available for ASME pipeline projects.
Industrial Compatibility
ASTM A216 WCB is commonly matched with carbon steel piping, ASME flanges and API testing requirements.
Common Problems When Buying WCB Straight Pattern Globe Valves
For industrial buyers, the lowest price is not always the safest choice. A WCB straight pattern globe valve may look similar from the outside, but differences in casting weight, wall thickness, trim material, machining accuracy and test procedure can create major performance differences.
Lightweight Valve Body
Some low-cost valves reduce body weight, which may affect strength margin and long-term reliability in pressure service.
Unclear Trim Material
Disc, seat and stem material must be confirmed because poor trim selection can cause leakage, galling or premature wear.
Weak Seat Processing
Seat ring machining and sealing surface finish directly affect shut-off performance and API 598 leakage testing.
Incomplete Documentation
Industrial projects often need material certificates, pressure test reports, packing lists and clear valve marking.
How to Identify a Reliable WCB Straight Pattern Globe Valve Manufacturer
A reliable WCB straight pattern globe valve manufacturer should not only quote by size and pressure class. The supplier should also confirm body material standard, pressure-temperature rating, trim configuration, flange standard, testing procedure and export documentation.
| Check Item | Why It Matters | Recommended Confirmation |
|---|---|---|
| Body Material | Confirms carbon steel grade and casting standard. | ASTM A216 WCB with material certificate. |
| Design Standard | Ensures valve design matches industrial pressure service. | BS 1873 / ASME B16.34. |
| Trim Material | Affects seat life, corrosion resistance and sealing quality. | 13Cr / F6a / SS304 / SS316 / Stellite optional. |
| Testing | Verifies shell strength and seat leakage performance. | API 598 hydrostatic and seat test. |
| Documentation | Supports project approval, customs and site inspection. | MTC, test report, packing list and marking photo. |
Technical Reference for WCB Globe Valve Selection
WCB straight pattern globe valve selection should be based on working pressure, temperature, media, material compatibility, flange standard and testing requirement. Buyers can review ZONCIC valve standards, the Wermac globe valve guide, and general engineering reference from Engineering Toolbox.
WCB Straight Pattern Globe Valve Technical Specifications
As a WCB straight pattern globe valve manufacturer, ZONCIC recommends confirming working media, pressure class, body material, trim material, flange standard and testing requirement before final valve selection. The following specification is based on common ASTM A216 WCB globe valve construction for industrial pressure service.
| Item | Specification |
|---|---|
| Valve Type | WCB Straight Pattern Globe Valve / Carbon Steel Z Pattern Globe Valve |
| Size Range | 2″–24″ / DN50–DN600 |
| Pressure Class | Class 150 / 300 / 600 / 900 (Class 1500 Optional) |
| Body Material | ASTM A216 WCB Carbon Steel |
| Bonnet Material | ASTM A216 WCB |
| Disc / Trim Material | 13Cr / F6a / SS304 / SS316 / Stellite Overlay Optional |
| Stem Material | ASTM A182 F6a / 13Cr |
| Packing | Flexible Graphite |
| Bonnet Type | Bolted Bonnet / Pressure Seal Bonnet Optional |
| End Connection | RF Flanged / RTJ Flanged / Butt Weld Optional |
| Operation | Handwheel / Gear Operator / Electric Actuator Optional |
| Design Standard | BS 1873 / ASME B16.34 |
| Face to Face | ASME B16.10 |
| Flange Standard | ASME B16.5 |
| Testing Standard | API 598 |
| Temperature Range | -29°C to 425°C |
| Applicable Media | Steam, Oil, Gas, Water, Utility Media |
Main Parts and Materials
The following material configuration is commonly used for WCB straight pattern globe valves in industrial pipeline service. Trim material can be adjusted according to temperature, media and project requirement.
| No. | Part Name | Material |
|---|---|---|
| 1 | Body | ASTM A216 WCB |
| 2 | Bonnet | ASTM A216 WCB |
| 3 | Disc | ASTM A105 + 13Cr |
| 4 | Seat Ring | 13Cr / Stellite Overlay Optional |
| 5 | Stem | ASTM A182 F6a |
| 6 | Packing | Flexible Graphite |
| 7 | Gasket | SS304 + Graphite Spiral Wound Gasket |
| 8 | Stud Bolt | ASTM A193 B7 |
| 9 | Nut | ASTM A194 2H |
| 10 | Handwheel | Ductile Iron |
Reference Dimensions (ASME B16.10)
The following face-to-face dimensions are reference values for WCB straight pattern globe valves based on ASME B16.10. Final dimensions should be confirmed according to approved drawing and project requirement.
| Size | DN | Class 150 | Class 300 | Class 600 |
|---|---|---|---|---|
| 2″ | 50 | 203 mm | 267 mm | 292 mm |
| 3″ | 80 | 241 mm | 318 mm | 356 mm |
| 4″ | 100 | 292 mm | 356 mm | 432 mm |
| 6″ | 150 | 406 mm | 444 mm | 559 mm |
| 8″ | 200 | 495 mm | 559 mm | 660 mm |
| 10″ | 250 | 622 mm | 622 mm | 787 mm |
| 12″ | 300 | 698 mm | 711 mm | 838 mm |
WCB vs Stainless Steel vs Alloy Steel Globe Valve
Material selection is one of the most important decisions when choosing a straight pattern globe valve. The following comparison helps buyers choose the right valve body material.
WCB Straight Pattern Globe Valve Applications
WCB straight pattern globe valves are widely selected for industrial systems where carbon steel body material, practical shut-off performance and standard pressure service are required.
Oil & Gas Utility Pipelines
General hydrocarbon utility systems and non-corrosive media pipeline shut-off applications.
Steam and Condensate Service
Carbon steel steam lines, thermal utility systems and boiler auxiliary piping.
Refinery Utility Systems
Refinery support pipelines requiring standard industrial carbon steel valves.
Power Plant Auxiliary Lines
Steam utility and water service pipelines in thermal and industrial power systems.
Industrial Water Systems
Industrial cooling water and process utility lines requiring shut-off control.
General Process Industry
Pipeline systems requiring economical carbon steel globe valve solutions.
Manufacturing and Quality Control
A reliable WCB straight pattern globe valve manufacturer should focus not only on valve appearance, but also on casting integrity, trim quality, seat machining and pressure testing. ZONCIC follows industrial inspection procedures before shipment.
- Raw Material Verification – ASTM A216 WCB casting material verification before machining.
- Heat Number Traceability – Material heat number tracking for project documentation.
- Wall Thickness Inspection – Dimensional checking to avoid lightweight body risk.
- Seat and Disc Machining – Precision machining to improve shut-off performance.
- Hydrostatic Testing – Shell and seat leakage test according to API 598.
- Optional PMI & Third-Party Inspection – Available for refinery, EPC and industrial projects.
- Final Marking and Inspection – Valve body marking, pressure class and material verification.
Packing and Delivery
Proper export packing is important to protect WCB globe valves during international shipment and site handling.
- Anti-rust treatment before packing
- Protective wrapping for flange face and machined surface
- Export plywood or wooden case packing
- Clear marking for valve size, pressure class and material
- Suitable for sea shipment and container transport
- OEM logo, project tag and documentation support available
WCB Straight Pattern Globe Valve FAQ
Why choose ASTM A216 WCB for globe valves?
ASTM A216 WCB is widely used because it provides practical strength, industrial compatibility and better cost efficiency for many steam, oil, gas and utility services.
Is WCB suitable for steam service?
Yes. WCB globe valves are commonly used in steam systems within suitable temperature limits and trim configuration.
What is the difference between WCB and stainless steel globe valve?
WCB is more economical for standard industrial service, while stainless steel offers higher corrosion resistance for aggressive media.
How can I verify WCB globe valve quality?
Check ASTM material certificate, wall thickness, trim material, hydrostatic test report and manufacturer inspection process.
What information is needed for quotation?
Please provide valve size, pressure class, material, media, temperature, flange standard, operation type and quantity.
